TL-WR810N
300Mbps Wireless N Mini Router
- 159 -

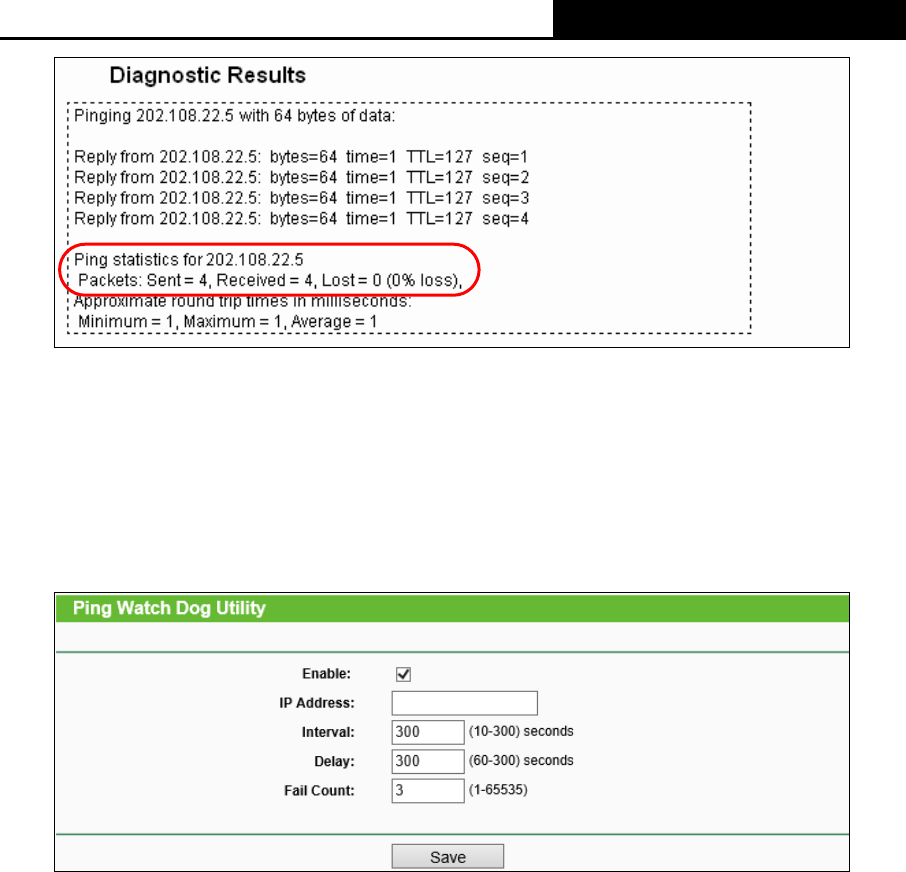

Figure 6-32 Diagnostic Results
Note:
Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping
Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function.
6.9.2 Ping Watch Dog
Choose menu “System Tools
→
Ping Watch Dog”, and then you can see the following screen.
Figure 6-33 Ping Watch Dog Utility
The Ping Watch Dog is dedicated for continuous monitoring of the particular connection to
remote host using the Ping tool. It makes this device continuously ping a user defined IP address
(it can be the internet gateway for example). If it is unable to ping under the user defined
constraints, this device will automatically reboot.
Enable - Turn on/off Ping Watch Dog.
IP Address - The IP address of the target host where the Ping Watch Dog Utility is sending
ping packets.
Interval - Time interval between two ping packets which are sent out continuously.
Delay - Time delay before first ping packet is sent out when this device is restarted.
Fail Count - Upper limit of the ping packet this device can drop continuously. If this value is
overrun, this device will restart automatically.
Be sure to click the Save button to make your settings in operation.
