TL-WR810N
300Mbps Wireless N Mini Router
- 207 -
5. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. Then you
should enter the following parameters (Figure 8-13):

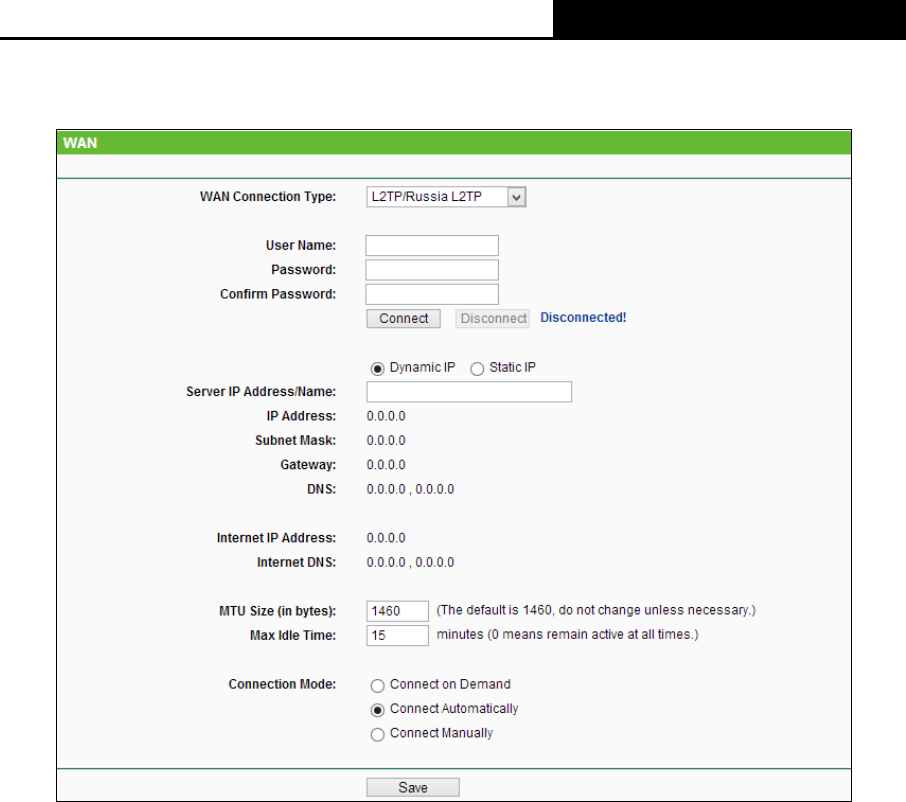

Figure 8-13 WAN - L2TP/Russia L2TP
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
Confirm Password - Enter again the Password provided by your ISP to ensure the
password you entered is correct.
Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect
button to connect immediately. Click the Disconnect button to disconnect immediately.
Server IP Address/Name - Enter server IP address or domain name provided by your
ISP.
IP Address - Enter the IP address used for dial-up. (Only can be configured when Static
IP is selected)
Subnet Mask - Enter the subnet mask provided by your ISP. (Only can be configured
when Static IP is selected)
Gateway - Enter gateway provided by your ISP. (Only can be configured when Static IP
is selected)
DNS - Enter DNS server provided by your ISP. (Only can be configured when Static IP is
selected)
