User's Manual

TL-WR810N
300Mbps Wireless N Mini Router
- 219 -
broadcast and multicast messages. When the Router has buffered broadcast or multicast
messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can
specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates
the DTIM Interval is the same as Beacon Interval.
 Enable WMM - WMM function can guarantee the packets with high-priority messages being
transmitted preferentially. It is strongly recommended enabled.
 Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time
.
 Enable AP Isolation - This function isolate all connected wireless stations so that wireless
stations cannot access each other through WLAN. This function will be disabled if
WDS/Bridge is enabled.

Note:
If you are not familiar with the setting items in this page, it's strongly recommended to keep the
provided default values; otherwise it may result in lower wireless network performance.
8.7.5 Wireless Statistics
Choose menu “Wireless
→
Wireless Statistics”, and then you can see the MAC Address,
Current Status, Received Packets and Sent Packets for each connected wireless station.

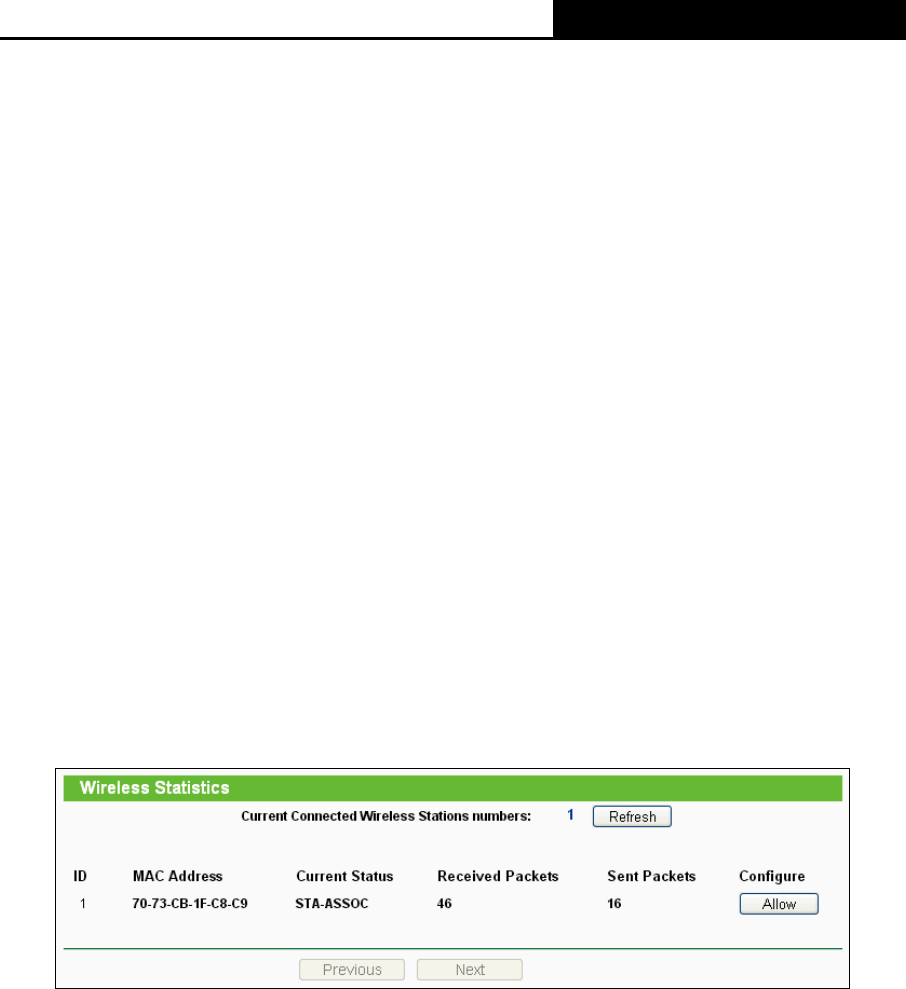

Figure 8-24 Wireless Statistics

MAC Address - The connected wireless station's MAC address
 Current Status - The connected wireless station's running status, one of STA-AUTH /
STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN /
Disconnected
 Received Packets - Packets received by the station
 Sent Packets - Packets sent by the station.
 Configure - The button is used for loading the item to the Wireless MAC Filtering list.
• Allow - If the Wireless MAC Filtering function enable, allow the station to access.
• Deny - If the Wireless MAC Filtering function enable, deny the station to access.
