TL-WR810N
300Mbps Wireless N Mini Router
- 8 -

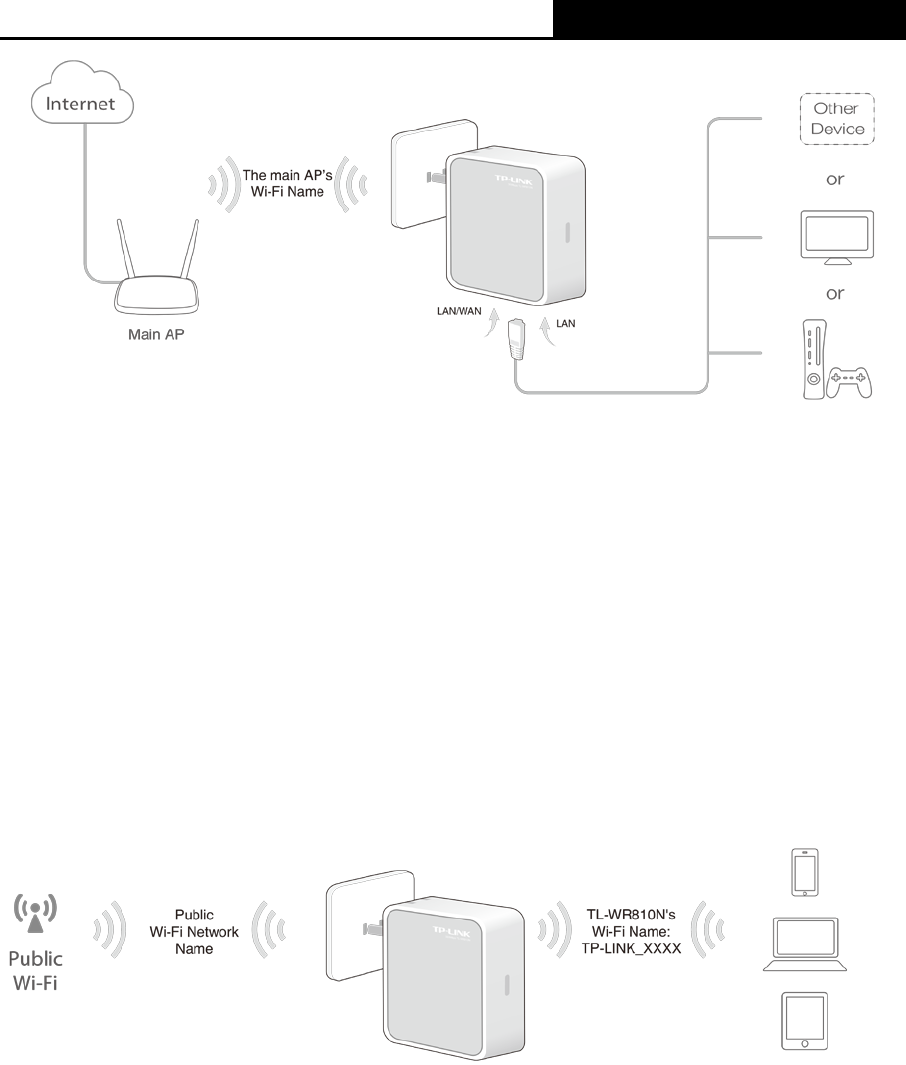

Figure 2-4 Hardware Installation of the TL-WR810N in Client Mode
1. Plug the router into an electrical outlet within the signal range of your main AP.
2. Connect your device to the router wirelessly or via an Ethernet cable. The Wi-Fi network
name and password are on the router’s label.
2.3.5 Hotspot Router Mode
In Hotspot Router mode, TL-WR810N enables multiple users to share Internet connection from
WISP.
In this mode, the LAN port devices share the same IP from WISP through Wireless port. While
connecting to WISP, the Wireless port works as a WAN port at Hotspot Router mode. The
Ethernet port acts as a LAN port.
Figure 2-5 Hardware Installation of the TL-WR810N in Hotspot Router Mode
1. Plug the router into an electrical outlet within the range of the Public Wi-Fi.
2. Connect your device to the router wirelessly or via an Ethernet cable. The Wi-Fi network
name and password are on the router’s label.
