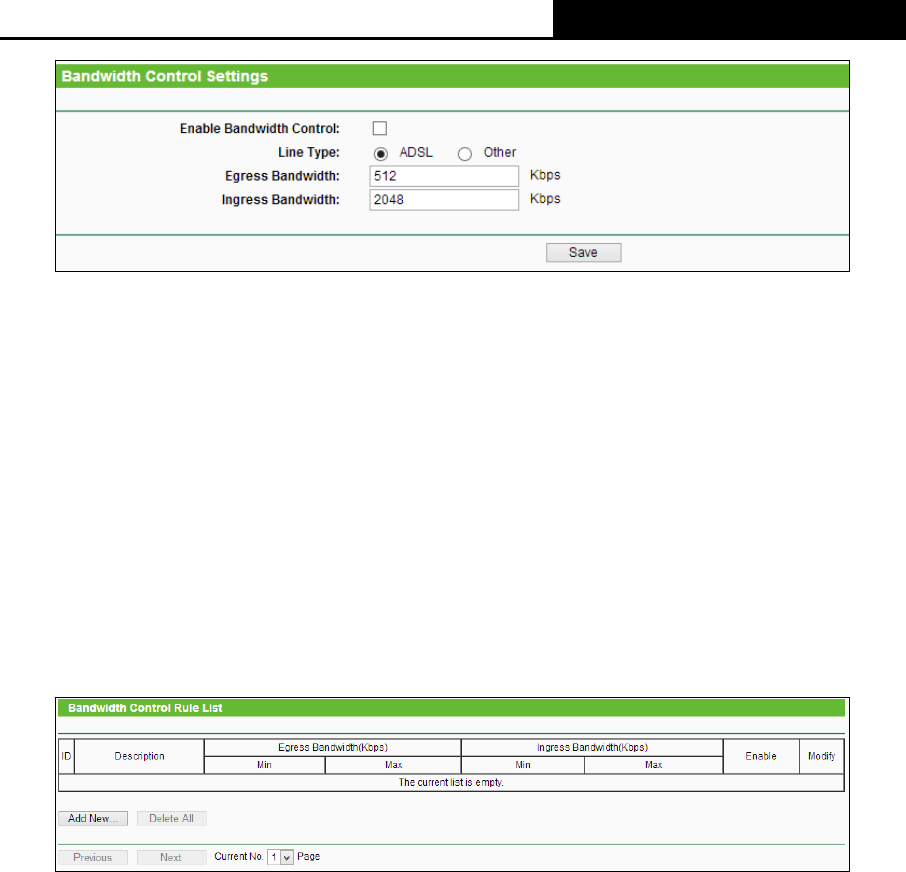

Figure 8-74 Bandwidth Control Settings
 Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take
effect.
 Line Type - Select the right type for you network connection. If you don’t know how to choose,
please ask your ISP for the information.
 Egress Bandwidth - The upload speed through the WAN port
.
 Ingress Bandwidth - The download speed through the WAN port.
8.15.2 Rule List
Choose menu “Bandwidth Control
→
Rule List”, you can view and configure the Bandwidth
Control rules in the screen below.
Figure 8-75 Bandwidth Control Rule List
 Description - This is the information about the rules such as address range.
 Egress Bandwidth - This field displays the max and mix upload bandwidth through the WAN
port, the default is 0.
 Ingress Bandwidth - This field displays the max and mix download bandwidth through the
WAN port, the default is 0.
 Enable - This displays the status of the rule.
 Modify - Click Modify to edit the rule. Click Delete to delete the rule.
To add/modify a Bandwidth Control rule, follow the steps below.
Step 1: Click Add New… shown in Figure 8-75, you will see a new screen shown in Figure 8-76.
Step 2: Enter the information like the screen shown below.
