There are four submenus under the Access Restriction menu as shown in Figure 4-53: Rule,
Host, Target and Schedule. Click any of them, and you will be able to configure the
corresponding function.
4.13.1 Rule
Choose menu “Access Control
→
Rule”, you can view and set Access Restriction rules in the
screen as shown in Figure 4-54.

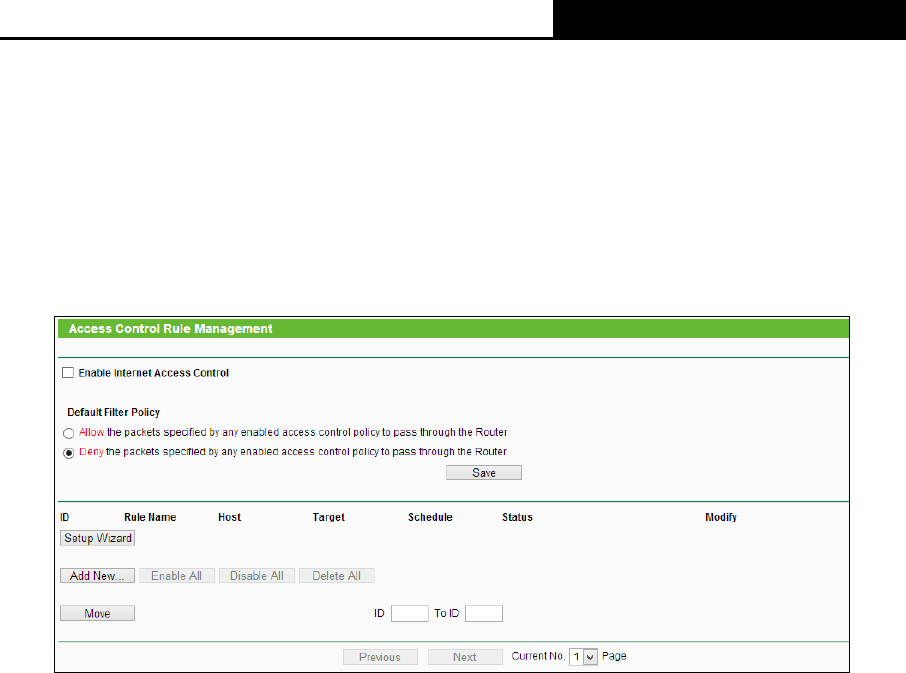

Figure 4-54 Access Control Rule Management

Enable Internet Access Control - Select the check box to enable the Internet Access
Restriction function, so the Default Filter Policy can take effect.
 Rule Name - Here displays the name of the rule and this name is unique.
 Host - Here displays the host selected in the corresponding rule.
 Target - Here displays the target selected in the corresponding rule.
 Schedule - Here displays the schedule selected in the corresponding rule.
 Status - This field displays the status of the rule. Enabled means the rule will take effect,
Disabled means the rule will not take effect.
 Modify - Here you can edit or delete an existing rule.
To add a new rule, please follow the steps below.
1. Click the Add New… button and the next screen will pop-up as shown in Figure 4-55.
2. Give a name (e.g. Rule_1) for the rule in the Rule Name field.
3. Select a host from the Host drop-down list or choose “Click Here To Add New Host List”.
4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target
List”.
5. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New
Schedule”.
