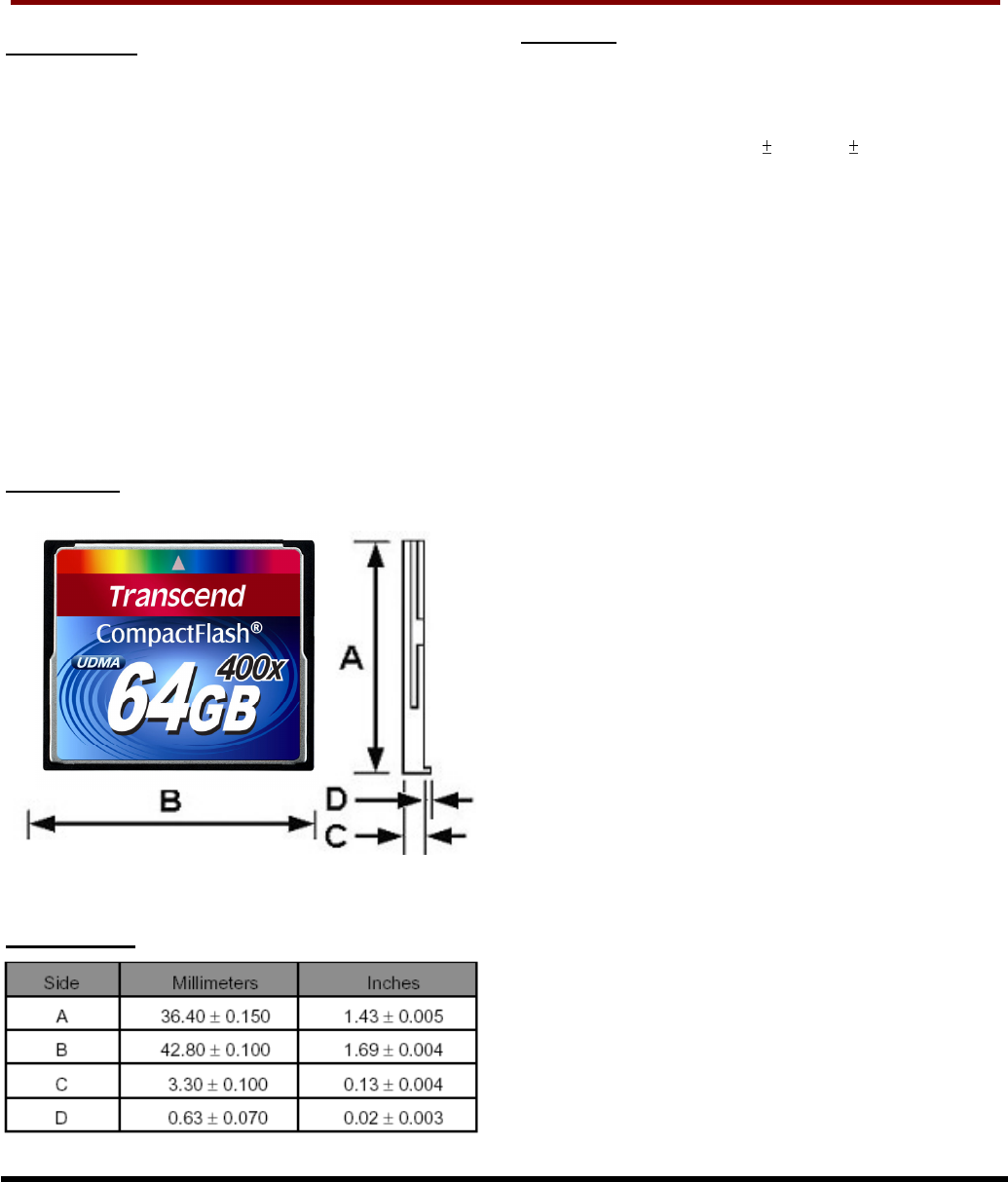

TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Features Description • CompactFlash Specification Version 4.1 Compliant Dedicated to fulfill the demanding requirements of performance-conscious photographers, • RoHS compliant products Transcend • Single Power Supply: 3.3V±5% or 5V±10% proudly releases its Extreme 400X CompactFlash o o cards.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Specification Interface Specification No Device Driver Required Drivers ATA/ATAPI 7 PIO Mode 0 - 6 ATA Compatibility Multiword mode 0 - 4 UDMA Mode 0 - 6 Physical Specification Form Factor Compact Flash Card Storage Capacities 16 GB to 64 GB Dimensions (mm) Length 36.40 ± 0.15 Width 42.80 ± 0.10 Height 3.30 ± 0.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Performance Model P/N Capacity Read(MB/s) Write(MB/s) Random Read (MB/s) Random Write (MB/s) TS16GCF400 16GB 83.67 44.96 82.38 8.671 TS32GCF400 32GB 86.16 45.82 85.09 10.99 TS64GCF400 64GB 88.87 39.67 88.48 10.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Block Diagram Transcend Information Inc. 4 V1.
TTS S1166G G~~6644G GC CFF440000 Transcend Information Inc. 400X CompactFlash Card 5 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Pin Assignments and Pin Type PC Card Memory Mode Pin Num Signal Name 1 GND 2 D03 3 Pin Type PC Card I/O Mode In, Out Type Pin Num Signal Name Ground 1 GND I/O I1Z, OZ3 2 D03 D04 I/O I1Z, OZ3 3 4 D05 I/O I1Z, OZ3 5 D06 I/O I1Z, OZ3 6 D07 I/O I1Z, OZ3 7 -CE1 I I3U Pin Type True IDE Mode4 In, Out Type Pin Num Signal Name Ground 1 GND I/O I1Z, OZ3 2 D03 I/O I1Z, OZ3 D04 I/O I1Z, OZ3 3 D04 I/O I1Z,
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card PC Card Memory Mode Pin Num Signal Name 34 -HIOE 10 HSTROBE HDMARDY11 35 -IOWR STOP Pin Type PC Card I/O Mode In, Out Type I I3U I 10,11 I3U Pin Num Signal Name 34 -HIOE 10 HSTROBE -HDMARDY11 35 -IOWR STOP Pin Type In, Out Type Pin Num Signal Name 34 -HIOE HSTROBE8 9 -HDMARDY Pin Type In, Out Type I I3Z I I3Z 7 I I 10,11 True IDE Mode4 I3U I3U 35 -IOWR STOP 7 8,9 36 -WE I I3U 36 -WE I I3U 36 -WE3 I
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Input Leakage Current Note: In Table 1 below, x refers to the characteristics described in table 2. For example, I1U indicates a pull-up resistor with a type 1 input characteristic. Table 1: Input Leakage Current Type Parameter Symbol Conditions MIN IxZ Input Leakage Current IL Vih = Vcc / Vil = Gnd IxU Pull-Up Resistor RPU1 IxD Pull-Down Resistor RPD1 TYP MAX Units -1 1 µA Vcc = 5.0V 50k 500k Ohm Vcc = 5.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Output Drive Characteristics Table 4: Output Drive Characteristics Type 1 2 3 X Parameter Symbol Conditions Voh Ioh = -4 mA Vol Iol = 4 mA Voh Ioh = -4 mA Vol Iol = 4 mA Voh Ioh = -4 mA Vol Iol = 4 mA Ioz Vol = Gnd Voh = Vcc MIN TYP MAX Output Voltage Volts Gnd +0.4V Vcc -0.8V Output Voltage Volts Gnd +0.4V Vcc -0.8V Output Voltage Tri-State Leakage Current Transcend Information Inc. Units Vcc -0.8V Volts Gnd +0.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Signal Description Signal Name A10 – A00 Dir. I (PC Card Memory Mode) Pin Description 8,10,11,12, These address lines along with the -REG signal are used to select the following: 14,15,16,17, The I/O port address registers within the CompactFlash Storage Card , the memory mapped port address registers within the CompactFlash Storage Card, 18,19,20 a byte in the card's information structure and its configuration control and status registers.
TTS S1166G G~~6644G GC CFF440000 Signal Name -CE1, -CE2 400X CompactFlash Card Dir. Pin I 7,32 (PC Card Memory Mode) Card Enable Description These input signals are used both to select the card and to indicate to the card whether a byte or a word operation is being performed. -CE2 always accesses the odd byte of the word.-CE1 accesses the even byte or the Odd byte of the word depending on A0 and -CE2. A multiplexing scheme based on A0,-CE1, -CE2 allows 8 bit hosts to access all data on D0-D7.
TTS S1166G G~~6644G GC CFF440000 Signal Name -INPACK 400X CompactFlash Card Dir. Pin O 43 Description This signal is not used in this mode. (PC Card Memory Mode except Ultra DMA Protocol Active) The Input Acknowledge signal is asserted by the CompactFlash Storage Card when the card is selected and responding to an I/O read cycle at the address that is on the address bus. This signal is used by the host to control the enable of any input data buffers between the CompactFlash Storage Card and the CPU.
TTS S1166G G~~6644G GC CFF440000 Signal Name -IOWR (PC Card Memory Mode– Except Ultra DMA Protocol Active) 400X CompactFlash Card Dir. Pin I 35 Description This signal is not used in this mode. The I/O Write strobe pulse is used to clock I/O data on the Card Data bus into the CompactFlash Storage Card controller registers when the CompactFlash Storage Card is configured to use the I/O interface.
TTS S1166G G~~6644G GC CFF440000 Signal Name -REG 400X CompactFlash Card Dir. Pin I 44 (PC Card Memory Mode– Except Ultra DMA Protocol Active) Description This signal is used during Memory Cycles to distinguish between Common Memory and Register (Attribute) Memory accesses. High for Common Memory, Low for Attribute Memory.
TTS S1166G G~~6644G GC CFF440000 Signal Name -VS1 -VS2 400X CompactFlash Card Dir. Pin O 33 40 (PC Card Memory Mode) -VS1 -VS2 Description Voltage Sense Signals. -VS1 is grounded on the Card and sensed by the Host so that the CompactFlash Storage Card CIS can be read at 3.3 volts and -VS2 is reserved by PCMCIA for a secondary voltage and is not connected on the Card. This signal is the same for all modes. (PC Card I/O Mode) -VS1 -VS2 This signal is the same for all modes.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Electrical Specification The following tables indicate all D.C. Characteristics for the CompactFlash Storage Card. Unless otherwise stated, conditions are: Vcc = 5V ±10% Vcc = 3.3V ± 5% Absolute Maximum Conditions DC Characteristics CompactFlash Interface I/O at 5.0V Parameter Symbol Min. Max. Unit Supply Voltage High level output voltage Low level output voltage VCC VOH VOL 4.5 5.5 0.8 1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Input Power Input Characteristics for UDMA mode >4 In UDMA modes greater than 4, the following characteristics apply. Voltage output high and low values shall be met at the source connector to include the effect of series termination.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Signal Interface Electrical specifications shall be maintained to ensure data reliability. Additional requirements are necessary for Advanced Timing Modes and Ultra DMA modes operations. See next sections for additional information.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card state and 100 μ A high state, including pull-up resistor. The card shall be able to drive at least the following load 10 while meeting all AC timing requirements: 50 pF at a DC current of 400 μ A low state and 100 μ A high state. 4) Status Signals: the socket shall present a load to the card no larger than 50 pF 10 at a DC current of 400 μ A low state and 100 μ A high state, including pull-up resistor.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Ultra DMA Electrical Requirements Host and Card signal capacitance limits for Ultra DMA operation The host interface signal capacitance at the host connector shall be a maximum of 25 pF for each signal as measured at 1 MHz. The card interface signal capacitance at the card connector shall be a maximum of 20 pF for each signal as measured at 1 MHz.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Table: Ultra DMA Termination with Pull-up or Pull down Example Printed Circuit Board (PCB) Trace Requirements for Ultra DMA On any PCB for a host or device supporting Ultra DMA: The longest D[15:00] trace shall be no more than 0.5" longer than either STROBE trace as measured from the IC pin to the connector. The shortest D[15:00] trace shall be no more than 0.5" shorter than either STROBE trace as measured from the IC pin to the connector.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Attribute Memory Read Timing Specification Attribute Memory access time is defined as 300 ns.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Configuration Register (Attribute Memory) Write Timing Specification The Card Configuration write access time is defined as 250 ns. Detailed timing specifications are shown in Table below.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Common Memory Read Timing Specification Cycle Time Mode: 250 ns 100 ns 80 ns Symbol IEEE Symbol Output Enable Access Time ta(HOE) tGLQV 125 60 50 45 Output Disable Time from HOE tdis(HOE) tGHQZ 100 60 50 45 Address Setup Time tsu(HA) tAVGL 30 15 10 10 Address Hold Time th(HA) tGHAX 20 15 15 10 CEx Setup before HOE tsu(CEx) tELGL 5 5 5 5 CEx Hold following HOE th(CEx) tGHEH 20 15 15 10 Wait Delay Falli
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Common Memory Write Timing Specification Cycle Time Mode: 250 ns 120 ns Max ns. Min ns. Max ns. 100 ns Min ns. Max ns. 80 ns Min ns. Item Symbol IEEE Symbol Min ns.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card I/O Input (Read) Timing Specification Cycle Time Mode: Item Symbol IEEE Symbol 250 ns Min ns. 120 ns Max ns. Min ns. Min ns. Min ns.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card I/O Output (Write) Timing Specification Cycle Time Mode: Item Symbol IEEE Symbol 255 ns Min ns. Max ns. 120 ns Min ns. Max ns. 100 ns Min ns. Max ns. 80 ns Min ns.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card True IDE PIO Mode Read/Write Timing Specification Mode Item 0 1 Note 2 3 4 5 6 t0 Cycle time (min) 600 383 240 180 120 100 80 t1 Address Valid to HIOE/HIOW setup (min) 70 50 30 30 25 15 10 t2 HIOE/HIOW (min) 165 125 100 80 70 65 55 1 t2 HIOE/HIOW (min) Register (8 bit) 290 290 290 80 70 65 55 1 t2i HIOE/HIOW recovery time (min) - - - 70 25 25 20 1 t3 HIOW data setup (min) 60 45 30 30 20
TTS S1166G G~~6644G GC CFF440000 Transcend Information Inc. 400X CompactFlash Card 29 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card True IDE Multiword DMA Mode Read/Write Timing Specification Item Mode 0 (ns) Mode 1 (ns) Mode 2 (ns) Mode 3 (ns) Mode 4 (ns) Note tO Cycle time (min) 480 150 120 100 80 1 tD -HIOE / -HIOW asserted width (min) 215 80 70 65 55 1 tE -HIOE data access (max) 150 60 50 50 45 tF -HIOE data hold (min) 5 5 5 5 5 tG -HIOE/-HIOW data setup (min) 100 30 20 15 10 tH -HIOW data hold (min) 20 15 10 5 5 tI -HREG
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card True IDE Ultra DMA Mode Read/Write Timing Specification Ultra DMA operations can take place in any of the three basic interface modes: PC Card Memory mode, PC Card I/O mode, Transcend Information Inc. 31 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card and True IDE (the original mode to support UDMA).
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card An Ultra DMA capable device shall retain the previously selected Ultra DMA mode after executing a software reset sequence or the sequence caused by receipt of a DEVICE RESET command if a SET FEATURES disable reverting to defaults command has been issued. The device may revert to a Multiword DMA mode if a SET FEATURES enable reverting to default has been issued.
TTS S1166G G~~6644G GC CFF440000 Name 400X CompactFlash Card UDMA Mode 0 Min Max UDMA Mode 1 Min Max UDMA Mode 2 Min Max UDMA Mode 3 Min Max UDMA Mode 4 Min Max UDMA Mode 5 Min Max UDMA Mode 6 Min Measure location (see Note 2) Max t2CYCTYP 240 160 120 90 60 40 30 Sender tCYC 112 73 54 39 25 16.8 13.0 Note 3 t2CYC 230 153 115 86 57 38 29 Sender tDS 15.0 10.0 7.0 7.0 5.0 4.0 2.6 Recipient tDH 5.0 5.0 5.0 5.0 5.0 4.6 3.5 Recipient tDVS 70.0 48.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card 4) The parameter tLI shall be measured at the connector of the sender or recipient that is responding to an incoming transition from the recipient or sender respectively. Both the incoming signal and the outgoing response shall be measured at the same connector. 5) The parameter tAZ shall be measured at the connector of the sender or recipient that is driving the bus but must release the bus the allow for a bus turnaround.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Notes: 1) The parameters tUI, tMLI : (Ultra DMA Data-In Burst Device Termination Timing and Ultra DMA Data-In Burst Host Termination Timing), and tLI indicate sender-to-recipient or recipient-to-sender interlocks, i.e., one agent (either sender or recipient) is waiting for the other agent to respond with a signal before proceeding. tUI is an unlimited interlock that has no maximum time value. tMLI is a limited time-out that has a defined minimum.
TTS S1166G G~~6644G GC CFF440000 Name Comment SRISE SFALL 400X CompactFlash Card Min [V/ns] Max [V/ns] Notes Rising Edge Slew Rate for any signal 1.25 1 Falling Edge Slew Rate for any signal 1.25 1 Note: 1) The sender shall be tested while driving an 18 inch long, 80 conductor cable with PVC insulation material. The signal under test shall be cut at a test point so that it has not trace, cable or recipient loading after the test point.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Card Configuration The CompactFlash Storage Cards is identified by appropriate information in the Card Information Structure (CIS). The following configuration registers are used to coordinate the I/O spaces and the Interrupt level of cards that are located in the system.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Table: PC Card Memory Mode UDMA Function -DMACK -REG STOP -HIO W -DMARDY -HIOE (R)-WAIT (W) STROBE -WAIT (R)-HIOE (W) DMA CMD A10A00 -CE2 -CE1 -DMARQ -INPACK 1 1 1 X X X X No XX Standby X X 0 1 X X 1 YES XX Device UDMA Transfer Request (Assert DMARQ) X X 0 1 1 X 1 YES XX Host Acknowledge Preparation 1 1 0 1 1 1 1 YES Static Host Acknowledge Preparation 1 1 0 0 1 1 1 YES Static DMA Acknowledge
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Attribute Memory Function Attribute memory is a space where CompactFlash Storage Card identification and configuration information are stored, and is limited to 8 bit wide accesses only at even addresses. The card configuration registers are also located here. For CompactFlash Storage Cards, the base address of the Card configuration registers is 200h.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Configuration Option Register (Base + 00h in Attribute Memory) Transcend Information Inc. 41 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Card Configuration and Status Register (Base + 02h in Attribute Memory) Transcend Information Inc. 42 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Pin Replacement Register (Base + 04h in Attribute Memory) Transcend Information Inc. 43 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Socket and Copy Register (Base + 06h in Attribute Memory) Transcend Information Inc. 44 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card I/O Transfer Function The I/O transfer to or from the CompactFlash Storage can be either 8 or 16 bits. When a 16 bit accessible port is addressed, the signal -IOIS16 is asserted by the CompactFlash Storage. Otherwise, the -IOIS16 signal is de-asserted.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Table: PC Card I/O Mode UDMA Function DMACK -REG STOP -HIOW -DMARDY -HIOE (R)-WAIT (W) STROBE -WAIT (R)-HIOE (W) DMA CMD A10A00 -CE2 -CE1 -DMARQ -INPACK 1 1 1 X X X X No XX Standby X X 0 0 X X 1 YES XX Device UDMA Transfer Request (Assert DMARQ) X X 0 0 1 X 1 YES XX Host Acknowledge Preparation 1 1 0 0 1 1 1 YES Static Host Acknowledge Preparation 1 1 0 1 1 1 1 YES Static DMA Acknowledge (Stop
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Common Memory Transfer Function The Common Memory transfer to or from the CompactFlash Storage can be either 8 or 16 bits.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card True IDE Mode I/O Transfer Function The CompactFlash Storage Card can be configured in a True IDE Mode of operation. The CompactFlash Storage Card is configured in this mode only when the -OE input signal is grounded by the host during the power off to power on cycle. Optionally, CompactFlash Storage Cards may support the following optional detection methods: 1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Host Configuration Requirements for Master/Slave or New Timing Modes The CF Advanced Timing modes include PCMCIA PC Card style I/O modes that are faster than the original 250 ns cycle time. These modes are not supported by the PCMCIA PC Card specification nor CF by cards based on revisions of the CF specification before Revision 3.0.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card CF-ATA Drive Register Set Definition and Protocol The CompactFlash Storage Card can be configured as a high performance I/O device through: a) The standard PC-AT disk I/O address spaces 1F0h-1F7h, 3F6h-3F7h (primary) or 170h- 177h, 376h-377h (secondary) with IRQ 14 (or other available IRQ). b) Any system decoded 16 byte I/O block using any available IRQ. c) Memory space.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card I/O Primary and Secondary Address Configurations Table: Primary and Secondary I/O Decoding Transcend Information Inc. 51 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Contiguous I/O Mapped Addressing When the system decodes a contiguous block of I/O registers to select the CompactFlash Storage Card, the registers are accessed in the block of I/O space decoded by the system as follows: Table: Contiguous I/O Decoding Transcend Information Inc. 52 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Memory Mapped Addressing When the CompactFlash Storage Card registers are accessed via memory references, the registers appear in the common memory space window: 0-2K bytes as follows: True IDE Mode Addressing When the CompactFlash Storage Card is configured in the True IDE Mode, the I/O decoding is as follows: Transcend Information Inc. 53 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card CF-ATA Registers The following section describes the hardware registers used by the host software to issue commands to the CompactFlash device. These registers are often collectively referred to as the “task file.” Data Register (Address - 1F0h[170h];Offset 0,8,9) The Data Register is a 16 bit register, and it is used to transfer data blocks between the CompactFlash Storage Card data buffer and the Host.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Feature Register (Address - 1F1h[171h]; Offset 1, 0Dh Write Only) This register provides information regarding features of the CompactFlash Storage Card that the host can utilize. This register is also accessed in PC Card modes on data bits D15-D8 during a write operation to Offset 0 with -CE2 low and -CE1 high.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Bit 2 (HS2): when operating in the Cylinder, Head, Sector mode, this is bit 2 of the head number. It is Bit 26 in the Logical Block Address mode. Bit 1 (HS1): when operating in the Cylinder, Head, Sector mode, this is bit 1 of the head number. It is Bit 25 in the Logical Block Address mode. Bit 0 (HS0): when operating in the Cylinder, Head, Sector mode, this is bit 0 of the head number. It is Bit 24 in the Logical Block Address mode.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Device Control Register (Address - 3F6h[376h]; Offset Eh) This register is used to control the CompactFlash Storage Card interrupt request and to issue an ATA soft reset to the card. This register can be written even if the device is BUSY. The bits are defined as follows: Bit 7: this bit is ignored by the CompactFlash Storage Card. The host software should set this bit to 0. Bit 6: this bit is ignored by the CompactFlash Storage Card.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Card (Drive) Address Register (Address 3F7h[377h]; Offset Fh) This register is provided for compatibility with the AT disk drive interface. It is recommended that this register not be mapped into the host’s I/O space because of potential conflicts on Bit 7. Bit 7: this bit is unknown.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card CF-ATA Command Set CF-ATA Command Set summarizes the CF-ATA command set with the paragraphs that follow describing the individual commands and the task file for each.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card 28 Security Disable Password F6h – – – – Y – Not Support 29 Security Erase Prepare F3h – – – – Y – Not Support 30 Security Erase Unit F4h – – – – Y – Not Support 31 Security Freeze Lock F5h – – – – Y – Not Support 32 Security Set Password F1h – – – – Y – Not Support 33 Security Unlock F2h – – – – Y – Not Support 34 Translate Sector 87h – Y Y Y Y Y Support 35 Wear Level F5h – –
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Check Power Mode - 98h or E5h If the CompactFlash Storage Card is in, going to, or recovering from the sleep mode, the CompactFlash Storage Card sets BSY, sets the Sector Count Register to 00h, clears BSY and generates an interrupt. If the CompactFlash Storage Card is in Idle mode, the CompactFlash Storage Card sets BSY, sets the Sector Count Register to FFh, clears BSY and generates an interrupt.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Erase Sector(s) - C0h This command is used to pre-erase and condition data sectors in advance of a Write without Erase or Write Multiple without Erase command. There is no data transfer associated with this command but a Write Fault error status can occur.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Identify Device – Ech Bit -> 7 6 5 4 3 1 0 ECh Command (7) C/D/H (6) 2 X X X Drive X Cyl High (5) X Cyl Low (4) X Sec Num (3) X Sec Cnt (2) X Feature (1) X The Identify Device command enables the host to receive parameter information from the CompactFlash Storage Card. This command has the same protocol as the Read Sector(s) command.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Word Address Default Value Total Bytes 51 0200h 2 PIO data transfer cycle timing mode 52 0000h 2 Obsolete 53 000Xh 2 Field Validity 54 XXXXh 2 Current numbers of cylinders 55 XXXXh 2 Current numbers of heads 56 XXXXh 2 Current sectors per track 57-58 XXXXh 4 Current capacity in sectors (LBAs)(Word 57 = LSW, Word 58 = MSW) 59 01XXh 2 Multiple sector setting 60-61 XXXXh 4 Total number of sectors addressable in LBA
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card 162 0000h 2 Key management schemes supported 163 0092h 2 CF Advanced True IDE Timing Mode Capability and Setting 164 8D9Bh 2 CF Advanced PC Card I/O and Memory Timing Mode Capability 165-175 0000h 22 Reserved 176-255 0000h 140 Reserved Word 0: General Configuration This field indicates the general characteristics of the device.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card same as the number of cylinders. Word 3: Default Number of Heads This field contains the number of translated heads in the default translation mode. Word 6: Default Number of Sectors per Track This field contains the number of sectors per track in the default translation mode. Words 7-8: Number of Sectors per Card This field contains the number of sectors per CompactFlash Storage Card.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card current translation mode. Current Capacity This field contains the product of the current cylinders times heads times sectors. Multiple Sector Setting Bits 15-9 are reserved and shall be set to 0. Bit 8 shall be set to 1 indicating that the Multiple Sector Setting is valid. Bits 7-0 are the current setting for the number of sectors that shall be transferred per interrupt on Read/Write Multiple commands.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Multiword DMA transfer cycle time. This field defines, in nanoseconds, the cycle time that, if used by the host, may optimize the data transfer from by reducing the probability that the CompactFlash Storage Card will need to negate the DMARQ signal during the transfer of a sector. If this field is supported, bit 1 of word 53 shall be set to one. The value in word 66 shall not be less than the value in word 65.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card and Write DMA Queued commands. Bit 2 of word 83 shall be set to one; the CompactFlash Storage Card supports the CFA feature set. If bit 3 of word 83 is set to one, the CompactFlash Storage Card supports the Advanced Power Management feature set. Bit 4 of word 83 shall be set to zero; the CompactFlash Storage Card does not support the Removable Media Status feature set.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Bit 9: 1 = Ultra DMA mode 1 is selected, 0 = Ultra DMA mode 1 is not selected Bit 8: 1 = Ultra DMA mode 0 is selected, 0 = Ultra DMA mode 0 is not selected Bits 7: Reserved Bit 6: 1 = Ultra DMA mode 6 and below are supported. Bits 0-5 Shall be set to 1. Bit 5: 1 = Ultra DMA mode 5 and below are supported. Bits 0-4 Shall be set to 1. Bit 4: 1 = Ultra DMA mode 4 and below are supported. Bits 0-3 Shall be set to 1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card If set to 1, indicates that this word contains a valid power requirement description. If set to 0, indicates that this word does not contain a power requirement description. Bit 14: RSV This bit is reserved and shall be 0. Bit 13: -XP If set to 1, indicates that the CompactFlash Storage Card does not have Power Level 1 commands.
TTS S1166G G~~6644G GC CFF440000 0 1 2 3-7 400X CompactFlash Card Specified in word 64 PIO Mode 5 PIO Mode 6 Reserved Bits 11-9: Advanced True IDE Multiword DMA Mode Selected Indicates the current True IDE Multiword DMA Mode Selected on the card. Value Current Multiword DMA timing mode selected 0 Specified in word 63 1 Multiword DMA Mode 3 2 Multiword DMA Mode 4 3-7 Reserved Bits 15-12 are reserved.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card mode supported by the card when bit 15 is set.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Idle - 97h or E3h This command causes the CompactFlash Storage Card to set BSY, enter the Idle mode, clear BSY and generate an interrupt. If the sector count is non-zero, it is interpreted as a timer count with each count being 5 milliseconds and the automatic power down mode is enabled. If the sector count is zero, the automatic power down mode is disabled. Note that this time base (5 msec) is different from the ATA specification.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card This command always fails with the CompactFlash Storage Card returning command aborted. Bit -> 7 6 5 4 2 1 0 00h Command (7) X C/D/H (6) 3 Drive X Cyl High (5) X Cyl Low (4) X Sec Num (3) X Sec Cnt (2) X Feature (1) X Read Buffer - E4h The Read Buffer command enables the host to read the current contents of the CompactFlash Storage Card’s sector buffer. This command has the same protocol as the Read Sector(s) command.
TTS S1166G G~~6644G GC CFF440000 Read Multiple - C4h Read Sector(s) - 20h or 21h Read Verify Sector(s) - 40h or 41h Recalibrate - 1Xh Transcend Information Inc. 400X CompactFlash Card 76 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Request Sense - 03h The extended error code is returned to the host in the Error Register. Seek - 7Xh Set Features – EFh Transcend Information Inc. 77 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Feature Supported Features 01h and 81h are used to enable and clear 8 bit data transfer modes in True IDE Mode. If the 01h feature command is issued all data transfers shall occur on the low order D[7:0] data bus and the -IOIS16 signal shall not be asserted for data register accesses. The host shall not enable this feature for DMA transfers.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Count register. The upper 5 bits define the type of transfer and the low order 3 bits encode the mode value. One PIO mode shall be selected at all times. For Cards which support DMA, one Multiword DMA mode shall be selected at all times. The host may change the selected modes by the Set Features command. Set Multiple Mode - C6h Set Sleep Mode- 99h or E6h Standby - 96h or E2h Transcend Information Inc. 79 V1.
TTS S1166G G~~6644G GC CFF440000 Standby Immediate - 94h or E0h Translate Sector - 87h 400X CompactFlash Card Translate Sector Information Transcend Information Inc. 80 V1.
TTS S1166G G~~6644G GC CFF440000 Wear Level - F5h Write Buffer - E8h Write DMA – CAh Transcend Information Inc. 400X CompactFlash Card 81 V1.
TTS S1166G G~~6644G GC CFF440000 Write Long Sector - 32h or 33h Write Multiple Command - C5h Write Multiple without Erase – CDh Transcend Information Inc. 400X CompactFlash Card 82 V1.
TTS S1166G G~~6644G GC CFF440000 Write Sector(s) - 30h or 31h Write Sector(s) without Erase - 38h Write Verify - 3Ch Transcend Information Inc. 400X CompactFlash Card 83 V1.
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Error Posting Command Error Register BBK UNC IDNF Check Power Mode Status Register ABRT AMNF V Execute Drive Diagnostic1 Erase Sector(s) DRDY DWF DSC V V V V V V V V V Flush Cache V V V Format Track V V V CORR ERR V V V V V V V V V V V V Identify Device V V V V V Idle V V V V V Idle Immediate V V V V V V V V Initialize Drive Parameters Key Management Structure Read V V V V V V K
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Command Error Register BBK UNC IDNF Status Register ABRT AMNF DRDY DWF DSC CORR ERR Set Multiple Mode V V V V V Set Sleep Mode V V V V V Stand By V V V V V Stand By Immediate V V V V V Translate Sector V Wear Level V V V V V V V V V V V V V V V V V V V V Write Buffer V Write DMA V V V V V V V V Write Long Sector V V V V V V V V Write Multiple V V V V V V V V Write
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Smart Command Set SMART Command Set SMART Feature Register Values D0h Read Data D5h Read Log D1h Read Attribute Threshold D6h Write Log D2h Enable/Disable Autosave D8h Enable SMART Operations D3h Save Attribute Values D9h Disable SMART Operations D4h Execute OFF-LINE Immediate DAh Return Status * If reserved size is below the Threshold, the status can be read from Cylinder register by Return Status command (DAh).
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card 374 F Conveyance self-test routine recommended polling time (in minutes) 375-385 R Reserved 386-395 F Firmware Version/Date Code 396-397 F Number of initial invalid block (396 = MSB, 397 = LSB) 398-399 V Number of run time bad block (398 = MSB, 399 = LSB) 400 V Number of spare block 401-402 V Erase count 403-405 F “SMI” 406 F Number of max pair 407-510 X Vendor specific 511 V Data structure checksum F=the content of t
TTS S1166G G~~6644G GC CFF440000 400X CompactFlash Card Ordering Information Form Factor -S = SLC -M = MLC -I = Industrial (SLC) TS XG CF400 XX Transcend Product Capacity: 16G-64G = 16GB up to 64GB CompactFlash Card 400X The above technical information is based on industry standard data and has been tested to be reliable. However, Transcend makes no warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.
