Lane Tuning Guidelines
4-9

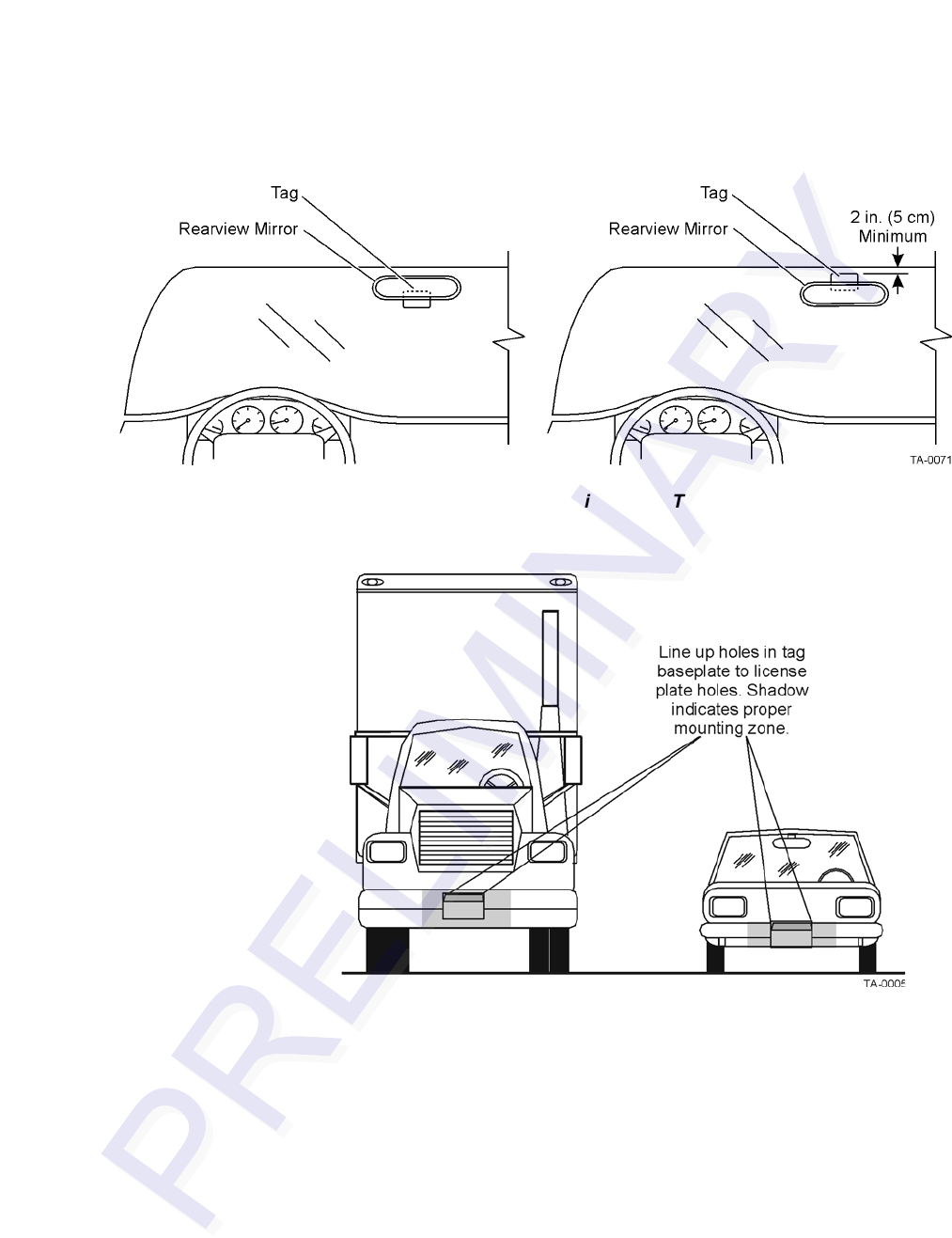

Figure 4-3 Upper Center Interior Windshield Tag Placement
Figure 4-4 Correct Exterior Tag Placement
Antenna Uptilt Angle
Adjusting the antenna uptilt angle directly affects the footprint and the point of first
tag read (
Figure 4-5). As expected, a greater uptilt angle will move the point of first
tag read farther from the antenna. However, at some uptilt angle, a point of diminish-
ing return is reached where the RF power is too dispersed to activate the tag at the
start of the footprint. Increasing the antenna angle beyond this point will not move the
first read point farther out and may actually decrease the RF margin within the cap
-
ture zone. Also, increasing the angle may produce an area near the start of the capture
zone with spotty reads. The most commonly used range for antenna uptilt angles is
from 10 to 25 degrees with the lower angles producing the sharpest, most clearly
defined read zones. Setting the antenna uptilt angle below 10 degrees may cause
problems in reading tags mounted on windshields that are nearly vertical and in read
-
