Identifying Cross-Lane Interference
Cross-lane interference is identified by an area in the RF read zone, or footprint,
which has areas where a tag cannot be read. If a toll lane has been operating satisfacto
-
rily and then begins to show a degradation in system performance, that is, an increas-
ing number of missed reads or a spotty read pattern, there is a probability that cross-
lane interference is occurring.
Cross-lane interference can be caused by the following:
• A downlink antenna transmitting strong RF beyond its lane boundaries
• Reflection of RF from fixed objects (e.g., toll plazas with low, metal roofs)
• Reflection of RF from moving objects (e.g., a passing tractor-trailer in an adjacent
lane)
A typical toll lane application encompasses more than a single lane. In some cases a
toll plaza can have more than eight lanes with each lane having separate RF transmit
-
ting (downlink) and receiving (uplink) antennas. As shown in Figure 5-1, the RF
transmitted within a lane is not bound by physical dividers such as lane barriers. With
multiple-lane applications, transmissions out of a lane can create areas of possible
cross-lane interference.

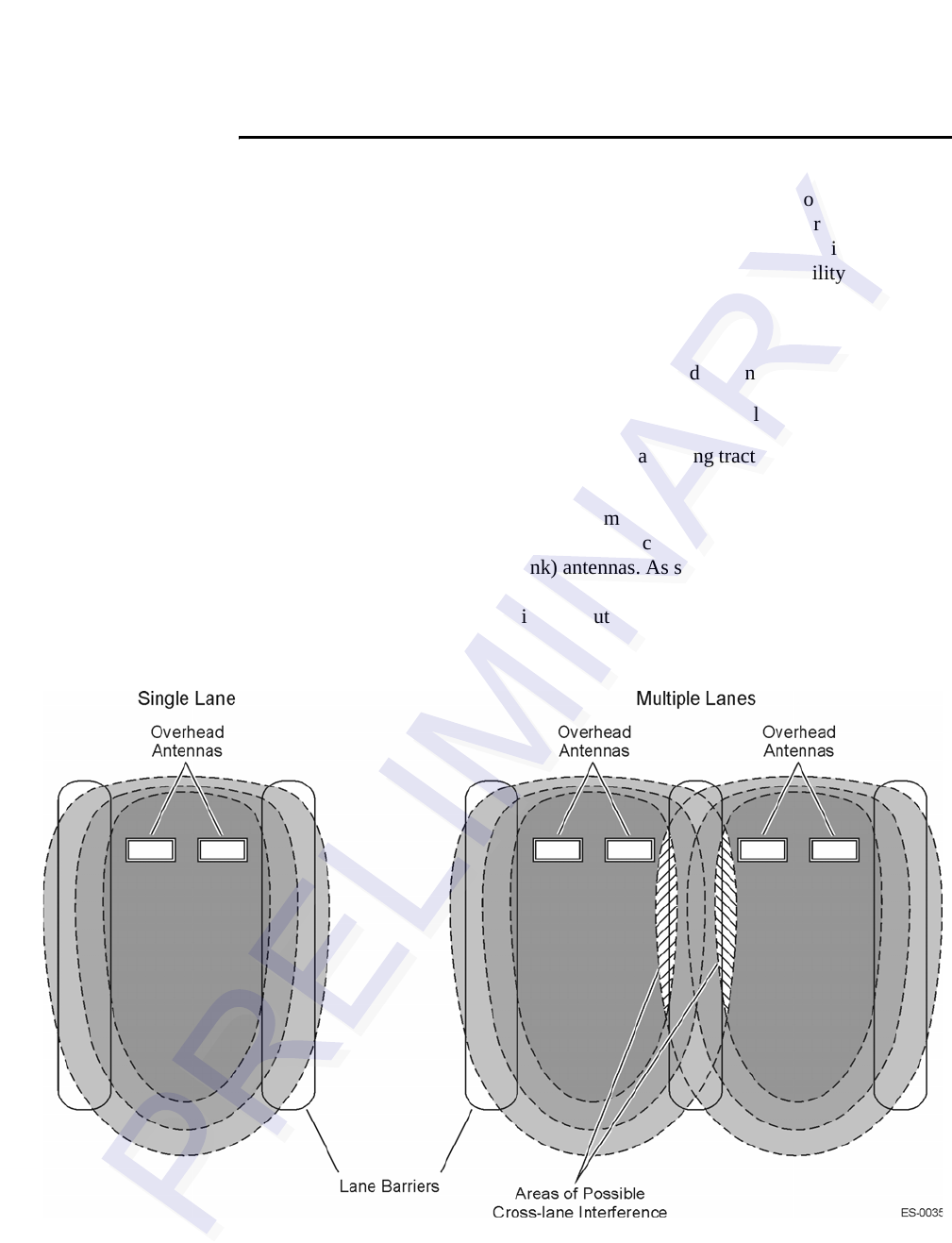

Figure 5-1 RF Footprint Extends Beyond Lane Boundaries
