Datasheet

EPP
Edition 1e-e

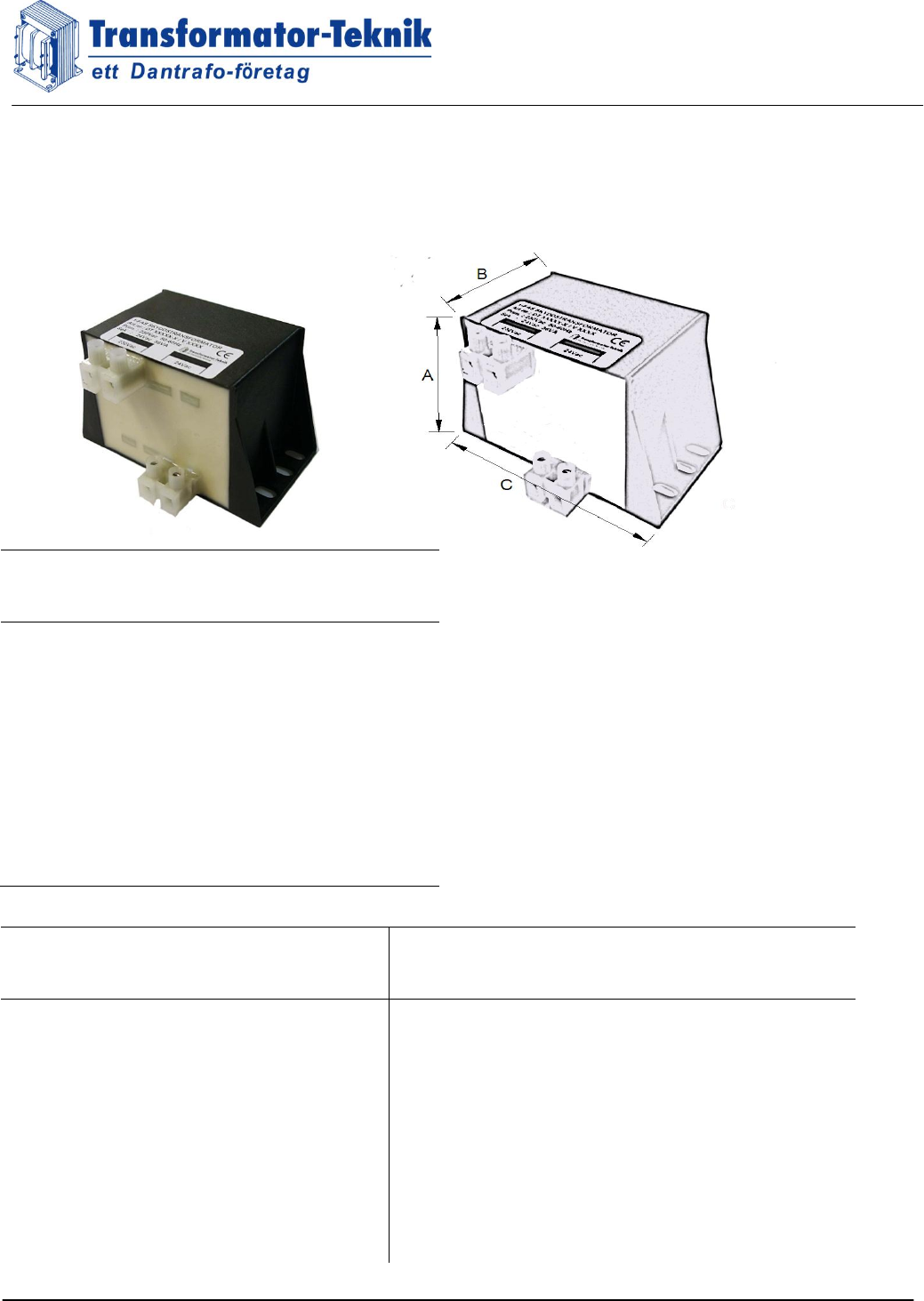

Single-phase safety protection or isolating transformer type EPP.
For hole fixing.
The transformers are calculated for ambient temperature 40°C
and of temperature class E.
Manufactured according to EN 61558-1 and of protection class IP20.
Type/Power(VA)
Mounting
measures(mm)
Weight
(Kg)
A
B
C
EPP/24
54
48
88
0,6
EPP/36
54
58
88
0,8
EPP/50
59
61
94
1,1
EPP/60
72
59
113
1,2
EPP/80
75
64
120
1,5
EPP/110
75
78
120
2,0
EPP/130
85
75
133
2,2
EPP/160
85
85
133
2,8
EPP/200
85
99
133
3,5
EPP/330
107
109
172
5,3
EPP/450
107
129
172
6,8
*C-measure are for box only. + 15mm for terminal block. +25mm at current over 16A
Art . No.
Voltage (V)
Power(VA)
Art. No.
Voltage (V)
Power(VA)
Prim.
Sec.
Prim.1
Prim.2
Sec.
DT 21643-1
230
24
24
DT 21654-1
400
440
230
24
DT 21644-1
230
24
36
DT 21655-1
400
440
230
36
DT 21645-1
230
24
50
DT 21656-1
400
440
230
50
DT 21646-1
230
24
60
DT 21657-1
400
440
230
60
DT 21647-1
230
24
80
DT 21658-1
400
440
230
80
DT 21648-1
230
24
110
DT 21659-1
400
440
230
110
DT 21649-1
230
24
130
DT 21660-1
400
440
230
130
DT 21650-1
230
24
160
DT 21661-1
400
440
230
160
DT 21651-1
230
24
200
DT 21662-1
400
440
230
200
DT 21652-1
230
24
330
DT 21663-1
400
440
230
330
DT 21653-1
230
24
450
DT 21664-1
400
440
230
450
TRANSFORMATOR-TEKNIK AB Box 28 S-662 21 Åmål , Sweden
Tel [phone] Fax [phone] Web www.transformatorteknik.se E-mail [e-mail]
