Manual

Trek’s Model 2210 is one of several models within our 2200-

series of high-voltage 40 W amplifiers. Provided at an

attractive price and offering high performance, the unit

incorporates DC stability, wide bandwidth and well

regulated/controlled AC output signals. It also features full

four-quadrant class AB all-solid-state output stages, DC

offset adjustment with front panel metering, and auto-

recovery shutdown to protect the output from being

overpowered. The instrument stage sinks or sources current

into reactive or resistive loads throughout the output voltage

range making it ideal to achieve the accurate output

response and high slew rates demanded by reactive loads.

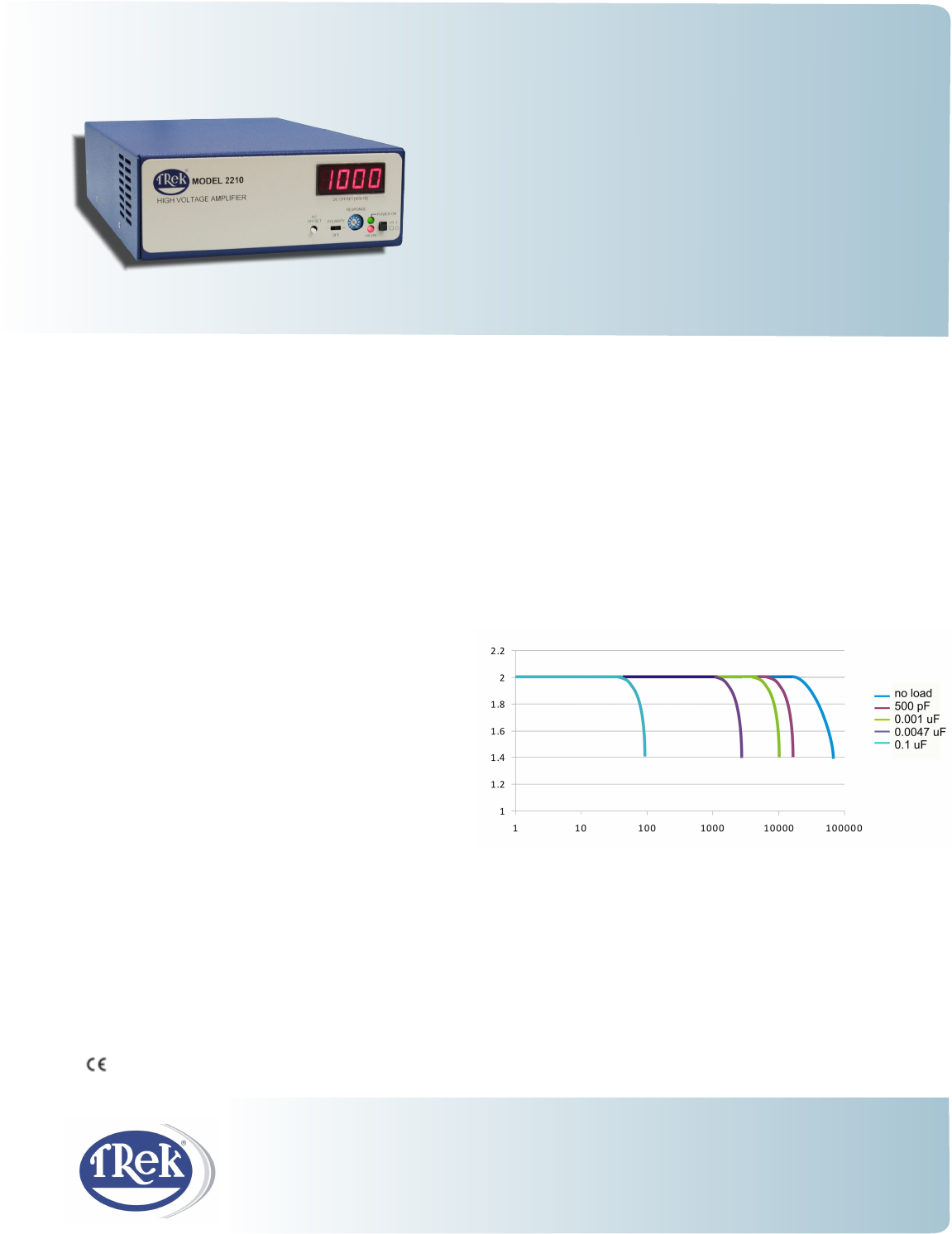

Trek Model 2210

Piezo Driver/Power Amplifier

Typical Applications Include

! Piezoelectric driving/control

Electro-optic

MEMS

Many areas of research

TREK, INC. • 190 Walnut Street • Lockport, NY 14094 • USA • 800-FOR TREK

(fax) • www.trekinc.com • sales@trekinc.com 716-438-7555 • 716-201-1804

Features and Benefits

Four-quadrant output for driving capacitive loads

2-year warranty

DC offset adjustment with front panel metering

Auto-recovery shutdown protects the output from being overpowered

Low output noise for ultra-accurate outputs

All solid-state output stages

! RoHS compliant

! HALT Tested

! compliant

! NIST-traceable Certificate of Calibration provided with each unit

Key Specifications

Output Voltage Range:

Output Current Range: peak AC for 5 ms minimum

Slew Rate: 150 V/

0 to ±1 kV DC or peak AC

0 to ±20 mA DC or ±40 mA

µs, typical

Large Signal Bandwidth (-3 dB): DC to greater than 40 kHz

Small Signal Bandwidth(-3 dB): DC to greater than 100 kHz

DC Voltage Gain: 100 V/V

kV p-p

Model 2210

Frequency (Hz)

PAGE 1
Trek Model 2210 Piezo Driver/Power Amplifier Trek’s Model 2210 is one of several models within our 2200series of high-voltage 40 W amplifiers. Provided at an attractive price and offering high performance, the unit incorporates DC stability, wide bandwidth and well regulated/controlled AC output signals. It also features full four-quadrant class AB all-solid-state output stages, DC offset adjustment with front panel metering, and autorecovery shutdown to protect the output from being overpowered.
PAGE 2
Model 2210 Specifications Performance Output Voltage Range 0 to ±1 kV DC or peak AC Output Current Range 0 to ±20 mA DC or ±40 mA peak for 5 ms minimum Input Voltage Range 0 to ±10 V DC or peak AC Input Impedance 10 kW, nominal DC Voltage Gain 100 V/V DC Voltage Gain Accuracy Better than 0.
