5
5. Connect the other end of the network cable to the P+DATA OUT port on the included PoE
injector.
6. Using another network cable, connect one end to the 10/100 DATA IN port on the included
PoE injector.
7. Connect the other end of the network cable to your computer's Ethernet port.
8. Connect the included power adapter to the PoE injector POWER IN on the included PoE
injector.
9. Plug the connected power adapter into a power outlet.
10. Confirm the device is powered on through the LED indicators.

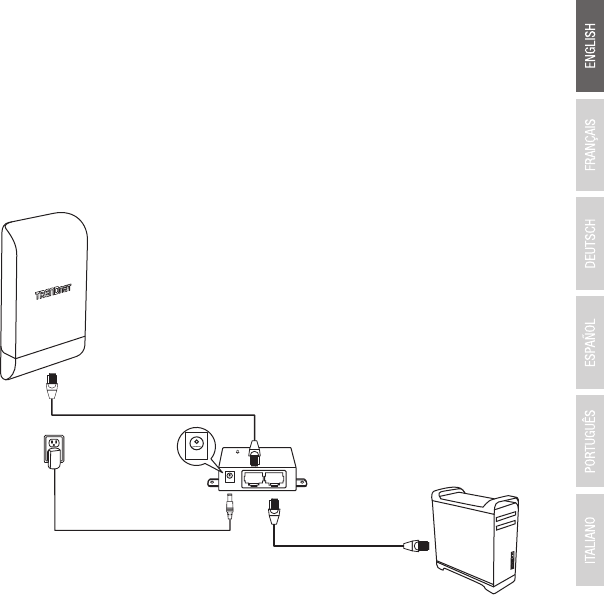

Included PoE injector
LAN1 (PoE)
P+DATA OUT
POWER IN 10/100Mbps DATA IN
11. Assign a static IP address to your computer's network adapter in the subnet of
192.168.10.x (e.g. 192.168.10.10) and subnet mask of 255.255.255.0.
