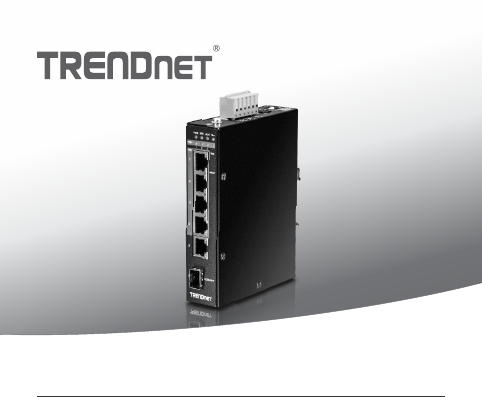

Ÿ5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch TI-PG541 ŸQuick Installation Guide (1) TI-PG541 (V1) /11.14.
1. Before You Start Package Contents ŸTI-PG541 ŸMulti-Language Quick Installation Guide ŸDIN-rail kit Minimum Requirements ŸExisting network ŸPower source Optional Equipment ŸDC power adapter (model: 48VDC3000) 2.
. Hardware Installation ŸThe TI-PG541 can be placed on a desktop or mounted to a DIN-rail. ŸOnly attach the DIN-rail mount bracket when DIN-rail mounting is required. 1. Attach the DIN-rail mount bracket to the switch 2. Mount the switch.
3. Connect the power source (sold separately) to the switch. Connect the TRENDnet 48DC3000 power adapter to the DC-jack or connect a compatible third party DIN-rail power source to the power terminal block. ALM RPS PWR DIP Switches SFP PoE+ 1000 Mbps (Green) Power Input DC-Jack Power Input Terminal Block Link/Act (Green) Grounding Screw SFP (1000Mbps) Top View Front View Safety Note ! ŸTurn off the power before connecting any module or wire.
4. Additional information 1. Redundant power inputs Redundant Power Input: Choose either “DC-jack” or “Terminal Block (PWR)” as primary power and “Terminal Block (RPS)” for secondary power source, to be a redundant power Input. V- - + ALM V+ RPS + V- PWR - 48-57VDC V+ DC-Jack Terminal Block 1 NO 2.
3.
Manufacturer’s Name and Address TRENDnet, Inc. 20675 Manhattan Place Torrance, CA 90501 USA Product Information: Model Number: TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Product Name: TRENDnet Trade Name: TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility.
TI-PG541 Limited Warranty TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following length of time from the date of purchase. Warranty: 3 year limited warranty (When Applicable: 1 year warranty for power adapter, power supply, and cooling fan components.) Visit TRENDnet.com to review the full warranty policy, rights, and restrictions for this product.
TI-PG541 Certifications This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation. Waste electrical an electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or Retailer for recycling advice.
