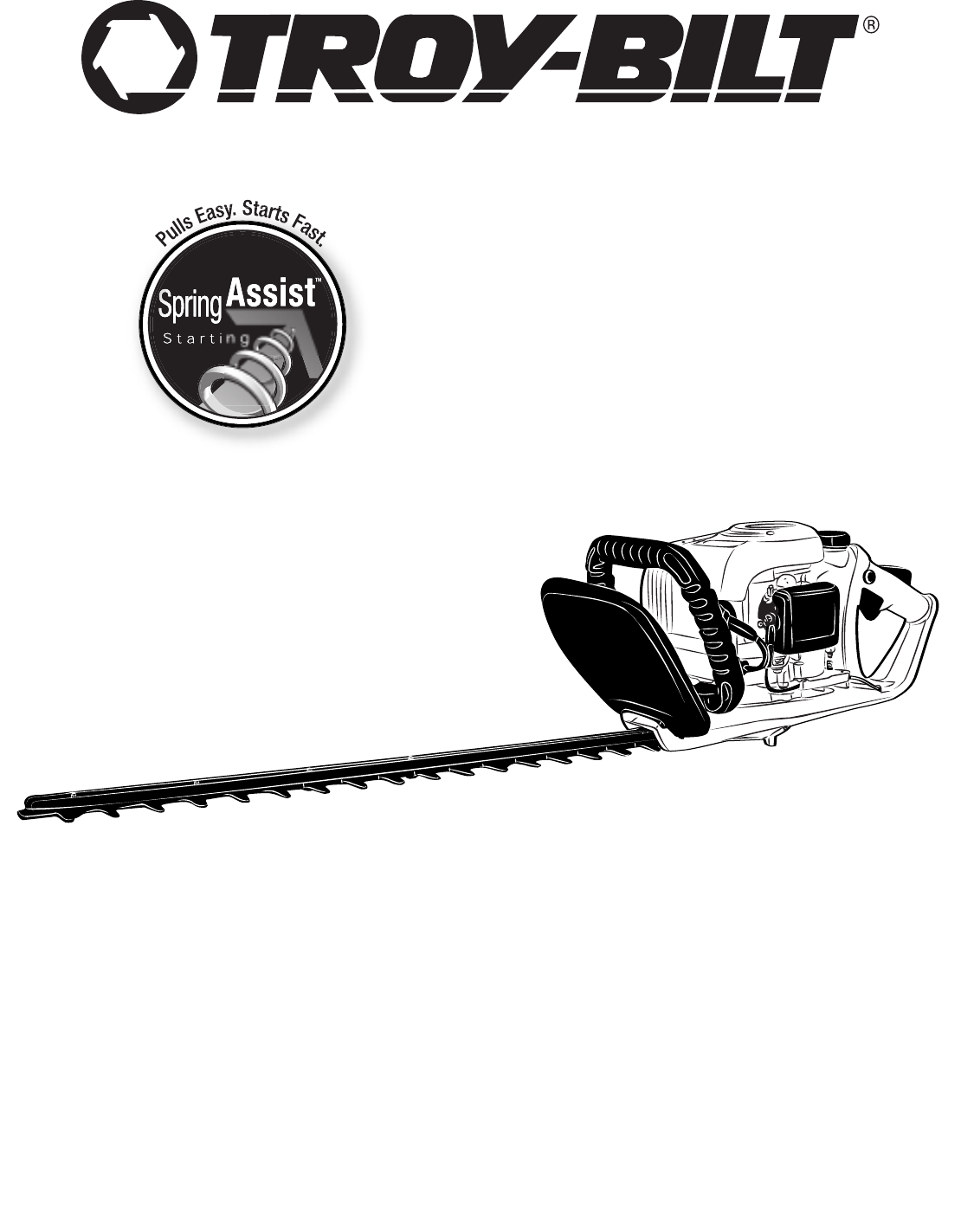

Operator’s Manual 2-Cycle STOP ALTO GAS HEDGE TRIMMER Model TB25GHT For problems or questions, DO NOT return this product to the store. Contact your Customer Service Agent . Para problemas o preguntas, NO devolver este producto a la tienda Contacte a su Agente de Servicio al Cliente. U.S.A. Imported by: MTD LLC P.O.
TABLE OF CONTENTS Warranty Page Safety Rules Oil and Fuel information 2 Maintenance Pages 12 - 15 Pages 3 - 7 Troubleshooting Page 16 Page Specifications Page 17 Parts List Page 18 8 Starting / Stopping instrustion Pages 9 - 10 Trimmer Instructions RULES FOR SAFE OPERATION Page SYMBOL 11 WARRANTY STATEMENT TWO YEAR LIMITED WARRANTY ON TROY BILT HEDGE TRIMMER Read the Operator’s Manual(s) and follow all warnings and safety instructions.
TABLE OF CONTENTS Warranty Page Safety Rules Oil and Fuel information 2 Maintenance Pages 12 - 15 Pages 3 - 7 Troubleshooting Page 16 Page Specifications Page 17 Parts List Page 18 8 Starting / Stopping instrustion Pages 9 - 10 Trimmer Instructions RULES FOR SAFE OPERATION Page SYMBOL 11 WARRANTY STATEMENT TWO YEAR LIMITED WARRANTY ON TROY BILT HEDGE TRIMMER Read the Operator’s Manual(s) and follow all warnings and safety instructions.
RULES FOR SAFE OPERATION WHAT TO DO WHAT NOT TO DO READ YOUR USER MANUAL AND ALL SUPPLEMENTS (IF ANY ENCLOSED) THOROUGHLY BEFORE OPERATING YOUR UNIT. 1. WEAR CLOSE FITTING, TOUGH WORK CLOTHING that will provide protection, such as long slacks or trousers, safety work shoes, heavy duty work gloves, hard hat, a safety face shield, or safety glasses for eye protection and a good grade of ear plugs or other sound barriers for hearing protection. 2 REFUEL IN A SAFE PLACE.
RULES FOR SAFE OPERATION WHAT TO DO WHAT NOT TO DO READ YOUR USER MANUAL AND ALL SUPPLEMENTS (IF ANY ENCLOSED) THOROUGHLY BEFORE OPERATING YOUR UNIT. 1. WEAR CLOSE FITTING, TOUGH WORK CLOTHING that will provide protection, such as long slacks or trousers, safety work shoes, heavy duty work gloves, hard hat, a safety face shield, or safety glasses for eye protection and a good grade of ear plugs or other sound barriers for hearing protection. 2 REFUEL IN A SAFE PLACE.
RULES FOR SAFE OPERATION RULES FOR SAFE OPERATION SAFETY AND INTERNATIONAL SYMBOLS KNOW YOUR HEDGE TRIMMER This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL SYMBOL MEANING 4 3 MEANING 5 7 • PRIMER BULB Pump the primer bulb 10 times. • SAFETY ALERT SYMBOL Indicates danger, warning, or caution.
RULES FOR SAFE OPERATION RULES FOR SAFE OPERATION SAFETY AND INTERNATIONAL SYMBOLS KNOW YOUR HEDGE TRIMMER This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL SYMBOL MEANING 4 3 MEANING 5 7 • PRIMER BULB Pump the primer bulb 10 times. • SAFETY ALERT SYMBOL Indicates danger, warning, or caution.
OIL AND FUEL INFORMATION STARTING/STOPPING INSTRUCTIONS OIL AND FUEL MIXING INSTRUCTIONS To Obtain Correct Fuel Mix: STARTING A COLD ENGINE (Above 55˚F) Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, (less than 30 days old) clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture. Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio.
OIL AND FUEL INFORMATION STARTING/STOPPING INSTRUCTIONS OIL AND FUEL MIXING INSTRUCTIONS To Obtain Correct Fuel Mix: STARTING A COLD ENGINE (Above 55˚F) Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, (less than 30 days old) clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture. Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio.
STARTING/STOPPING INSTRUCTIONS WARM ENGINE START Normal Stopping Method. For normal stopping, release trigger and allow engine to return to idle speed. Then DEPRESS the OFF “STOP ” switch until the engine stops completely. (Figure 10) 1. Move ignition switch to the “RUN (I)” position. 2. Place choke in PARTIAL CHOKE “ ” position (Figure 8). 3. Grasp throttle handle firmly, depress safety trigger, and squeeze throttle trigger to FULL position. 4.
STARTING/STOPPING INSTRUCTIONS WARM ENGINE START Normal Stopping Method. For normal stopping, release trigger and allow engine to return to idle speed. Then DEPRESS the OFF “STOP ” switch until the engine stops completely. (Figure 10) 1. Move ignition switch to the “RUN (I)” position. 2. Place choke in PARTIAL CHOKE “ ” position (Figure 8). 3. Grasp throttle handle firmly, depress safety trigger, and squeeze throttle trigger to FULL position. 4.
MAINTENANCE AND REPAIR INSTRUCTIONS MAINTENANCE SCHEDULE MAINTENANCE AND REPAIR INSTRUCTIONS WARNING: To prevent serious injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start. Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.
MAINTENANCE AND REPAIR INSTRUCTIONS MAINTENANCE SCHEDULE MAINTENANCE AND REPAIR INSTRUCTIONS WARNING: To prevent serious injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start. Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.
MAINTENANCE AND REPAIR INSTRUCTIONS FUEL CAP / FUEL FILTER CAUTION: Remove fuel from unit and store in approved container before starting this procedure. Open fuel cap slowly to release any pressure which may have formed in fuel tank. IDLE ADJUSTMENT STORING A UNIT The carburetor was pre-set at the factory for optimum performance. If further adjustments are necessary take your hedge trimmer to a Troy Bilt or other qualified service dealer.
MAINTENANCE AND REPAIR INSTRUCTIONS FUEL CAP / FUEL FILTER CAUTION: Remove fuel from unit and store in approved container before starting this procedure. Open fuel cap slowly to release any pressure which may have formed in fuel tank. IDLE ADJUSTMENT STORING A UNIT The carburetor was pre-set at the factory for optimum performance. If further adjustments are necessary take your hedge trimmer to a Troy Bilt or other qualified service dealer.
TROUBLESHOOTING UNIT WON’T START OR STARTS BUT WILL NOT RUN CAUSE ACTION 1. Incorrect starting procedures 2. Incorrect carburetor mixture adjustment setting 1. Follow instructions in the Starting/Stopping section 2. Have carburetor adjusted by a Troy Bilt or other qualified service dealer 3. Clean/gap or replace plug 4. Fill fuel tank with properly mixed fuel 5. Press primer bulb fully and slowly 10 times 3. Fouled spark plug 4. Empty fuel tank 5.
TROUBLESHOOTING UNIT WON’T START OR STARTS BUT WILL NOT RUN CAUSE ACTION 1. Incorrect starting procedures 2. Incorrect carburetor mixture adjustment setting 1. Follow instructions in the Starting/Stopping section 2. Have carburetor adjusted by a Troy Bilt or other qualified service dealer 3. Clean/gap or replace plug 4. Fill fuel tank with properly mixed fuel 5. Press primer bulb fully and slowly 10 times 3. Fouled spark plug 4. Empty fuel tank 5.
PARTS LIST California / EPA Emission Control Warranty Statement Your Warranty Rights and Obligations The California Air Resources Board, The Environmental Protection Agency and Troy Bilt are pleased to explain the emission control system warranty on your 2005 and later small off-road engine. In California and the 49 states, new small off-road engines must be designed, built and equipped to meet stringent anti-smog standards.
PARTS LIST California / EPA Emission Control Warranty Statement Your Warranty Rights and Obligations The California Air Resources Board, The Environmental Protection Agency and Troy Bilt are pleased to explain the emission control system warranty on your 2005 and later small off-road engine. In California and the 49 states, new small off-road engines must be designed, built and equipped to meet stringent anti-smog standards.
MANUFACTURER’S LIMITED WARRANTY FOR: No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified.
Operator’s Manual 2-Cycle STOP ALTO GAS HEDGE TRIMMER Model TB25GHT For problems or questions, DO NOT return this product to the store. Contact your Customer Service Agent . Para problemas o preguntas, NO devolver este producto a la tienda Contacte a su Agente de Servicio al Cliente. U.S.A. Imported by: MTD LLC P.O.
