Data Sheet

Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau
Item no.: 1568669 – Black 1568670 – Red 1568671 – Orange 1568672 – White
1568673 – Yellow 1568674 – Green 1568675 – Grey 1568677 - Violet
Data Sheet
Page 1 of 1

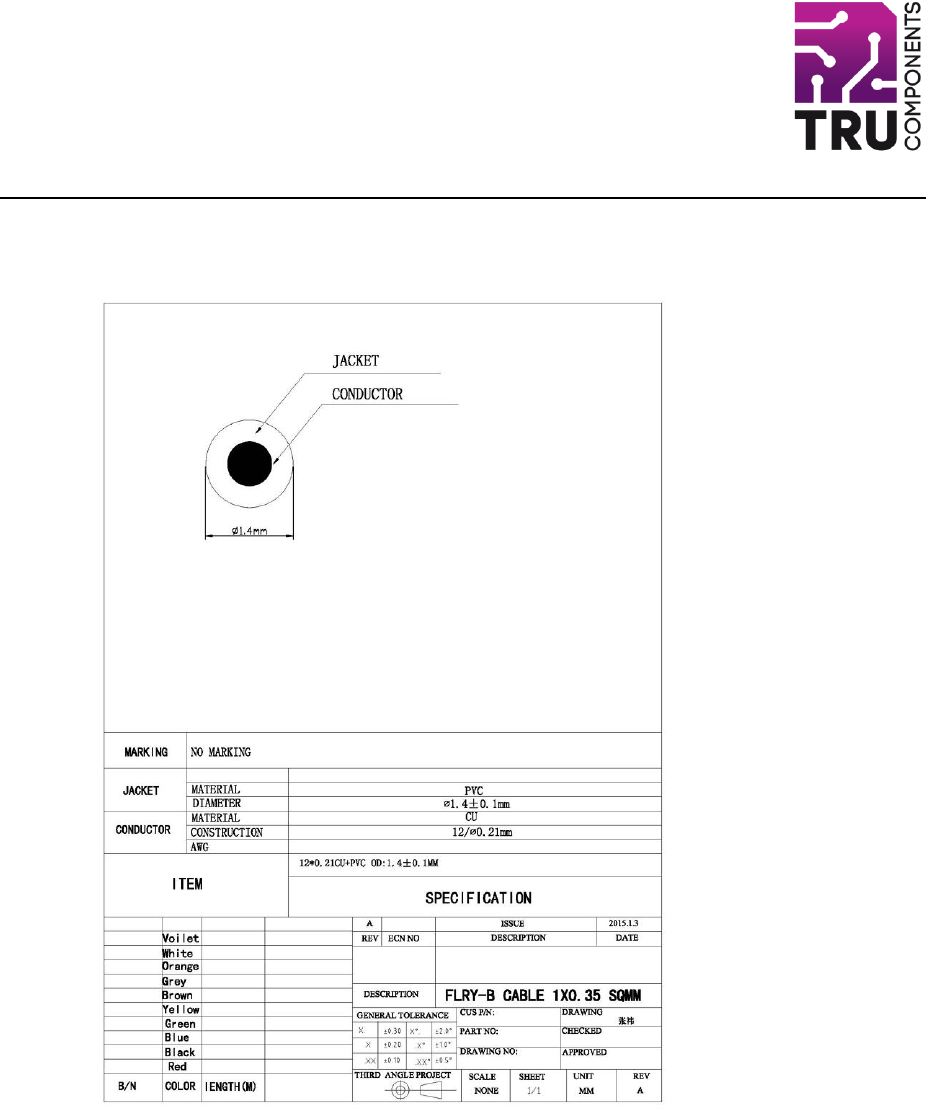

FLRY-B Cable 0.35 mm
²
, 50 meter
Jacket, outer dimension: PVC 1.4mm
No. of conductors:12 x 0.21 mm
Strand per conductor: 0.35 mm²
Length: 50 meter
Conductor material: Copper
Insulation material (with thickness): PVC 0.33mm
Core diameter: 0.75mm
Insulation resistance: Min 200M ohm x km
Maximum dielectric strength: 800V / AC
Temperature range: -20 to +105
°
C
Rated voltage: 12/24V
Rated current: 3 A
