User manual

KEYPAD 16 KEYS METAL

Item no. 1565089

Features:

» Maximum rating: ≥ 24 V/DC, 5 mA

» Contact resistance: ≤ 100 Ω

» Insulation resistance: ≥ 250 MΩ

» Bounce time: max. 3 sec

» The key “5” has a small convex dot for blind people to identify it.

» Stroke time: > 1 ms

» Operation temperature: -40 to +60 ºC

» Electroplating standard:

- Nickel 10 – 15 µ

- Brass 10 – 15 µ

- Chrome 0.2 – 0.5 µ

Salt spray test: 48 – 96 hours

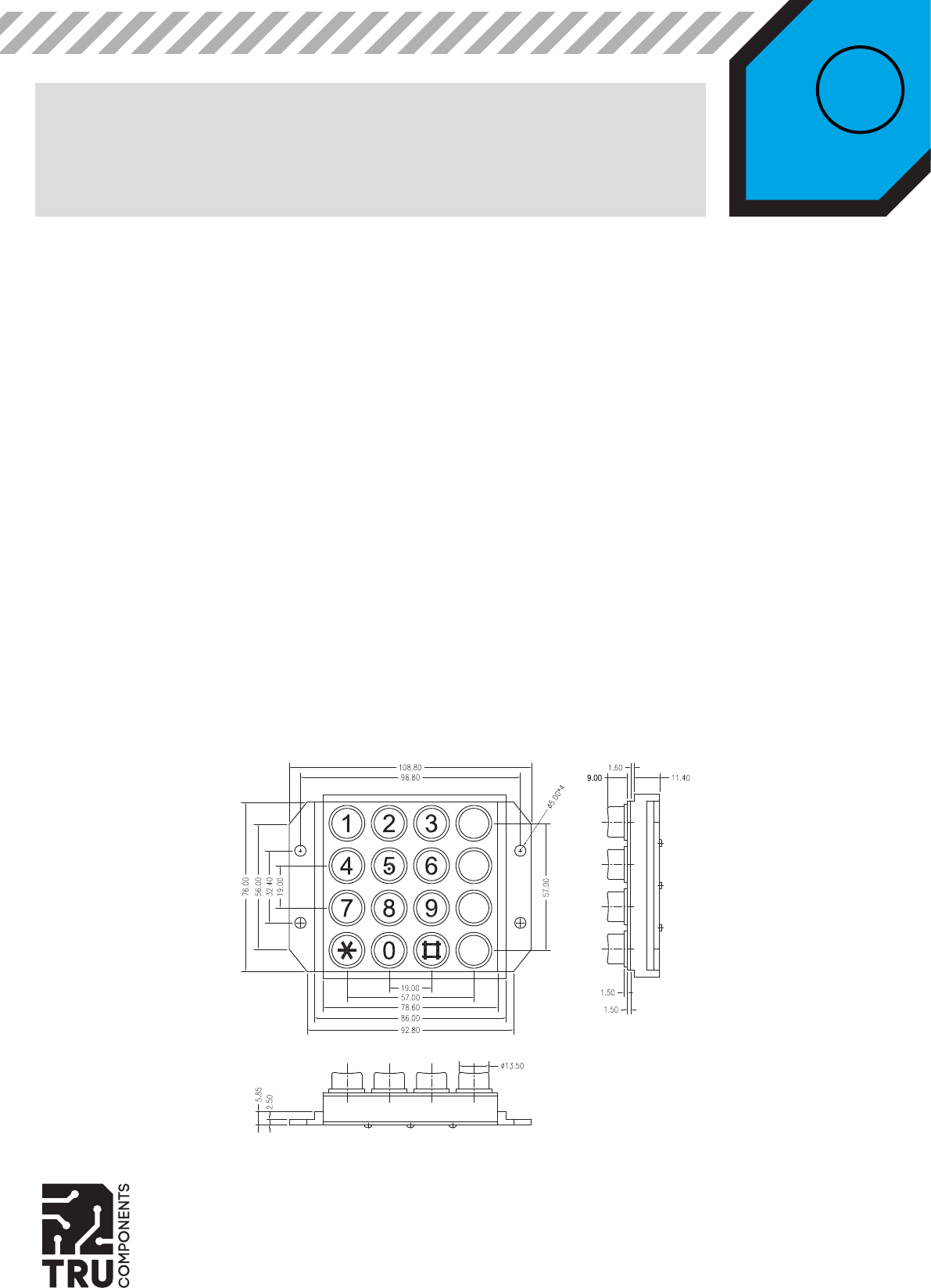

Dimensions:

PAGE 1
GB KEYPAD 16 KEYS METAL Item no. 1565089 Features: » Maximum rating: ≥ 24 V/DC, 5 mA » Contact resistance: ≤ 100 Ω » Insulation resistance: ≥ 250 MΩ » Bounce time: max. 3 sec » The key “5” has a small convex dot for blind people to identify it. » Stroke time: > 1 ms » Operation temperature: -40 to +60 ºC » Electroplating standard: - Nickel 10 – 15 µ - Brass 10 – 15 µ - Chrome 0.2 – 0.
PAGE 2
GB KEYPAD 16 KEYS METAL Item no. 1565089 Output pins: 1 2 5 7 6 4 3 8 e.g.
