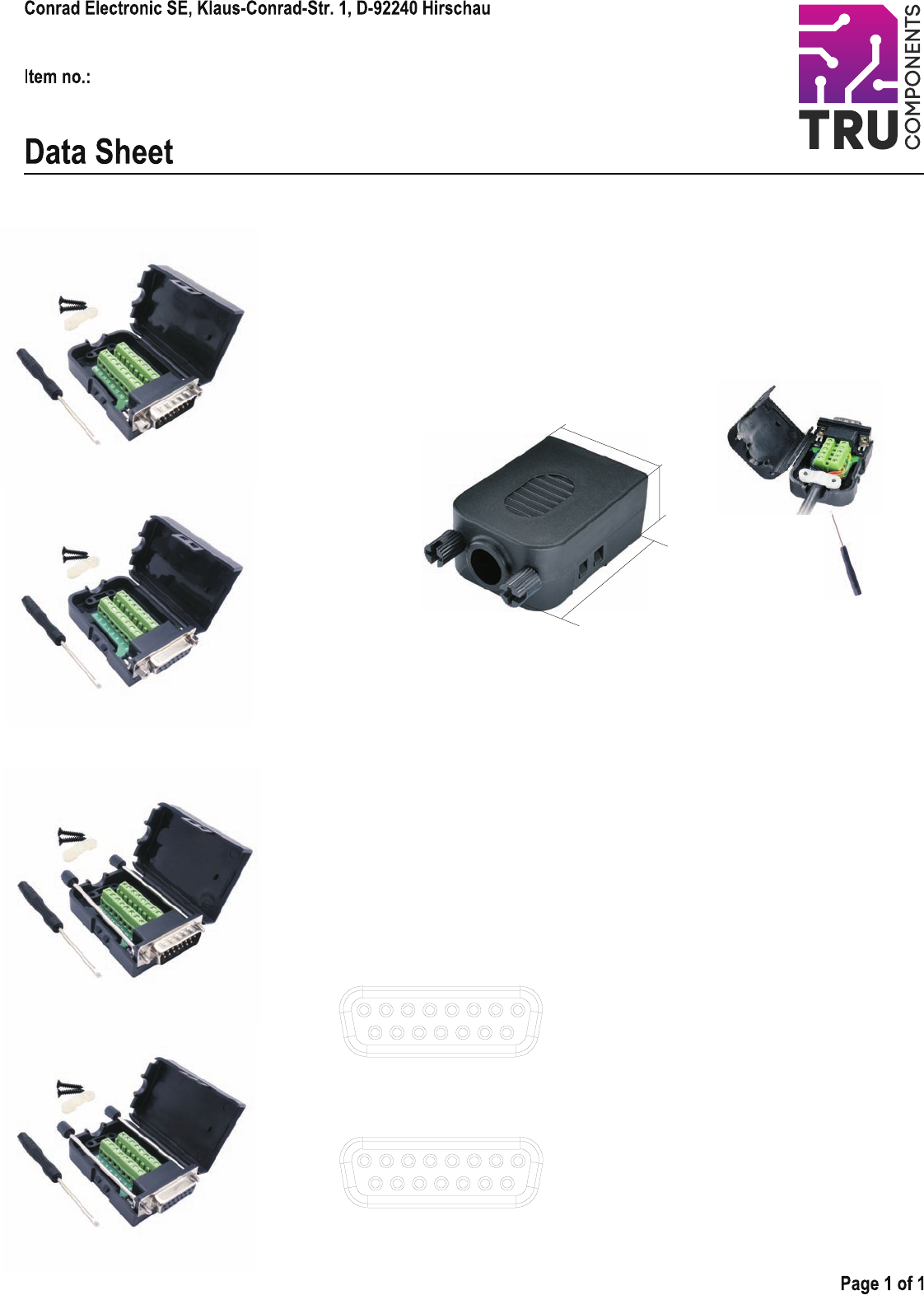

Data Sheet

T1904C095 - Female connector
with locking screw connection
Housing dimension
Male
Female
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RSSI analog input
Enable switch input
Tach signal input
Heading switch input
IrDA output
RS232 output
-V inout
+DC input
Squeal tone output
Ground
Ground
Ground
Ground
Ground
+DC
15-Pin D-sub terminal connector modular
T1904C092 - Male connector with
jackscrew nut connection
T1904C093 - Female connector
with jackscrew nut connection
T1904C094 - Male connector
with locking screw connection
Included accessories
1x Screw driver
1x Cable strain Relief
2x Fastening screw
Material:
Housing: PP
Connector insulator: PBT+30%GF (UL94V-0)
Contact: Brass
Contact plated: Nickel
Connector shell plated: Cu60µ/Ni100-120µ
Technical:
Contact current rating: 5A max.
Insulation resistance: 1000MΩ min. at 500V/DC
Dielectric withstanding voltage: 500V/AC(R.M.S)/1 minute
Operation temperature: -20 ~85°C
60mm
42.5mm
20mm
2108936 / 2108930 / 2108934 / 2108932
8
7
6
5
4
3
2
1
15
1413
12
11
10
9
1
2
3
4
5
6
7
8
9
1011
12
13
1415
