Residential Single and Double Wall Oven Service Manual

A.12 APPENDIX  REPLACING OVEN COMPONENTS
Item Description Item Part # Hardware Description Hardware Part Number(s)
Bracket, Control Assembly RWD-9367 Screw, #8-32 x 3/8, PPHD, INT SEMS, SS 102921 (x2 each)
Clock Assembly RWD-9253 Screw, #8-32 x 3/8, PPHD, INT SEMS, SS 102921 (x4)
Clock Ring Gasket RWD-9450 None None
Control Housing, Upper RWD-9046 None None
CookWheel Knob, Inner RWD-9378 None None
CookWheel Knob, Outer RWD-9377 None None
CookWheel Support Plate RWD-9455 None None
CookWheel Switch Assembly RWD-9256 Screw, #8-32 x 5/8 LG, SEMS, PPHD, SS 102926 (x2)
Display Assembly, Upper, TFT RWD-9294 Screw, #6-32 x 3/8, INT TOOTH, PPH, SS 102911 (x4)
Light Switch 104141 Screw, #6-32 x 3/8, INT TOOTH, PPH, SS 102911 (x2)
Speaker 104214
Screw, SH MTL, #8 x 1/2 Serrated PHTRH
Bracket, Speaker
101688 (x2)
RWD-9567

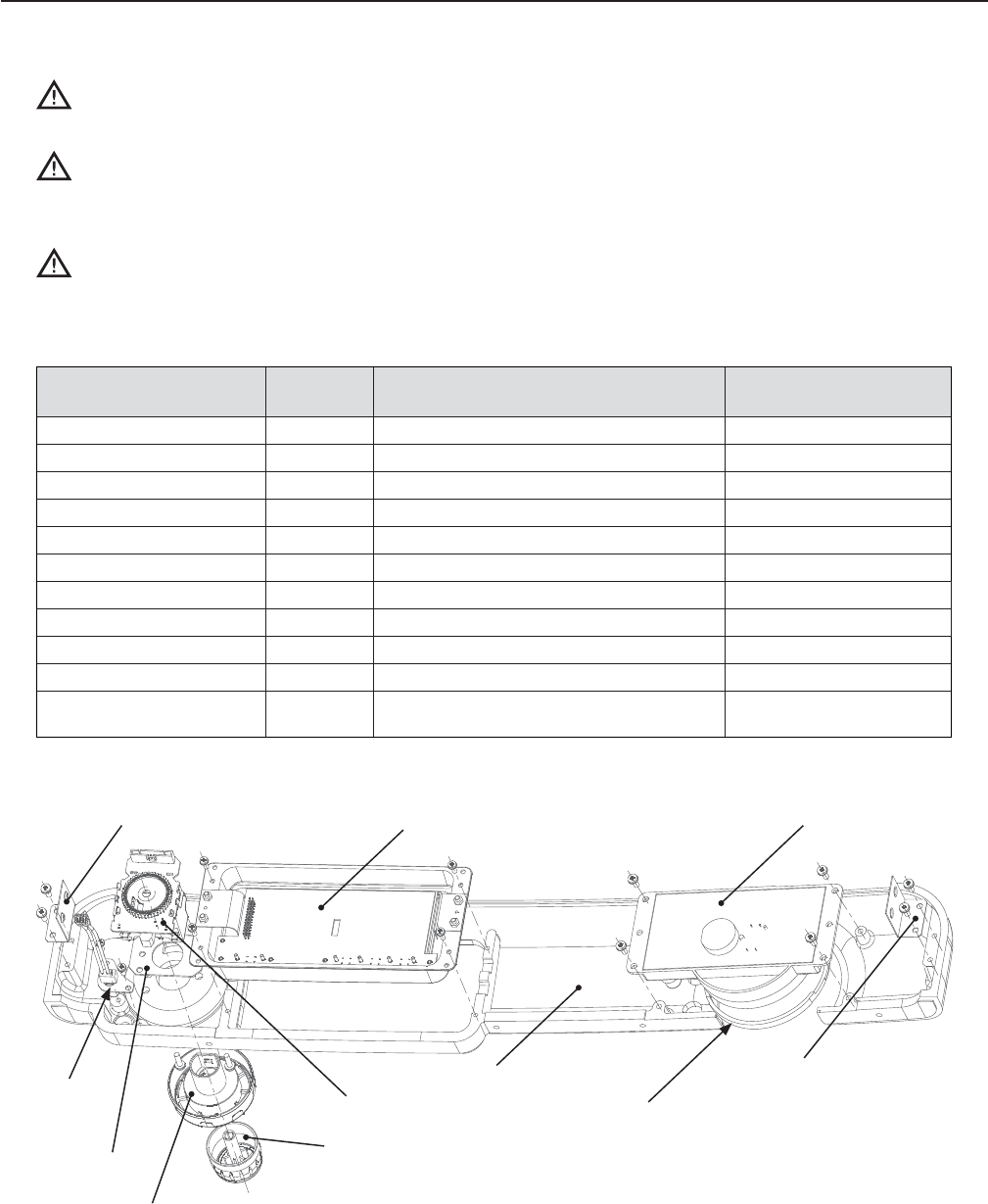

Figure A.5: Control Housing Detail, DWO Gen 1
Display Assembly, Upper, TFT
Clock Assembly
Bracket, Control Assembly
Bracket, Control Assembly
Light Switch
CookWheel
Support Plate
Control Housing, Upper
CookWheel Switch Assembly
CookWheel Knob, Inner
CookWheel Knob, Outer
Clock Ring Gasket
Control Housing Detail
DANGER: Before removing or replacing any oven component, ensure the oven is removed from any
power source (i.e., the breaker is turned off ). Failure to do so can result in serious injury or death.
WARNING: Before removing or replacing any oven component, thoroughly read the safety instructions
found at the front of this manual and in Oven Systems (Section 5) and Troubleshooting (Section 6). Adhere to
all precautions and warnings outlined in these sections, as failure to do so could result in serious injury or death.
CAUTION: Before removing/installing any component, make sure it is disconnected from the wire
harness (where applicable).
