Residential Single and Double Wall Oven Service Manual

APPENDIX  REPLACING OVEN COMPONENTS
A.21

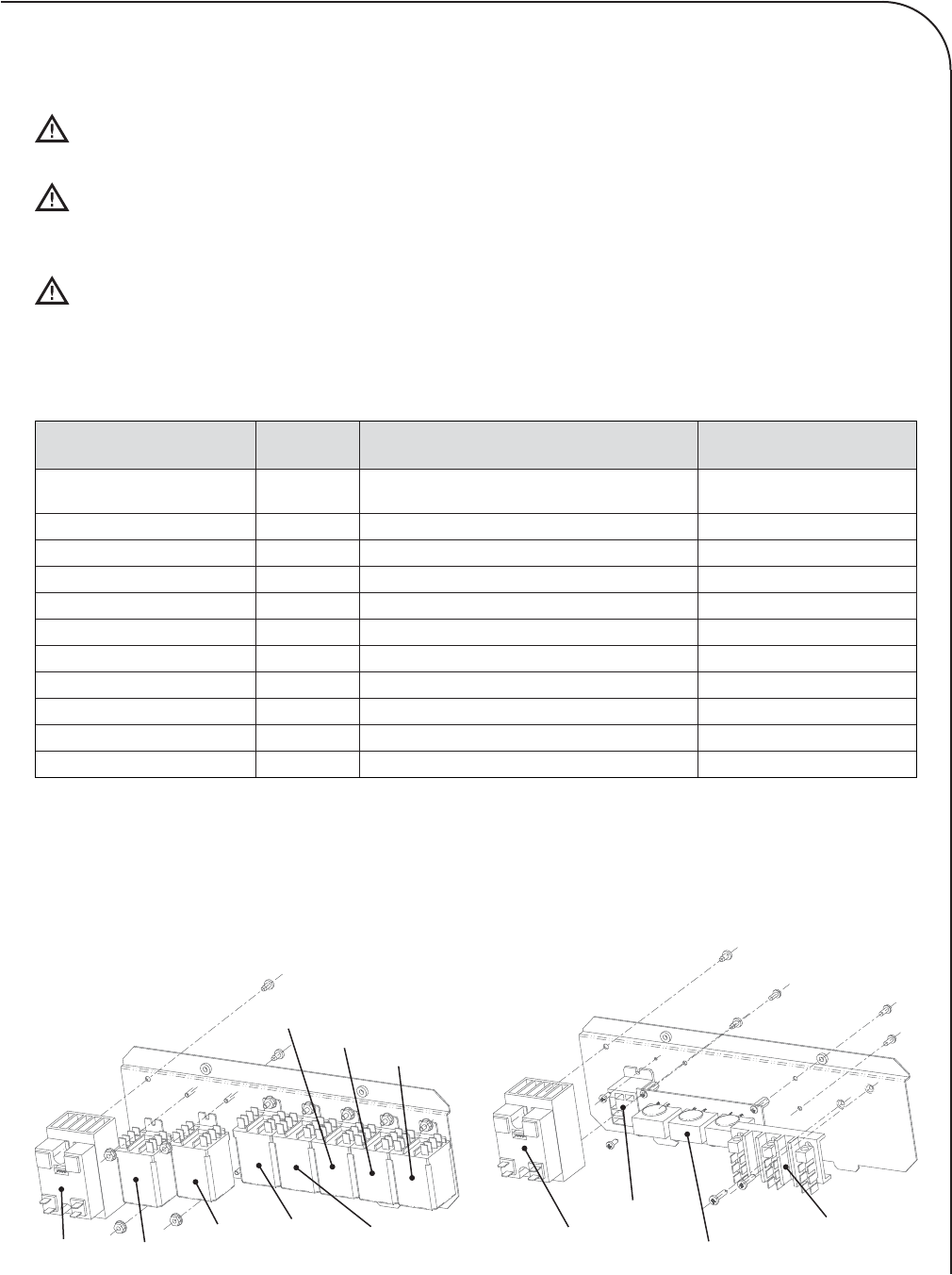

Figure A.16: Relay/Power Assembly Detail, DWO Gen 2 and SWO
Relay, K1
Relay, K9
M.O.V. Filter
Terminal Block
Figure A.15: Relay Assembly Detail, DWO Gen 1
Relay, K1
Relay, K2
Relay, K3
Relay, K4
Relay, K5
Relay, K6
Relay, K7
Relay, K8
Item Description Item Part # Hardware Description Hardware Part Number(s)
M.O.V. Filter RWD-9490
Stando , #6-32 x 5/8, F/F, PLTD
Screw, #6-32 x 1/4 LG, PPH, SS
101951 (x3)
101565 (x3)
Relay, K1 101281 Screw, #8-32 x 3/8, PPH, THD-Forming, PLT 104227 (x2)
Relay, K2 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K3 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K4 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K5 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K6 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K7 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K8 101273 Nut, #6-32, SERR HEX FLNG, SS 100902 (x2)
Relay, K9 104179 Screw, #6 x 1/2, PPHD, DRL-PT, SS 101687 (x2)
Terminal Block 104145 Screw, #8 x 3/4, PPHD, PLT-STL 104178 (x2)
Relay and Relay/Power Assembly Detail, DWO Gen 1, DWO Gen 2,
and SWO
DANGER: Before removing or replacing any oven component, ensure the oven is removed from any
power source (i.e., the breaker is turned off ). Failure to do so can result in serious injury or death.
WARNING: Before removing or replacing any oven component, thoroughly read the safety instructions
found at the front of this manual and in Oven Systems (Section 5) and Troubleshooting (Section 6). Adhere to
all precautions and warnings outlined in these sections, as failure to do so could result in serious injury or death.
CAUTION: Before removing/installing any component, make sure it is disconnected from the wire
harness (where applicable).
