Manual

------------------------------------------------------------------------------------------------------------------------

IMPORTANT NOTES:

• Please thoroughly read and understand these instructions before commencing this installation.

• The thread on the cap for the vacuum source is AN#3. The standard swivel nipple can be changed to a AN#3 fitting if desired.

RECOMMENDATIONS

• Turbosmart recommends that your Blow off valve (BOV) is fitted and adjusted by an appropriately qualified technician

• Turbosmart recommends that a boost gauge be permanently fitted to the vehicle

------------------------------------------------------------------------------------------------------------------------

HOW TO INSTALL YOUR BOV

Please check that the following items have been provided in your EVO Dual port kit.

Quantity

Description

Use

EVO Dual port BOV

Model Specific blow off valve

Port Blanking plug

To blank off a port to convert the BOV to full atmospheric or plumb back

6mm Hose clamps

To secure the vacuum lines to the BOV and the engine

400mm of 5mm Silicone vacuum line

To connect vacuum source to the BOV

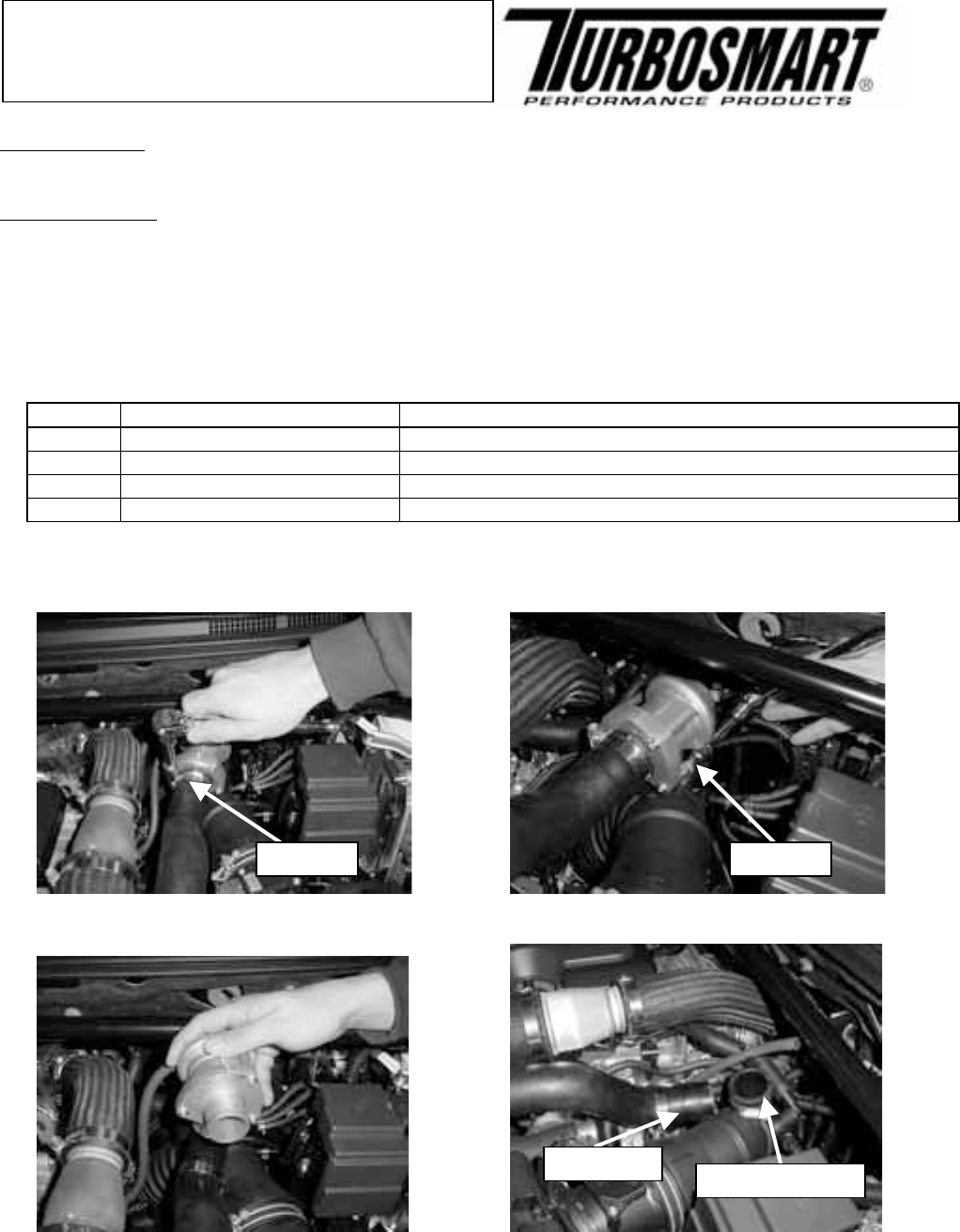

1) Installation on a EVO (Diagrams are from a Mitsubishi Lancer EVO X)

1) Remove the two hose clamps holding the standard BOV to the piping

2) Remove the piping and vacuum line off the standard BOV

Product Name: EVO Dual port

Product Description: Fits Lancer EVO VII – X

(7 - 10)

Product Number: TS-0205-20

Plumb back return

Inlet to BOV

Loosen

PAGE 1
Product Name: Product Description: Product Number: EVO Dual port Fits Lancer EVO VII – X (7 - 10) TS-0205-20 -----------------------------------------------------------------------------------------------------------------------IMPORTANT NOTES: • Please thoroughly read and understand these instructions before commencing this installation. • The thread on the cap for the vacuum source is AN#3. The standard swivel nipple can be changed to a AN#3 fitting if desired.
PAGE 2
3) Remove the standard vacuum line and replace it with the provided silicone vacuum tube. Secure the end with a hose clamp Remove 4) Push provided hose onto vacuum supply barb Install the Turbosmart Dual port BOV in the same orientation as the standard BOV. Secure the hose ends with the standard hose clamps and insert the vacuum line into the vacuum port of the BOV securing it with the supplied spring clamp. Start the engine and check for leaks around the piping.
PAGE 3
IMPORTANT NOTES ON SETTING THE SPRING TENSION - Adjustment to the BOV is made by rotating the cap.
PAGE 4
TURBOSMART ONE YEAR LIMITED WARRANTY Turbosmart is a company built on Customer Satisfaction and Service. That is why all of our products go through regimented test procedures before they are packaged and shipped. Turbosmart stands behind its products for one full year after purchase.
