Dimensions Guide

Updated Key Features
• Lifting Capacity:
• Lifting Height:
• Overall Length w/ Ramps:
• Overall Legth w/ No Ramps:
• Overall Width:
• Runway Tread Width:
• Runway Length:• Runway Length:
• Runway Height:
• Column Height:
• Clerance between Columns:
• Clearance between Runways:
• Outside Runway to Outside Runway:
• Clerance Under Runways:
• Drive• Drive Thru Width:
• Locking Positions:
• Base Plate Size:
• Power:
• Ship Weight:
8,000 lbs.
74.8”
207.3”
175.5”
103.5”
18.7”
165.5”165.5”
4.3”
86”
94.4”
37.2”
74.8”
70”
80”80”
10
10” x 12”
110V-15 Amp / 1PH
1,695 lbs
.
8,000 lbs.
82.3”
225.5”
190.7”
109.4”
18.7”
180.5”180.5”
4.3”
94”
100.3”
42.2”
80.7”
78”
87.2”87.2”
12
10” x 12”
110V-15 Amp / 1PH
1,805 lbs.

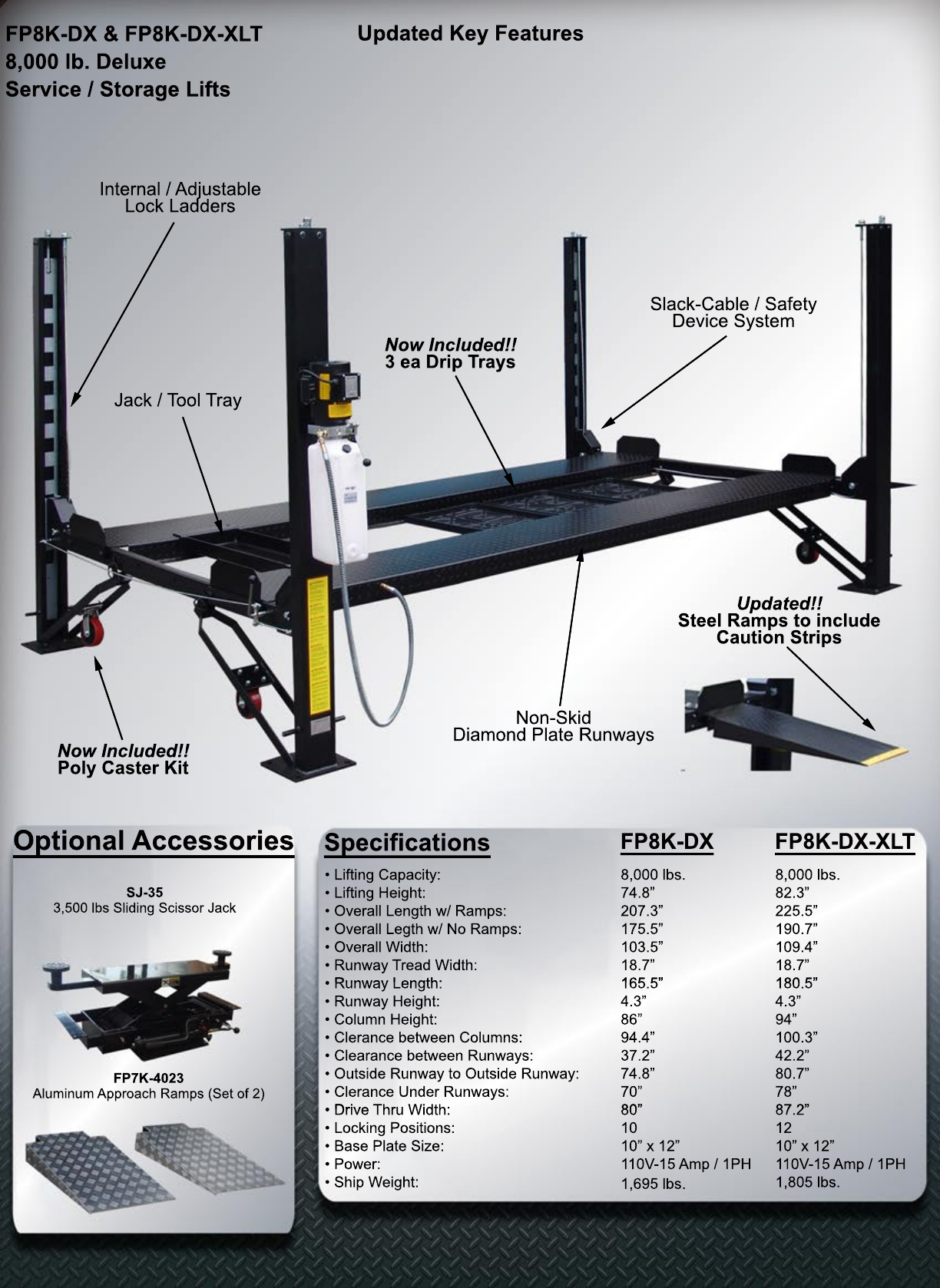

FP8K-DX & FP8K-DX-XLT
8,000 lb. Deluxe
Service / Storage Lifts
SJ-35
3,500 lbs Sliding Scissor Jack
FP7K-4023
Aluminum Approach Ramps (Set of 2)
Internal / Adjustable
Lock Ladders
Slack-Cable / Safety
Device System
Non-Skid
Diamond Plate Runways
Jack / Tool Tray
Now Included!!
3 ea Drip Trays
Now Included!!
Poly Caster Kit
Updated!!
Steel Ramps to include
Caution Strips
