7.2 Typical Operating Circuit
AD0 / SDO

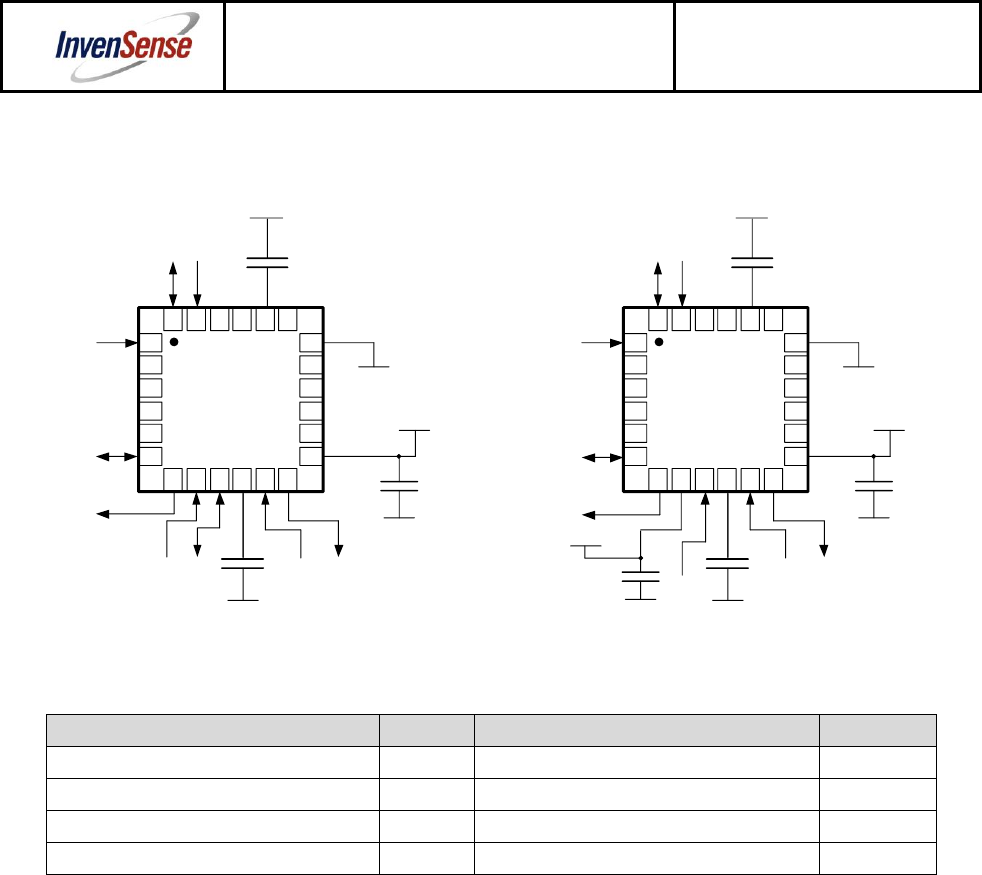

Typical Operating Circuits
7 8 9 10 11 12
13
18
17
16
15
14
6
1
2
3
4
5
24 23 22 21 20 19
MPU-6000
CLKIN
/CS
GND
GND
GND
FSYNC
INT
GND
VDD
SCL / SCLK
SDA / SDI
C3
2.2nF
C1
0.1µF
C2
0.1µF
AD0
7 8 9 10 11 12
13
18
17
16
15
14
6
1
2
3
4
5
24 23 22 21 20 19
MPU-6050
CLKIN
GND
GND
GND
FSYNC
INT
GND
VDD
SCL
SDA
C3
2.2nF
C1
0.1µF
C2
0.1µF
GND
VLOGIC
C4
10nF
AUX_CL
AUX_DA
AUX_CL
AUX_DA
7.3 Bill of Materials for External Components
Component
Label
Specification
Quantity
Regulator Filter Capacitor (Pin 10)
C1
Ceramic, X7R, 0.1µF ±10%, 2V
1
VDD Bypass Capacitor (Pin 13)
C2
Ceramic, X7R, 0.1µF ±10%, 4V
1
Charge Pump Capacitor (Pin 20)
C3
Ceramic, X7R, 2.2nF ±10%, 50V
1
VLOGIC Bypass Capacitor (Pin 8)
C4*
Ceramic, X7R, 10nF ±10%, 4V
1
* MPU-6050 Only.
