MPU-6000/MPU-6050 Product Specification

Document Number: PS-MPU-6000A-00

Revision: 3.4

Release Date: 08/19/2013

23 of 52

7.4 Recommended Power-on Procedure

T

VLGR

VLOGIC

VDD

T

VDDR

All Voltages at 0V

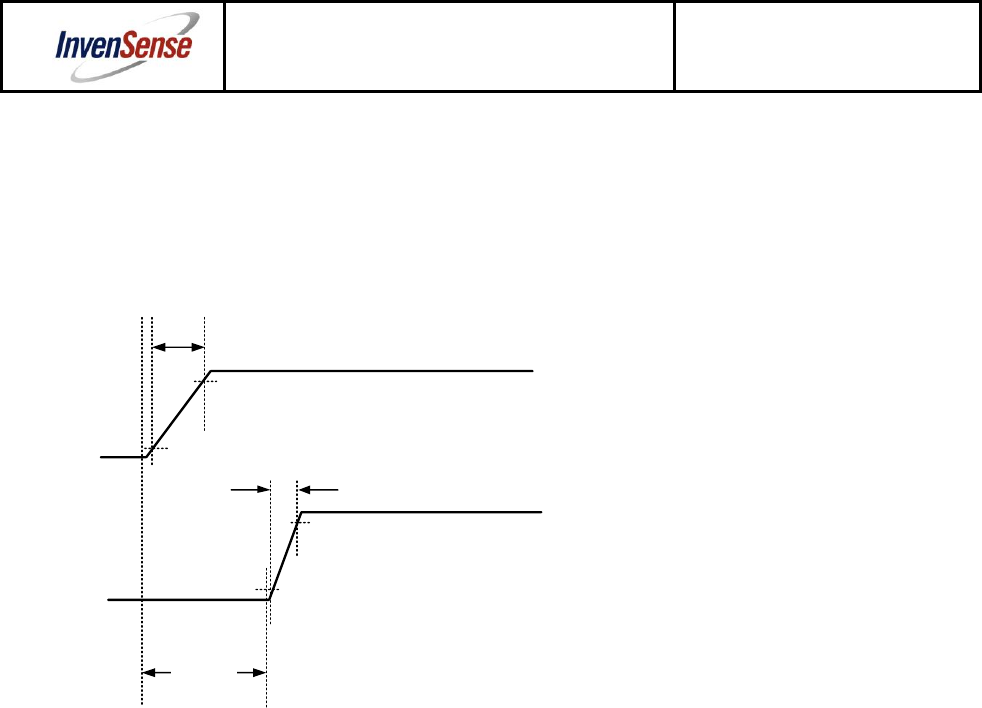

Power-Up Sequencing

1. VLOGIC amplitude must always be ≤VDD

amplitude

2. T

VDDR

is VDD rise time: Time for VDD to rise

from 10% to 90% of its final value

3. T

VDDR

is ≤100ms

4. T

VLGR

is VLOGIC rise time: Time for

VLOGIC to rise from 10% to 90% of its final

value

5. T

VLGR

is ≤3ms

6. T

VLG-VDD

is the delay from the start of VDD

ramp to the start of VLOGIC rise

7. T

VLG-VDD

is ≥0

8. VDD and VLOGIC must be monotonic

ramps

90%

10%

90%

10%

T

VLG - VDD
