Instructions / Assembly

Restore power to ceiling fan and test for
proper operation.
A. HI, MED, and LOW buttons:
These three buttons are used to set the fan
speed as follows:
HI= high speed
Med= medium speed
Low= low speed
B. FAN OFF button:
This button turns the fan off.
C. DOWN LIGHT button:
light.
D. UP button:
Press and release the button to turn the light
ON or OFF. Press and hold the button to set
the desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as the last time it was turned off.
This button controls the down
LIGHT
This button controls the uplight.
10.Operating the Transmitter
9 Vo
lt
Batt
ery
Figure 21
Figure 22

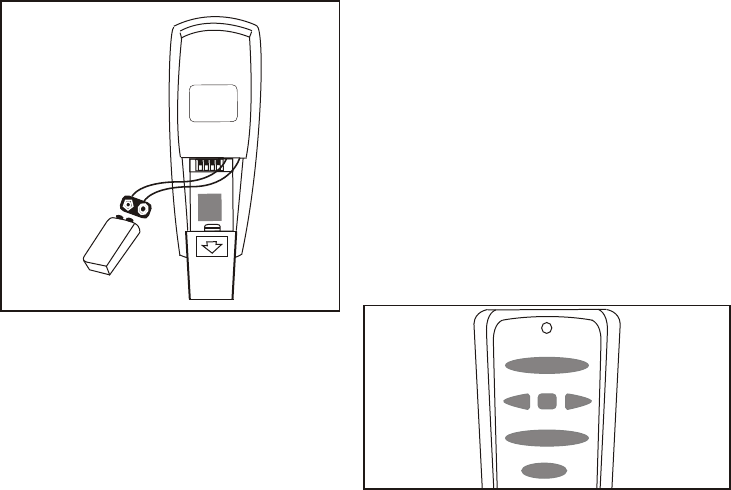

Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove the
battery if not used for long periods. (Fig. 21)
UP LIGHT
DOWN LIGHT
LO
MED
HI
FAN OFF
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, etc.
The Reverse switch is located on top of the
motor assembly. Slide the switch to the Left
for warm weather operation. Slide the switch
to the Right for cool weather operation.
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
Figure 23. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 24. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
