SP2890 900MHz Wireless Outdoor/Indoor Speakers System User’s Manual Please read before using the equipment
INTRODUCTION This 900 MHz wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound in minutes. FEATURES 1. 900 MHz RF technology panel-like speaker system.

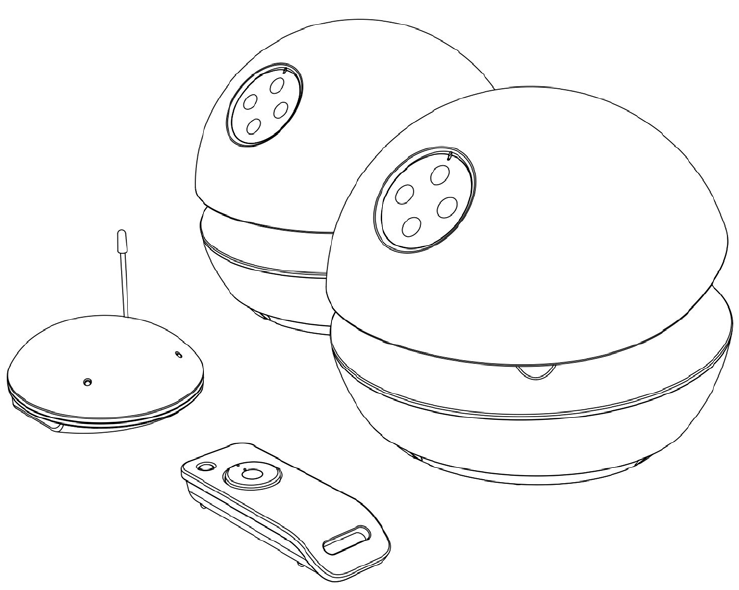

COMPONENT IDENTIFICATION TRANSMITTER REMOTE CONTROL SPEAKER RECEIVERS P.
INSTALLATION TRANSMITTER 1. Insert the antenna tube into the antenna wire. 2. Connect the supplied AC/DC power adaptor to an electrical wall outlet. 3. Plug the AC/DC power adaptor in the DC jack located on the rear of the transmitter. 4. When the AC adaptor is plugged in, the blue POWER LED illuminates. If the blue POWER LED does not illuminate, make sure the adaptor is plugged in. 5.
OPERATION 1. Turn on the audio source (TV or audio component) to which the transmitter is connected with. The green LED on the transmitter will light up. 2. Select the channel (1 or 2) of the transmitter for best performance in your location. 3. Press the “POWER” button on the speaker to turn on the speaker. Press the “AUTO SCAN” button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. 4.
of transmitter, and then move the speakers to other free location. You can re-adjust the tuning control by moving it either channel 1 or 2 of the transmitter, then pressing “AUTO SCAN” button for best reception. When transmitting / receiving over long distances, the signal from the system will become weaker. 7. Switching Off a) For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes.
- Change the position of the channel selector on the transmitter. You must then press the “AUTO SCAN” button on the speakers. - Battery capacity is too low. Replace with the new battery. - Ensure the volume level of speakers is adjusted properly. - The speaker is too far away from the transmitter, move it closer. - The input level of the audio signal is too low. Turn up the volume of the audio source equipment.
This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device. This device must be used with the AC/DC adaptor supplied in the package. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
