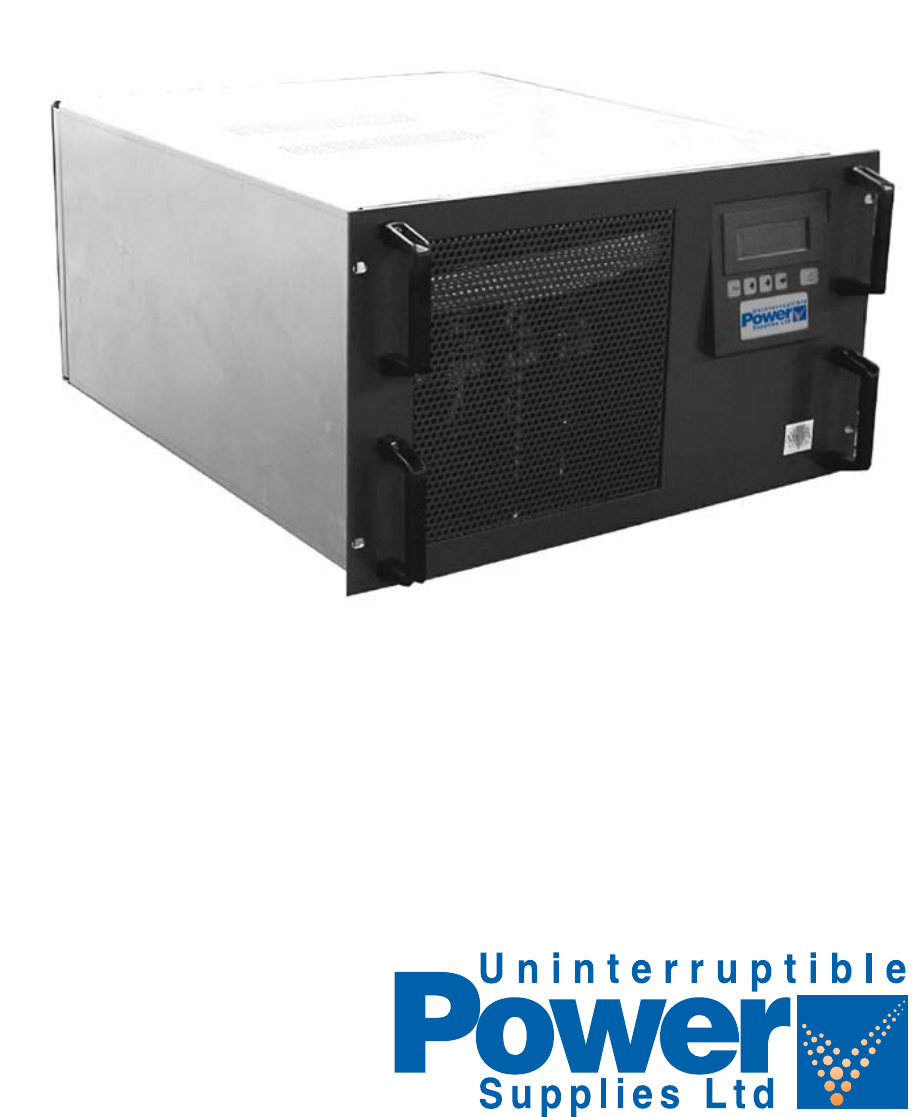

Uninterruptible Power Supply Minipower Plus Rack User Manual UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
Uninterruptible Power Supplies Ltd has taken every precaution to produce an accurate, complete and easy to understand manual and will therefore assume no responsibility nor liability for direct, indirect or accidental personal or material damage due to any misinterpretation of or accidental mistakes in this manual. © 2006 Uninterruptible Power Supplies Ltd This manual may not be copied nor reproduced without written permission of Uninterruptible Power Supplies Ltd.
Document Control ISSUE DATE 1.
UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
Table of Contents Safety 1-1 Description 2-1 Introduction Warranty Extended Warranty Additional Service/Maintenance Support Installation 2-1 2-1 2-2 2-2 3-1 Introduction Receipt of the UPS Nameplate Unpacking Batteries Storage UPS Battery Positioning Front Panel Single Cabinet UPS Installation Expansion of Autonomy Operation 3-1 3-1 3-1 3-1 3-2 3-2 3-2 3-2 3-3 3-4 3-4 3-6 4-1 Commissioning Operation Operating Principles Operating Modes Mains Operation Battery Operation Bypass Operation Basic Operat
Maintenance 5-1 Introduction User Responsibilities Routine Maintenance Troubleshooting 5-1 5-1 5-1 6-1 Potential Problems and Solutions Contacting Service 6-1 6-2 Options 7-1 Specifications 8-1 ii UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
1 Safety BEFORE ATTEMPTING TO INSTALL OR START UP THIS UPS THE USER MUST ENSURE THAT THE SAFETY INSTRUCTIONS IN THIS MANUAL ARE CAREFULLY READ AND OBSERVED BY TECHNICALLY COMPETENT PERSONNEL. KEEP THIS MANUAL WITH THE UPS FOR FUTURE REFERENCE. THIS UPS MUST NOT BE STARTED UP OR PUT INTO USE WITHOUT HAVING BEEN COMMISSIONED BY A FULLY TRAINED AND AUTHORISED PERSON. ALL SERVICING MUST BE PERFORMED BY QUALIFIED PERSONNEL. DO NOT ATTEMPT TO SERVICE THE UPS YOURSELF.
1-2 UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
2 Description 2.1 Introduction Congratulations on your purchase of the MINIpower PLUS. Your new UPS incorporates the latest technological developments in power engineering. High reliability, upgrade ability, low operating cost and excellent electrical performance are only some of the highlights of this innovative UPS solution. Uninterruptible Power Supplies Ltd. specialises in the design, building, installation and maintenance of Uninterruptible Power Systems.
2.3 Extended Warranty The standard warranty may be enhanced by protecting the UPS with an Extended Warranty Agreement (maintenance contract). An Extended Warranty Agreement enhances the standard warranty by providing the following:• Regular preventative maintenance inspections • Guaranteed speed of response to operational problems • 24 hour telephone support • Fully comprehensive (excluding batteries) cover Contact the Service Support Hotline on 0800 731 3269 for further details. 2.
Fax to: 0118 981 5152 www.upspower.co.uk Uninterruptible Power Supplies Ltd. Bacchus House Calleva Park Aldermaston Berkshire RG7 8EN Tel: 0118 981 5151 Name: ............................................................................................ Job Title: ............................................................................................ Company: ............................................................................................ Address: ..................................
2-4 UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
3 Installation 3.1 Introduction This chapter contains all the necessary information for the correct unpacking, positioning, cabling and installation of the MINIpower PLUS UPS. ALL THE OPERATIONS IN THIS SECTION MUST BE PERFORMED BY AUTHORISED ELECTRICIANS OR BY QUALIFIED PERSONNEL. UNINTERRUPTIBLE POWER SUPPLIES LTD.
3.3 Batteries The standard batteries for the UPS are sealed, maintenance free, internally mounted and will typically be connected when the UPS is commissioned. The battery life depends very much on the ambient temperature. A temperature range between +18° and +23°C will achieve the optimum battery life. If the UPS is delivered without batteries, Uninterruptible Power Supplies Ltd.
3.5 Positioning The MINIpower PLUS is a compact and light UPS and can easily be moved to its final position. The UPS should be located where: • Humidity and temperature are within prescribed limits. • Fire protection standards are respected. • Cabling can be performed easily. • Access is available for service or periodic maintenance. • Required cooling air flow is possible. • The site air conditioning system has sufficient capacity. • Dust or corrosive/explosive gases are absent.
3.6 Front Panel 1. Alphanumeric Display 2. Exit function or silence acoustic signal 3. Scroll backwards or increase value 4. Scroll forwards or decrease value 5. Confirm function or access menu 6. ON/OFF switch 7. Multicolour operating status indicator (green/yellow/red) Figure 3.2: Front Panel 3.7 Single Cabinet UPS Installation 1. Input/Output cables 2. Input/Output plug 3. Input fuse 4. RS232 serial interface (9-pin female) 5. Logic signals outlet (9-pin male) 6.
1. Wire up the Input-Output connector using insulated cable (min. 2.5mm2). 2. Insert the connector into the plastic housing and secure using the screws supplied. Secure the wires to the housing using the cable grip. 3. Remove plug cover by removing its screws. 4. Put the Input-Output connector into the plug [9] on the rear of the UPS, and secure to its case using the screws supplied (Figure 3.3). 5. Check all UPS loads are OFF and connect them to the output socket. 6.
Figure 3.5: Terminals 3.8 Expansion of Autonomy Ensure the UPS has been switched off and disconnected from the mains supply before proceeding with connections The UPS is complete with connections for additional battery cabinets. One or more extra battery cabinets can be fitted to a single cabinet UPS as follows: 1. Loosen screws 1 and 2, but do not unscrew them completely. 2. Slide the protective casing so that the connectors located inside the box are completely accessible. 3.
4 Operation 4.1 Commissioning The MINIpower PLUS UPS is a high quality electronic machine that must be commissioned by a fully trained and authorised Uninterruptible Power Supplies Ltd. field service engineer before being put into use. The commissioning of the UPS involves the connection of the UPS and battery, the checking of the electrical installation and operating environment of the UPS, the controlled start-up and testing of the UPS and customer training.
4.3 Operating Principles When the mains supply is present, the input voltage is filtered and rectified by a special input stage (power factor corrector) which optimises the use of the mains supply, so that the power factor becomes practically unitary, and compensates for any voltage fluctuations. This stage supplies the inverter even in conditions of very low mains voltage.
4.4 Operating Modes There are three main operating modes • Mains operation • Battery operation • Bypass operation 4.4.1 Mains Operation This is the normal operating condition: • The mains supply is converted to DC by the power factor corrector • The inverter reconstructs a sinusoidal voltage from the DC supply • The output filter provides smoothing of the output voltage • The batteries are continually charged 4.4.
4.5 Basic Operation 4.5.1 Switch On Press button Display shows The status indicator shows starting (red, yellow, green) The display shows the operating status 4.5.2 Switch Off With the UPS operating normally (example) Press button for a few seconds The acoustic warning signal sounds repeatedly and the UPS switches off after 5 seconds.
4.6 Displays and Alarms The main messages provided by the alphanumeric display in the three different operating modes are shown below. UPS On Mains Indicates normal operating status, when mains voltage is present. On Battery Indicates that there is no mains power and the UPS is using its batteries to supply power. On By-pass Indicates that by-pass operation has been turned on: the output of the UPS is connected directly to the mains.
4.6.1 Warning Signals Indication and Sound Message Description Solid Green No Sound UPS on Mains IN xxxV Normal operation. Mains OK and load within limits. Fast flashing Green UPS on Mains No sync mains xx.xHz Frequency of the output voltage not synchronised with the input voltage.
4.7 Customising the Operating Mode 4.7.1 Button Functions The buttons on the front panel of the UPS are used to access various menus Button Function • Exit a function without modifying it • Go up a menu level • Exit the main menu and return to status display • Silence the buzzer • Select previous function • Increase a value • Select a new item within the function (e.g. go from DISABLED to ENABLED) • Select next function • Reduce a value • Select a new item within the function (e.g.
4.8 Accessing the Menus 4.8.1 Main Menu With UPS operating normally, (example) Press . Display shows the Main Menu: UPS Status UPS Setup Events Programming Tools and 4.8.2 to select the chosen section: UPS Status UPS Info Output Input Batteries History Data Misc and to select the chosen section: UPS Info. Mod POut Max SWVer. S/N Installed Modules Faulty Modules xxxx xxxx xxxx xxxxxxxxxx x x Name of UPS Max.
Input Power Appar.Pow. V RMS I RMS Peak Current Frequency I Crest factor Power fact. xxxxx xxxx xxxx xxxx xx xx x x Active Power (W) Apparent Power (VA) Voltage (V rms) Current (A rms) Current (A) Frequency (Hz) Peak current/rms current Power Factor Voltage Residual Cap. Discharge Count Usage Cal. xxxxx xxxx xxxx xxxx dd/mm/yyhh:mm Ext.
Output Voltage Frequency N+x Redundancy Set UPS Output Voltage (V) Set UPS Output Frequency
Bypass Bypass Enable Forced Mode DIP Speed Off-Line Mode If enabled, the UPS manages bypass operation automatically. If disabled, the UPS will never switch to bypass and will switch off in the event of sustained overload or fault. If enabled, the UPS is set to premanent bypass condition. When Forced Mode is disabled, this alters the speed of bypass intervention. SLOW: for loads which aremay cause high peak demands and are insensitive to input voltage disturbance. STANDARD: normal condition.
Batteries Capacity Manag. and ADVANCED MODE: The end of autonomy warning is based on the power being drawn by the load and is displayed as remaining autonomy time. SIMPLE MODE: The end of autonomy warning is calculated from the battery terminal voltage.
Clock Setup 26/07/06 - 10:01:05 Use , and chosen setting. to select and modify the Operator Panel Language Keyboard Beep Display Backlight Sets the display language Enables/disables keyboard beep Fixed: Always ON Timed: Switches OFF after period of inactivity Disabled: Always OFF Sets display contrast Sets password to enable access to UPS settings Display Contrast Password Change 4.8.
Restart Delay Duration (seconds) of the signal warning that the UPS is about to restart. Percentage of battery charge below which the UPS will NOT automatically restart. Min Autonomy Shutdown Delay 4.8.6 Duration (seconds) of the signal warning that the UPS is about to shutdown. Tools Signalling Test LCD Display Test Battery Test Battery Calibration and to select the chosen section: Signalling Test LCD Display Test Battery Test Battery Calibration Tests the warning lights.
5 Maintenance 5.1 Introduction ALL THE OPERATIONS IN THIS SECTION MUST BE PERFORMED BY AUTHORISED ELECTRICIANS OR BY QUALIFIED INTERNAL PERSONNEL. TO ENSURE OPTIMUM OPERATION OF THE MINIpower PLUS SERIES UPS AND CONTINUOUS AND EFFICIENT PROTECTION OF THE CONNECTED LOAD IT IS RECOMMENDED THAT THE OPERATIONAL PARAMETERS AND CALIBRATIONS OF THE UPS AND THE BATTERIES ARE CHECKED EVERY 6 MONTHS. 5.
• Static switch operation. • Battery status. • Load characteristics. • Integrity of alarm and monitoring systems. • Operation of all installed options. Preventative maintenance inspections form an integral part of all Extended Warranty Agreements (maintenance contracts) offered by Uninterruptible Power Supplies Ltd. For further details on Extended Warranty Agreements please refer to section 2.3.
6 Troubleshooting 6.1 Potential Problems and Solutions Problem Possible Solution When the UPS is switched on, the buzzer sounds and the red warning light makes alternating short-long flashes, then the UPS switches off after 15 seconds The connection of the neutral conductor is incorrect: swap the connections of the neutral and phase input leads, or exclude the neutral sensor. The UPS works but a short beep is heard every 12 seconds and the yellow warning light is lit without flashing.
6.2 Contacting Service Uninterruptible Power Supplies Limited has a service department dedicated to providing routine maintenance and emergency service cover for your UPS. If you have any queries regarding your UPS please contact us. Uninterruptible Power Supplies Ltd.. Bacchus House Calleva Park Aldermaston Berkshire RG7 8EN Tel: 0118 981 5151 0800 7313269 Fax: 0118 981 5152 Email: service@upspower.co.uk We recommend that your UPS is protected by an Extended Warranty Agreement (see section 2.
7 Options Non available.
7-2 UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
8 Specifications Construction Model 1250 2500 3750 5000 Weight (Kg.) 23.5 34 43 53 Size (mm) (WxHxD) Technology 19” Rack 6U 483.5 x 266 x 600 PWM high frequency both for input stage and output stage. Microprocessor control logic Expandability Optional upgrading to configurations with higher power by fitting one or more extra power modules inside the same cabinet, up to a maximum of 4.
Electrical Input Model 1250 Voltage 2500 3750 5000 184V to 264V with nominal load 100V to 264V with 50% nominal load Frequency 50 or 60Hz ± 2% autosensing and/or selected by operator Current (Nom.) 4.6A 8.9A 13.2A 17.7A Current (Max.) 5.75A 11.2A 16.6A 22.2A Current Distortion <3% THD Power Factor > 0.99 at 20% nominal load Inrush Current 100% of nominal current Phases Single Line Fuse 25AF Battery Charger 0.
Output When Running on Battery Power Model 1250 2500 Nominal Output Voltage 3750 5000 230 V ± 1% Nominal Output frequency 50 Hz / 60Hz synchronised (autosensing and/or as selected by operator) Output VA 1250 2500 3750 5000 Output W with 0.7 pf linear/non-linear load 875 1750 2625 3500 THD < 1% Overload Capacity 160% for 15s Allowable load pf 0.7-1.
Bypass Model 1250 Type 2500 3750 5000 Static and electromechanical Switchover time Zero Reference Standards Model Safety Electromagnetic compatibility Typical Performance 8-4 1250 2500 3750 5000 Conforms to standard EN 62040-1-1 Immunity: Conforms to standard EN 50091-2 (class A) Emmisions: Conforms to standard EN 50091-2 (class B) Conforms to standard EN 62040-3 UPS313-01-00 MINIpower PLUS (Rack) User Manual, Dated 01-08-06
