UAD System Manual - 48 - Chapter 6: UAD Meter & Control Panel
CHAPTER 6
UAD Meter & Control Panel
Overview
The UAD Meter & Control Panel application is used to
monitor UAD device resources, confirm the UAD system is
operating properly, and configure the global UAD
Powered Plug-Ins system parameters.
The UAD Meter window displays the current DSP, pro-
gram, and memory status of the UAD hardware in real-
time. Figure 7 shows how the UAD Meter appears on when UAD-2 devices
are installed in the system.
The UAD Control Panel Window (page 51) has multiple panels that display
and modify various system, plug-in, and configuration parameters.

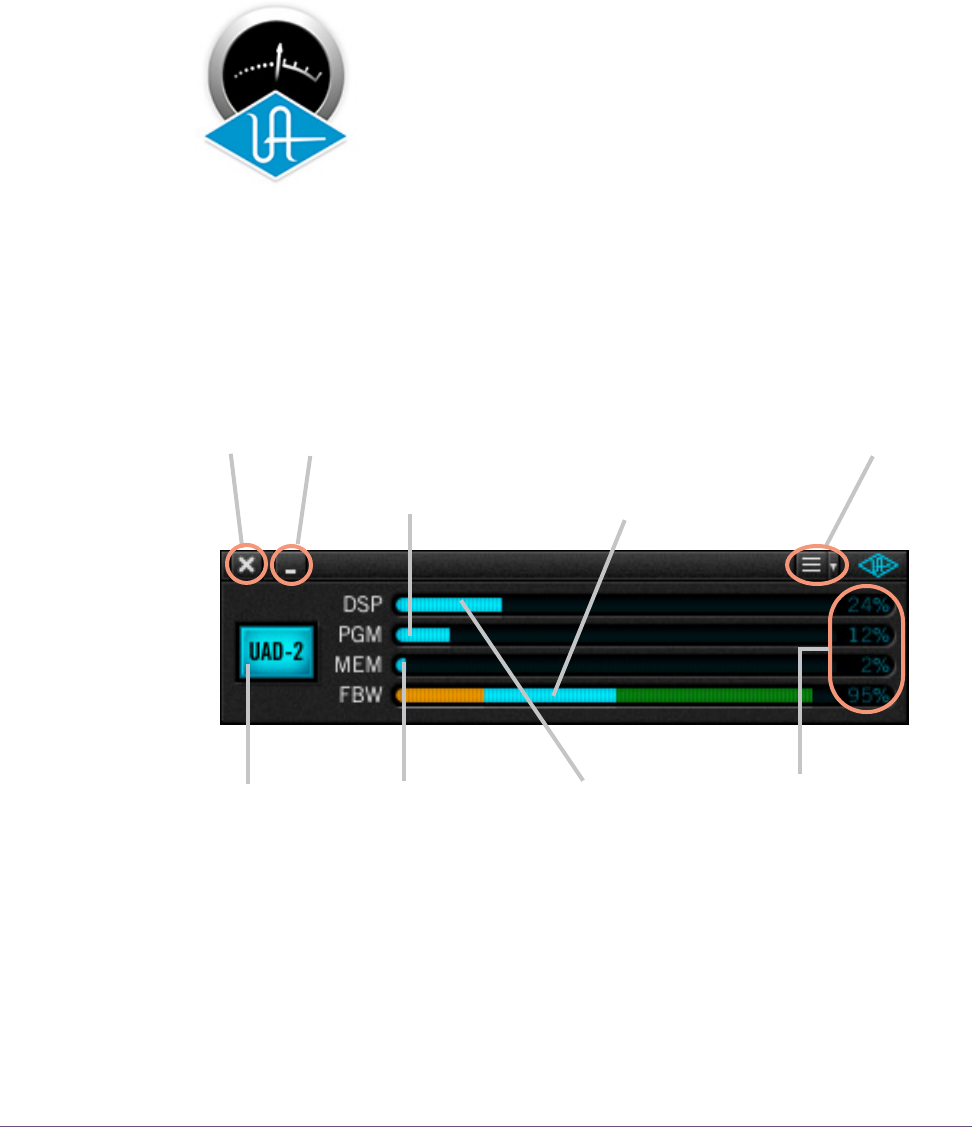

Figure 7. The UAD Meter window
Quit Minimize Control Panel menu button
Disable current
DSP usage gauge Averaged loads
Program memory gauge
Memory gauge
plug-ins button
(Satellite/Apollo only)
FireWire Bandwidth gauge
