UAD System Manual - 74 - Chapter 7: Using UAD Powered Plug-Ins

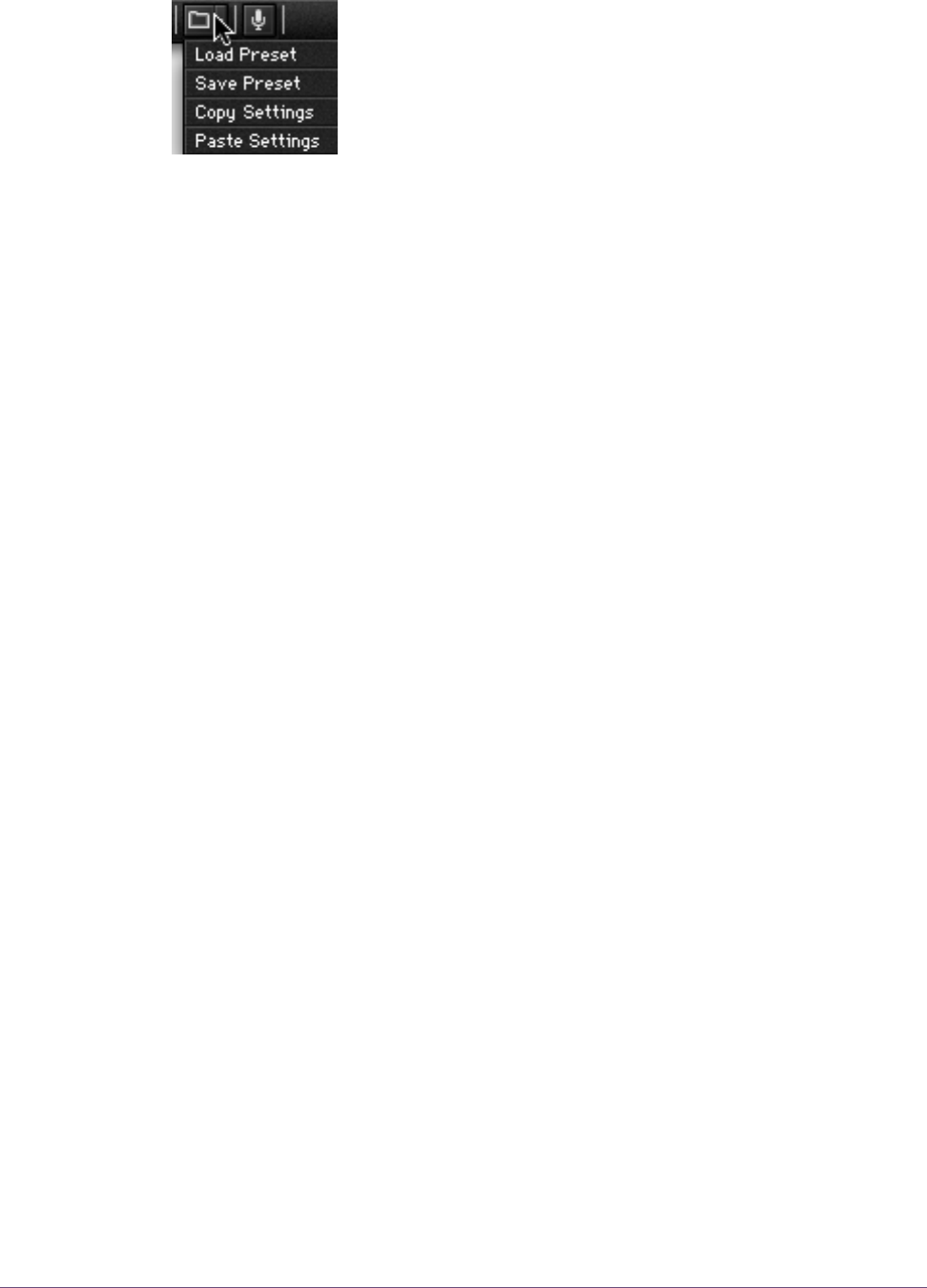

Settings Menu The Settings menu provides a convenient way to manage

your UAD plug-in parameter settings. To select the func-

tions, click the folder icon in the Toolbar, then select an ac-

tion from the drop-menu that appears.

The Settings load/save feature supports presets but not

banks. To load and save banks, use the host’s bank management feature (if

available).

Note: UAD plug-in settings are saved within a project session file by the host

software, and settings are recalled when the project file is loaded. This occurs

automatically without using the preset load/save feature.

Preset/Settings

Compatibility

Load/save and copy/paste of parameter values between the same UAD plug-

in type is supported. You can also load/save/copy/paste between “SE” and

“full” plug-ins of the same type, for example between UAD Neve 33609 and

UAD Neve 33609SE when you need to squeeze out a bit more DSP perfor-

mance without losing your settings.

Preset Families

Functions in the menu are also supported between CS-1 “family” plug-ins. Pre-

set load/save and settings copy/paste are all interchangeable within the

UAD CS-1 family, which includes CS-1, DM-1, DM-1L, EX-1, and RS-1.

Load/Save

Preset

When the Load Preset or Save Preset function is selected, the standard oper-

ating system load/save file dialogs are presented. Preset files can then be

loaded (if the plug-in is the same type), or saved to any disk location.

Default Preset Locations

When the load/save functions are used, the OS load/save file dialogs de-

fault to the standard UAD preset location. Although UAD presets can be

loaded from (and saved to) any disk location, using the default location is a

convenient method to organize all your presets in one location.

When saving, the Presets folder is created if it doesn’t already exist. A sub-

folder with the UAD plug-in name is also created, so presets for the same plug-

in are all in the same folder. When loading presets, the open file dialog looks

inside the subfolder for that plug-in.
