ATLAS OCAP 5-Device Remote Control with Learning Users Guide PREPROGRAMMED FOR YOUR SET-TOP BOX
TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Key Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Device Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup Codes for DVR/PVR Systems . . . . . . . . . . . . . . . . . . . . 43 Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Setup Codes for TVs (DLP) . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Setup Codes for TVs (HDTV) . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Setup Codes for TVs (LCD) . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Setup Codes for TVs (Plasma) . . . . . . . . . . . . . . . . . . . . . . . .
INTRODUCTION The Atlas OCAP 5-Device Remote Control with Learning by Universal Electronics is our latest generation universal remote control. Its sophisticated technology allows you to consolidate up to five of your original home entertainment remote controls into one easy-touse product.

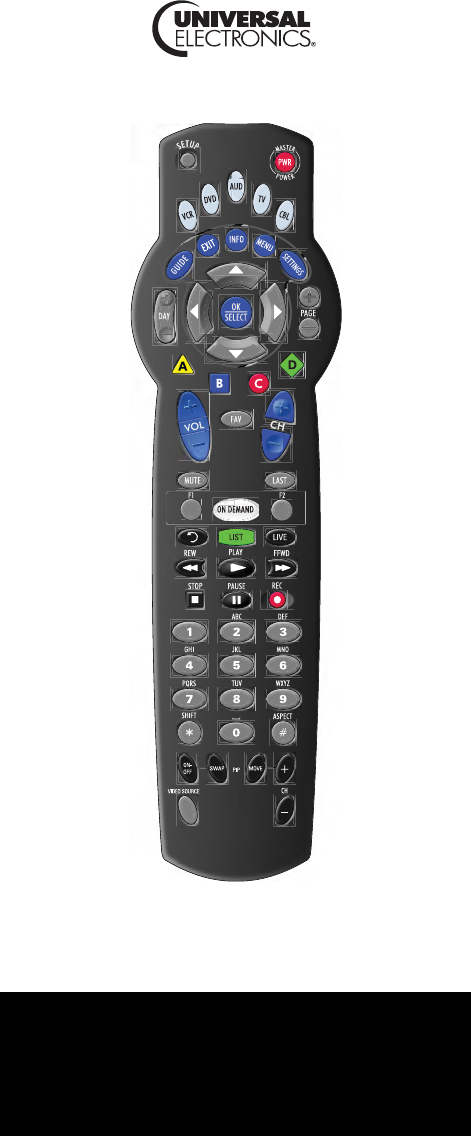

FEATURES AND FUNCTIONS Use the illustration below to locate features on the Atlas OCAP 5-Device Remote Control with Learning and then study the Key Charts (on the next three pages) to learn how they function. To find out what type of devices can be controlled by each device key after programming, see “Device Table” on page 8 . www.urcsupport.
Key Charts Key Function Use SETUP for all programming sequences. Also use to turn backlighting on and off, if applicable. Press PWR once to turn on or off a home entertainment device. For MASTER POWER control, see “Using the Master Power Key” on page 22. Press VCR, DVD, AUD, TV, or CBL once to select a home entertainment device to control. Also see “Device Table” on page 8.
Key Function Use VOL+ (or VOL-) to raise (or lower) the audio volume. Use FAV to cycle through your favorite channels stored in your cable converter. Use CH+ (or CH-) to select the next higher (or lower) channel. For DVD players, use these keys to skip forward (or reverse) through chapters. For amplifiers/receivers, use these keys to select the next higher (or lower) preset station. Press MUTE once to turn the sound off or on. Press LAST once to recall the last channel.
Key Function Press ASPECT once to change the aspect ratio of the show you are watching. (Not available on all set-top boxes). Press SHIFT to access additional cable features (see your cable converter’s manual). Use PIP ON-OFF to switch the PictureIn-Picture feature on or off (if available on your TV or cable service). Use PIP SWAP to switch images and sound between the main and window pictures (if available on your TV or cable service).
Device Key Controls these types of devices Television Cable Box (Converter) or Satellite Receiver INSTALLING BATTERIES ❶ ❷ ❸ 1. 2. 3. 4. NOTE: On the back of the remote control, push the tab and lift off the battery cover. Locate the two (2) enclosed AA batteries. Match the + and - marks with those in the battery case, then insert them. Align the covers keys with the cases holes and press the cover back into place. The tab should click when the cover is locked.
PROGRAMMING DEVICE CONTROL The Atlas OCAP 5-Device Remote Control with Learning is preprogrammed to operate the cable box (converter) provided by your cable system, an RCA TV, a Toshiba DVD player, an RCA VCR, and a Pioneer audio receiver. To control devices other than the default brands, perform the following steps; otherwise skip this section. NOTES: For control of a Combo device (for example, a TV/VCR combo), skip this section and perform the instructions on “Setting Up a Combo Unit” on page 11.
5. Repeat steps 1 through 4 for each device you want the remote control to operate. For future reference, write down each working device code in the boxes on the following page.
NOTE: (for example, TV/VCR). If you perform this procedure correctly, the VCR key will blink twice. If the VCR key did not blink twice after entering the codes last digit, repeat steps 2 through 3 and try entering the same code again. If you’ve located a setup code that works for your combo device (for example, a TV/VCR Combo) and a separate TV code is also listed, you’ll need to program this code into the remote control to access volume control (see “Programming Device Control” starting on page 10). 4.
3. Enter 9 9 1. The TV key will blink twice. 4. Aim the remote control at the TV and press PWR once. 5. Press and release the CH+ key continuously, then stop when the TV turns off. NOTE: In the search mode, the remote control will send IR codes from its library to the selected device, starting with the most popular code first. Press PWR. The TV should turn on, then press SETUP to lock in the code. 6.
CHECKING THE CODES If you have set up the Atlas OCAP 5-Device Remote Control with Learning by searching for your device code (on the previous page), you may need to find out which four-digit code is operating your equipment. For example, to find out which code is operating your TV: 1. On the remote control, press TV once; it will blink once. Then press and hold SETUP until the TV key blinks twice. 2. Enter 9 9 0. The TV key will blink twice. 3. To view the code for the first digit, press 1 once.
• Learning capacity is approximately 16 to 25 keys, depending on the code being learned. • Certain device functions are not learnable including multi-frequency types, some high frequency ones, and other unusual formats. • For optimum learning, avoid high levels of ambient light such as natural sunlight or energy-efficient fluorescent lights. NOTE: Please have your original remote controls handy before programming learning.
NOTE: 6. the key on the original remote until the Atlas OCAP 5-Device Remote Control with Learning’s LED blinks twice. If the LED displays one long blink, a learning error has occurred. Try repeating this step again until a successful capture occurs. If the function is still not captured, press and hold SETUP to exit programming and review the “Learning Precautions” on the previous page. If needed, also see “Troubleshooting” on page 25. After review, start programming again at step 1.
Deleting All Learned Keys in a Specific Mode NOTE: If more than 15 seconds pass between key presses, the remote exits programming. 1. Press and hold SETUP until the last-selected mode key blinks twice, then press 9 7 5. 2. 3. Press a mode key twice (i.e., VCR, DVD, AUD, TV, or CBL) to clear all the learned keys for that mode. The LED blinks twice. Repeat step 2 for another mode or press and hold SETUP to exit programming.
Locking Channel Control to CBL 1. On the remote control, press CBL once; it will blink once. Press and hold SETUP until the CBL key blinks twice. 2. Enter 9 7 3.The CBL key will blink twice. 3. Press CH+ once. The CBL key will blink twice. Now, regardless of what mode you select (except AUD), the channel keys will only change channels on your cable converter.
3. Press VOL- once. The last-selected device key will blink four times. 4. Repeat steps 1 through 3 for each device you want volume to be unlocked. Now, after you select a device that has volume unlocked (e.g., CBL), pressing VOL+, VOL-,or MUTE, will control only that device’s volume. Unlocking All Volume Control (Global Volume Unlock) NOTE: Performing these instructions will set independent volume control for all programmed devices. 1.
PROGRAMMING CABLE ID LOCK The Atlas OCAP 5-Device Remote Control with Learning is locked at the factory to operate your cable provider’s set top box. However, if you have another brand or model of cable converter or satellite service that you would like to control, then you’ll need to perform the following steps to unlock the ID Lock, enter a new manufacturer’s code, and lock the ID Lock again. 1. Turn on the cable converter. 2. On the remote control, press CBL once; it will blink once.
Programming a Macro Key 1. On the remote control, press and hold SETUP until it blinks twice. 2. Enter 9 9 5. The SETUP key blinks twice. 3. Select a macro key (for example, F1) and press it once. Press the key sequence you want to program into the macro. For example, to turn on your TV and raise its volume, press TV followed by VOL+. 4. NOTE: 5. 6. NOTE: You can program up to 15 key presses into one macro. Press and hold SETUP until it blinks twice.
USING THE MASTER POWER KEY The Atlas OCAP 5-Device Remote Control with Learning has a unique feature that allows you to sequentially turn up to five of your home entertainment devices on or off with a single key press. NOTE: MASTER POWER (PWR) only works in the CBL mode. If it is not programmed, only the cable converter will turn on or off. In any other mode, pressing MASTER POWER (PWR) once will turn the selected device on or off. Programming the Master Power Key 1.
Using the Master Power Key 1. After programming, point the remote control at the devices. Press CBL once. 2. Press PWR once to sequentially turn the programmed home entertainment devices on or off. You will see the devices turn on or off according to the programmed sequence. Clearing the Master Power Key 1. On the remote control, press and hold SETUP until the last-selected device key blinks twice. 2. Enter 9 9 5. The last-selected device key blinks twice. 3. Press and release PWR. 4.
3. Press AUD once, then press VCR once. The VCR key will blink twice. The VCR key is now ready to be programmed for your second audio device. See “Programming Device Control” on page 10. To re-assign other device keys, repeat these and substitute the key sequence using the following chart: NOTE: Only one device can be assigned to an unused device key at a time.
2. Enter 9 8 0. The last-selected device key blinks twice, pauses, and blinks twice again to confirm that all custom programming is cleared. ACTIVATING BACKLIGHTING (OPTIONAL) On some models of your Atlas OCAP 5-Device Remote Control with Learning, you can activate backlighting. Backlighting enables your remote’s keypad to remain lit for five seconds after you press any key. To enable backlighting on a remote with that feature, perform the following step: 1. Press SETUP twice within one second.
PROBLEM: PLAY and STOP keys do not work on a Motorola DCT-2000 cable converter. SOLUTION: Re-program the CBL key for cable code 0476 (see “Programming Device Control” on page 10). PROBLEM: Tried Search Method and still could not find a working code. SOLUTION: Try the Search Method again after clearing out the device key as follows: a. Press and hold SETUP until device key blinks twice. b. Enter 9 9 2. c. Press and release the device key to be cleared twice.
radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. ADDITIONAL INFORMATION This product does not have any user-serviceable parts. Opening the case, except for the battery cover, may cause permanent damage to your Atlas OCAP 5-Device Remote Control with Learning. • For help via the Internet, visit us at: www.urcsupport.
MANUFACTURER’S CODES Setup Codes for Audio Amplifiers Adcom 0577, 1100 Bose 0674 Carver 0892 Durabrand 1561 Elan 0647 GE 0078 Harman/Kardon 0892 JVC 0331 Left Coast 0892 Lenoxx 1561 Luxman 0165 Marantz 0892, 0321 McIntosh 0251 Nakamichi 0321 NEC 0264 Optimus 0395, 0823 Parasound 0246 Philips 0892 Pioneer 0823 Polk Audio 0892 RCA 0823 Realistic 0395 Sansui 0321 Shure 0264 Sony 0689, 0815, 1126 Soundesign 0078, 0211 Victor 0331 Wards 0078, 0211 Yamaha 0354, 0133 Setup Codes for Audio Receivers ADC 0531 Adcom
Amphion Media Works AMW Anam Apex Digital Arcam Audiotronic Audiovox B&K BK Bose Brix Cambridge Soundworks Capetronic Carver Casio Clarinette Classic Coby Compaq Criterion Curtis Mathes Daewoo Dell Delphi Denon Emerson Fisher Garrard Gateway Glory Horse Go Video Harman/Kardon Hewlett Packard Hitachi Initial Inkel Integra 1563, 1615 1563, 1615 1609, 1074 1257, 1430, 1774 1120, 1189 1189 1390, 1627 0701, 0820, 0840 0702 1229, 0639, 1253, 1629, 1841, 1933 1602 1370 0531 1189, 0189, 0008, 0042, 0360, ,0121, 12
JBL JVC Kenwood KLH Koss Lasonic Lenoxx Lexicon LG Linn Liquid Video Lloyd's LXI Magnavox Marantz McIntosh MCS Micromega Mitsubishi Modulaire Myryad NAD Nakamichi NEC Norcent Nova Onkyo Optimus Oritron Panasonic Penney Philips 0110, 1306 0074, 1263, 1374, 1495, 1811, 1871 1313, 1570, 1569, 0027, 0042, 0077, 0186, 0239, 0313 1390, 1412, 1428 0424, 1366, 1497 1798 1437 1076 1293 0189 1497 0195 0181 1189, 1269, 0189, 0128, 0195, 0391, 0531, 1514 1189, 1269, 0039, 0189, 0128, 1289 1289 0039, 0346 1189 1393 019
Pioneer Polaroid Polk Audio Proscan Quasar RadioShack RCA Realistic Regent Rio Saba Samsung Sansui Sanyo Scott Sharp Sharper Image Sherwood Shinsonic Sirius Sonic Blue Sony Soundesign Stereophonics Sunfire Teac Technics Thorens Toshiba Venturer Victor 1023, 0014, 0080, 0150, 0244, 0531, 0630, 1384 0801 1508 0189, 1289, 1414 1254 0039 1263 1023, 1609, 1254, 0054, 0080, 0346, 0360, 0530, 0531, 1074, 1154, 1390, 1511 0163, 0181, 0195 1437 1383, 1869 1519 1295, 1500, 1304 0189, 0193, 0346, 1189 0219, 0801, 1
Wards XM Yamaha Yorx Zenith 0158, 0189, 0014, 0054, 0080 1406, 1414 0176, 0186, 1176, 1276, 1331, 1375 0195 0857, 1293 Setup Codes for Audio Accessories Altec Lansing 1485 Apple 1644 Cambridge Soundworks 1530 Creative 0872 D-Link 1522 Imerge 1491 Integra 1789 iPort 1917 Marantz 1491 Motorola 1464 NaviPod 1644 Netgear 1785 Omnifi 1605 Onkyo 1789 Roku 1828 Sonance 1917 SSI 1522 Yamaha 1809, 1810 Setup Codes for Cable Boxes/Converters ABC 0003, 0008, 0014, 0017 Americast 0899 Amino 1602, 1822 Bell & Howell 0
General Instrument GoldStar Hamlin i3 Micro Jerrold Memorex Motorola Multitech Myrio Pace Panasonic Panther Paragon Philips Pioneer Pulsar Quasar RadioShack RCA Regal Runco Samsung Sasktel Scientific Atlanta Sejin Sony Starcom Supercable Supermax Thomson Tocom Torx Toshiba Tristar V2 Viewmaster Vision 0476, 0810, 0276, 0003 0144 0009, 0273 1602 0476, 0810, 0276, 0003, 0012, 0014 0000 1376, 0476, 0810, 0276, 1187, 1254, 1106, 1540 0014 0883 1602, 1822 1877, 1376, 0237, 0008 1877, 1376, 0000, 0107 0637 0000
Vortex View Zenith 0883 0000, 0525, 0899 Setup Codes for Cable/DVR/PVR Combos Americast 0899 Amino 1822 Digeo 1187 General Instrument 0476, 0810 Jerrold 0476, 0810 Motorola 1376, 0810, 1187, 1106, 1540, 0476 Myrio 1822 Pace 1877, 1376, 0237 Panasonic 1877, 1376 Pioneer 1877, 0877 RCA 1256 Samsung 1877, 1376 Sasktel 1737 Scientific Atlanta 1877, 0877 Sony 1006 Supercable 0276 Thomson 1256 Zenith 0899 Setup Codes for DVD Players Adcom 1094 Advent 1016 Aiwa 0641 Akai 0695, 0770, 0899, 1089 Alco 0790 Allegro
B&K BBK Bel Canto Design Blaupunkt Blue Parade Broksonic Buffalo California Audio Labs Cary Audio Design CAVS Centrios Cinea Cinego CineVision Citizen Coby Craig Curtis Mathes CyberHome D-Link Daewoo Daytek Denon Desay Diamond Vision Disney Dual Durabrand DVD2000 Emerson Enterprise ESA Fisher Funai Gateway GE 0655, 0662 1224 1571 0717 0571 0695, 0868, 1419 1882 0490 1477 1057 1577 0831 1399 0876, 0833, 0869 1277 0778, 0852, 1086, 1107, 1165, 1177, 1351 0831 1087 0816, 0874, 1023, 1024, 1117, 1129, 1502, 15
Go Video Go Vision GoldStar GPX Gradiente Greenhill Grundig Harman/Kardon Hitachi Hiteker iLo Initial Innovative Technology Integra Jaton JBL Jensen JSI JVC jWin Kawasaki Kenwood KLH Konka Koss Kreisen Landel Lasonic Lecson Lenoxx LG LiteOn Loewe Magnavox Malata 0744, 0715, 0741, 0783, 0833, 0869, 1044, 1075, 1099, 1144, 1158, 1304, 1443, 1730 1071, 1072 0741 0699, 0769 0490 0717 0539 0582, 0702 0573, 0664, 1247, 1919 0672 1348, 1472 0717, 1472 1542 0571, 0627 1078 0702 1016 1423 0558, 0623, 0867, 1164, 1
Marantz McIntosh Memorex Microsoft Mintek Mitsubishi Momitsu Myryad NAD Nakamichi NEC Nesa Nesa Vision NeuNeo Next Base NexxTech Norcent Onkyo Oppo OptoMedia Electronics Oritron Panasonic Philips PianoDisc Pioneer Polaroid Polk Audio Portland Presidian Prima Primare Princeton Proceed Proscan ProVision Qwestar 0539 1273, 1533 0695, 0831, 1270 0522, 1708 0839, 0717, 1472 1521, 0521 1082 0894 0591, 0692, 0741 1222 0785 0717 1603 1454 0826 1402 1003, 0872, 1107, 1265, 1457 0503, 0627, 0792 1224, 1525 0896 0651
RCA Rio RJTech Rotel Rowa Sampo Samsung Sansui Sanyo Sensory Science Sharp Sharper Image Sherwood Shinsonic Sigma Designs Sonic Blue Sony Sound Mobile Sova Sungale Superscan SVA Sylvania Symphonic TAG McLaren Teac Technics Technosonic Techwood Terapin Theta Digital Toshiba Tredex Urban Concepts US Logic Valor 0522, 0571, 0717, 0790, 0822, 1022, 1132, 1193 0869 1360 0623, 1178 0823 0698, 0752, 1501 0490, 0573, 0744, 0820, 0899, 1044, 1075 0695 0670, 0695, 0873, 1919 1158 0630, 0675, 0752, 1256 1117 0633, 07
Venturer Vialta Vizio Vocopro Xbox Xwave Yamaha Yamakawa Zenith Zoece 0790 1509 1064, 1226 1027 0522, 1708 1001 0490, 0539, 0545 0872 0503, 0591, 0741, 0869 1265 www.urcsupport.
Setup Codes for DVD Recorders Apex Digital 1056 Aspire Digital 1168 Coby 1086 CyberHome 1129, 1502 Funai 0675, 1334 Gateway 1073, 1158 Go Video 0741, 1158, 1304, 1730 iLo 1348 JVC 1164, 1275 Kreisen 1421 LG 0741 LiteOn 1158, 1416, 1440 Magnavox 0646, 1506 Panasonic 0490 Philips 0646 Pioneer 0631 Polaroid 1086 RCA 0522 Samsung 0490 Sensory Science 1158 Sharp 0675 Sony 1033, 1431, 1432, 1433 Sylvania 0675 Zenith 0741 Setup Codes for DVD Combos (LCD) Akai 0695 Audiovox 1071, 1121, 1122 iLo 1472 Initial 1472 LG
Crossdigital DirecTV 1109 1377, 0392, 0566, 0639, 1639, 1142, 0247, 0749, 1749, 0724, 0819, 1856, 1076, 1108, 0099, 1109, 1392, 1414, 1442, 1443, 1444, 1609, 1640 Dish Network System 1505, 1005, 0775, 1170, 1775 Dishpro 1505, 1005, 0775, 1775 Echostar 1505, 1005, 0775, 1170, 1775 Expressvu 0775, 1775 GE 0392, 0566 General Instrument 0869 GOI 0775, 1775 Goodmans 1246 Hisense 1535 Hitachi 0819, 1250 HTS 0775, 1775 Hughes 0749, 1442, 1749 Hughes Network Systems 1142, 0749, 1749, 1442, 1443, 1444 Humax 1790 iL
RadioShack RCA UltimateTV Ultrasat Uniden US Digital USDTV Voom Zenith 0869 0566, 0855, 0143, 1392, 0392 1377, 1276, 1108, 1109, 1442, 1609, 1142 1219 0639, 1639, 1640 0869 1142, 1442, 1443, 1444 0749, 1749, 0790, 0819, 1285 1392, 1640 1806 0724, 0722 1535 1535 0869 1856 Setup Codes for PVRs ABS Alienware CyberPower Dell DirecTV Gateway Hewlett Packard Howard Computers HP Hughes Network Systems Humax Hush iBUYPOWER Keen Linksys Media Center PC Microsoft Mind Niveus Media Northgate Panasonic 1972 1972 19
Philips RCA ReplayTV Sonic Blue Sony Stack 9 Systemax Tagar Systems Tivo Toshiba Touch Viewsonic Voodoo ZT Group 0618, 0739 0880 0614, 0616 0614, 0616 0636, 1972 1972 1972 1972 0618, 0636, 0739 1008, 1972 1972 1972 1972 1972 Setup Codes for DVR/PVR Systems Amino 1615 DirecTV 1377, 0392, 0639, 1142, 1076, 0099, 1392, 1442, 1443, 1444, 1640 Dish Network System 1505, 0775 Dishpro 1505, 0775 Echostar 1505, 0775, 1170 Expressvu 0775 Hughes Network Systems 1142, 1442, 1443, 1444, 0739 JVC 1170 Motorola 0869 Phi
Advent Adventura Aiko Aiwa Akai Alaron Albatron Ambassador America Action Ampro Anam Anam National AOC Apex Digital Archer Audiovox Aventura Axion Belcor Bell & Howell BenQ Boxlight Bradford Brockwood Broksonic Cadia Candle Carnivale Carver CCE Celebrity Celera Champion Changhong Cinego 0761, 0783, 0815, 0817, 0842, 1933 0046 0092 0701 0812, 0702, 0030, 0098, 0672, 1903, 1935 0179, 0183, 0216 0700, 0843 0177 0180 0751 0180, 0004, 0009, 0068 0055, 0161 0030, 0003, 0019, 0052, 0137, 0185 0748, 0879, 0765, 07
Citizen Clairtone Clarion Commercial Solutions Concerto Contec Craig Crosley Crown Curtis Mathes CXC Daewoo Daytron Dell Denon Denstar Diamond Vision DMTech Dream Vision Dumont Durabrand Dwin Dynatech Electroband Electrograph Electrohome Emerson Envision Epson ESA 0060, 0030, 0092, 0039, 0046, 0056, 0186, 0280 0185 0180 1447, 0047 0056 0180, 0157, 0158, 0185 0180, 0161 0054 0180, 0039 0047, 0054, 0154, 0451, 0093, 0060, 0702, 0030, 0145, 0166, 1347, 1147, 0747, 0466, 0056, 0039, 0016 0180 0451, 0092, 166
Fisher Fujitsu Funai Futuretech Gateway GE Gibralter Go Video GoldStar Goodmans Gradiente Grundig Grunpy Haier Hallmark Hannspree Hantarex Harley Davidson Harman/Kardon Harvard Havermy Helios Hello Kitty Hewlett Packard Hisense Hitachi HP Hyundai iLo Infinity Initial Inteq 0154, 0159 0179, 0186, 0683, 0809, 0853 0180, 0171, 0179 0180 1755, 1756 1447, 0047, 0051, 0451, 0178, 1347, 0747, 0282, 0279, 0251, 0174, 0138, 0135, 0055, 0029, 0027, 0021 0017, 0030, 0019 0886 0178, 0030, 0001, 0002, 0019, 0032, 010
Janeil JBL JCB Jensen JVC Kamp Kawasho Kaypani KEC Kenwood KLH Kloss KMC Konka KTV LG Loewe Logik Luxman LXI Magnavox Majestic Marantz Matsushita Maxent Megapower Megatron MEI Memorex MGA 0046 0054 0000 0761, 0050, 0815, 0817, 1299, 1933 0053, 0036, 0069, 0160, 0169, 0182, 0731, 1253 1352 0216 0158, 0216, 0308 0052 0180 0030, 0019 0765, 0767, 1962 0024, 0046, 0078 0106 0628, 0632, 0638, 0703, 0707 0180, 0030, 0039, 0183, 0185, 0217, 0280 1265, 0178, 0442, 0700, 0856, 1178, 1325, 1993 0136 0016 0056 0047,
Midland Mintek Minutz Mitsubishi Monivision Motorola MTC Multitech NAD NEC NetTV Nikko Noblex Norcent Norwood Micro Noshi NTC Olevia Onwa Optimus Optoma Optonica Orion Panasonic Penney Philco Philips Pilot 0047, 0017, 0051, 0032, 0039, 0135, 0747 1990 0021 0093, 1250, 0150, 0178, 0014, 0019, 0098, 0155, 0331, 0358, 0836, 0868, 1550 0700, 0843 0093, 0055 0060, 0030, 0019, 0049, 0056, 0091, 0185, 0216 0180, 0049, 0217 0156, 0178, 0866 0030, 0019, 0036, 0056, 0170, 0434, 0497, 0882, 1704 1755 0178, 0030, 00
Pioneer Polaroid Portland Prima Princeton Prism Proscan Proton Protron Proview Pulsar Quasar RadioShack RCA Realistic Rhapsody Runco Sampo Samsung Samsux Sansui Sanyo Sceptre 0166, 0038, 0172, 0679, 0866, 1260 0765, 0865, 1276, 1314, 1316, 1326, 1327, 1328, 1991, 1992 0092, 0019, 0039 0761, 0783, 0815, 0817, 1933 0700, 0717 0051 1447, 0047, 0747, 1347, 0466 0178, 0003, 0031, 0052, 0466 1320, 1323 1498 0017, 0019 0250, 0051, 0055, 0165, 0219, 0650 0047, 0154, 0180, 0178, 0030, 0019, 0032, 0039, 0056, 0165
Scimitsu Scotch Scott Sears Seleco Sharp Sheng Chia Shogun Signature SIM2 Multimedia Simpson Sole Sony Soundesign Sova Spectricon Squareview SSS Starlite Studio Experience Superscan Supre-Macy Supreme SVA Sylvania Symphonic Syntax Tandy Tatung Technics 0019 0178 0236, 0180, 0178, 0019, 0179, 0309 0047, 0054, 0154, 0156, 0178, 0171, 0015, 0056, 0146, 0148, 0149, 0159, 0168, 0179, 0281, 0747 1297, 1351 0093, 0039, 0153, 0157, 0165, 0220, 0281, 0386, 0398, 0491, 0688, 0689, 0818, 0851 0093 0019 0016 1297 01
Technol Ace Technovox Techview Techwood Teknika Telefunken Tera Thomson TMK TNCi Toshiba Tosonic Totevision Trical TVS Ultra Universal Universum US Logic Vector Research Victor Video Concepts Vidikron Vidtech Viewsonic Viking Visart Vizio Wards Waycon Westinghouse 0179 0007 0847 0051, 0003, 0056 0054, 0180, 0150, 0060, 0092, 0016, 0019, 0039, 0056, 0175, 0179, 0186, 0312, 0322 0702, 0056, 0074 0031 0209, 0210 0178, 0056, 0177 0017 0154, 1256, 0156, 1265, 0060, 1945, 1935, 1704, 1656, 1356, 1343, 1325, 1
White Westinghouse Yamaha 0463, 0623 0030, 0019, 0769, 0833, 0839 0017, 0463, 1265, 0178, 0092, 0016 0003 Zenith Zonda Setup Codes for TVs (DLP) Hewlett Packard HP LG Mitsubishi Optoma RCA Samsung SVA Toshiba 1494 1494 1265 1250 0887 1447 0812, 1060, 1312 0872 1265 Setup Codes for TVs (HDTV) Advent Hitachi Marantz Mitsubishi Panasonic Pioneer Princeton RCA Samsung Sharp Toshiba 0842 1960 0854 0150 0250, 0650 0679 0717 1447 0702, 0812 0688, 0689 1256 Setup Codes for TVs (LCD) Akai Audiovox BenQ Cadia D
Hewlett Packard HP Hyundai iLo Initial Jensen LG Magnavox Marantz Mintek Mitsubishi Norcent Norwood Micro Olevia Panasonic Philips Polaroid Protron RCA Samsung Sanyo Sceptre Sharp Sony Sova Superscan SVA Sylvania Symphonic Syntax Tatung Techview Toshiba US Logic Viewsonic Visart Vizio Westinghouse Wyse Zenith 1088 1088 0849 1286, 1990 1990 1299 0856, 1178, 1993 0802 0855 1990 1250 1365 1286, 1296 1144, 1240, 1331 0650, 1941 1454 1276, 1316 1320, 1323 0047, 1958 0766, 0812, 0814, 1395 1142 1360 0093, 0818 0
Setup Codes for TVs (Plasma) Akai Albatron BenQ Daewoo Dell Electrograph ESA Fujitsu Gateway Helios Hewlett Packard HP JVC LG Marantz Maxent Mitsubishi Monivision NEC NetTV Norcent Norwood Micro Panasonic Philips Pioneer Polaroid Sampo Samsung Sony Studio Experience SVA Tatung Toshiba US Logic Viewsonic Vizio Zenith 0812 0843 1032 0661 1264 1755 0812 0186, 0683, 0809, 0853 1755, 1756 0865 1089, 1502 1089, 1502 0731 0178, 0856 0704 1755 0836 0843 1704 1755 0824 1303 0250, 0650 0690 0679, 1260 0865, 1327, 13
Setup Codes for TV/DVD Combos Controlled by the TV Advent Apex Digital Audiovox Axion Broksonic Cinego Diamond Vision Emerson Hitachi iLo Initial Jensen KLH LG Magnavox Mintek Panasonic Polaroid Prima RCA Samsung Sansui Sova Sylvania Toshiba 1933 1943 1937, 1951, 1952 1937 1935 1986 1997 1963 1960 1990 1990 1933 1962 1993 1963 1990 1941 1991 1933 1948, 1958 1903 1935 1952 1963 1935 Controlled by the DVD Advent Akai Apex Digital Audiovox Axion Broksonic Cinego Diamond Vision Emerson Go Vision 1016 0695
Hitachi iLo Initial Jensen KLH Konka LG Magnavox Mintek Panasonic Philips Polaroid Prima RCA Samsung Sansui Sova Sylvania Toshiba 1247 1472 1472 1016 1261 0719, 0720 1526 1268 1472 1490 0854, 1260 1480 1016 1022, 1193 0899 0695 1122 0675, 1268 0695 www.urcsupport.
Setup Codes for TV/VCR Combos Controlled by the VCR Action America Action Audiovox Broksonic Citizen Colt Curtis Mathes Daewoo Emerson Funai GE GoldStar Harley Davidson Hitachi LG Lloyd's Magnasonic Magnavox Magnin Memorex MGA Mitsubishi Optimus Orion Panasonic Penney Quasar RadioShack RCA Samsung Sansui Sanyo Sears Sony Sylvania Symphonic 0317 0278 0278 0002, 0479, 1479 1278 0072 1035 0637, 1278 0002, 0294, 0479, 0593, 1278, 1479 0000 0240, 0807, 1035, 1060 1237 0000 0000 0480, 1037 0000 0593, 1278 0000,
Thomas Toshiba White Westinghouse Zenith 0000 0845, 1145 0637 0000, 0479, 0637, 1479 Setup Codes for TV/VCR/DVD Combos Controlled by the TV America Action Audiovox Emerson 0180 0180 0236 Controlled by the DVD Akai Broksonic Diamond Vision Emerson Funai Magnavox Panasonic Polaroid RCA Sharp Superscan Sylvania Toshiba 0899 0868 1609 0821 1334 0821 1362, 1462 1482 1132 0630 0821 0821 1045 Controlled by the TV Akai Broksonic Diamond Vision Emerson Magnavox Panasonic Polaroid RCA Sylvania Toshiba 1903
Setup Codes for VCRs ABS Action Admiral Advantz Adventura Aiko Aiwa Akai Alienware America Action American High Asha Audiovox Beaumark Bell & Howell Broksonic Calix Canon Capehart Carver CCE Citizen Colt Craig Curtis Mathes Cybernex CyberPower Daewoo Daytron Dell Denon DirecTV Durabrand Dynatech 1972 0317 0048, 0209, 0479 0356 0000 0278 0037, 0000, 0124, 0307, 0406, 0436, 0468 0041, 0049, 0053, 0061, 0106, 0156, 0175, 0242 1972 0278 0035 0240 0037, 0278 0240 0104 0184, 0121, 0209, 0002, 0211, 0295, 0361, 0
Electrohome Electrophonic Emerex Emerson Fisher Fuji Funai Garrard Gateway GE Go Video GoldStar Gradiente Grundig Harley Davidson Harman/Kardon Harwood Headquarter Hewlett Packard HI-Q Hitachi Howard Computers HP Hughes Network Systems Humax Hush iBUYPOWER Jensen JVC KEC 0037, 0043 0037 0032 0037, 0184, 0000, 0121, 0043, 0209, 0002, 0278, 1479, 1278, 0637, 1593, 0593, 0561, 0510, 0479, 0361, 0295, 0294, 0212, 0211, 0208, 0088, 0068, 0061, 0036 0047, 0104, 0054, 0066 0035, 0033 0000, 0593, 1593 0000 1972 0
Keen Kenwood KLH Kodak LG Linksys Lloyd's Logik LXI Magnasonic Magnavox Magnin Marantz Marta Matsushita Media Center PC MEI Memorex MGA MGN Technology Microsoft Mind Minolta Mitsubishi Motorola MTC Multitech NAD NEC Nikko Nikon Niveus Media Noblex Northgate 0693 0067, 0041, 0038, 0384 0072 0035, 0037 0480, 1037 1972 0000, 0208 0072 0037 0593, 1278 0035, 0039, 0081, 0000, 0149, 0103, 0110, 0563, 0593, 1781 0240 0035, 0081, 0146, 0161 0037 0035, 0162, 1162 1972 0035 0035, 0162, 0037, 0048, 0039, 0047, 0240,
Olympus Onkyo Optimus Optonica Orion Panasonic Penney Pentax Philco Philips Pilot Pioneer Polk Audio Portland Profitronic Proscan Protec Pulsar Quarter Quartz Quasar RadioShack Radix Randex RCA Realistic ReplayTV 0035, 0226 0222 1062, 0162, 0037, 0048, 0104, 0058, 0432, 0454, 0593, 1048, 1162, 1262 0062 0184, 0209, 0002, 0295, 0479, 1479 1062, 0035, 0162, 0077, 0102, 0225, 0226, 0227, 0246, 0378, 0454, 0616, 1035, 1162, 1262 0035, 0037, 0240, 0042, 0038, 0040, 0054, 1035, 1237 0042, 0065, 0105 0035 0035,
Ricavision Ricoh Runco Salora Samsung Samtron Sanky Sansui Sanyo Scott Sears Sharp Shintom Shogun Singer Sonic Blue Sony Stack 9 STS Sylvania Symphonic Systemax Tagar Systems Tatung Teac Technics Teknika Thomas Tivo TMK Toshiba 1972 0034 0039 0075 0240, 0045, 0051, 0053, 0739, 1014 0643 0048, 0039 0000, 0067, 0209, 0041, 0082, 0271, 0479, 1479 0047, 0240, 0104, 0046, 0159, 0268, 0372 0184, 0045, 0121, 0043, 0210, 0211, 0212 0035, 0037, 0047, 0000, 0042, 0104, 0046, 0054, 0057, 0066, 0105, 1237 0048, 0062,
Totevision Touch Unitech Vector Vector Research Video Concepts Videomagic Videosonic Viewsonic Villain Voodoo Wards White Westinghouse XR-1000 Yamaha Zenith ZT Group 0037, 0240 1972 0240 0045 0038, 0040 0045, 0040, 0061, 0221 0037 0240 1972 0000 1972 0060, 0035, 0048, 0047, 0081, 0240, 0000, 0042, 0072, 0149, 0062, 0161, 0212, 0760 0209, 0072, 0637 0035, 0000, 0072 0038 0039, 0033, 0000, 0209, 0034, 0479, 0637, 1139, 1479 1972 Setup Codes for Video Accessories ABS 1272 Accurian 1653 Alienware 1272 Archos
Leviton 1644 LG 1415 Linksys 1272, 1365 Macro Image Technology 1383 Media Center PC 1272 Microsoft 1272, 1805 Mind 1272 Motorola 1363 MyHD 1383 Niveus Media 1272 Northgate 1272 Panasonic 1120 Pioneer 1010 Princeton 0113, 0295 Ricavision 1272 Roku 1486 Samsung 1190, 1490 SanDisk 1703 Sasem 1641 Sensory Science 1126 Sharp 1010 SMC 1456 Sony 1272, 1324, 1364 Stack 9 1272 Sylvania 1563 Systemax 1272 Tagar Systems 1272 Telemann 1604 Toshiba 1272 Touch 1272 Viewsonic 1272, 1329 Vizio 1126 Voodoo 1272 Xbox 1805 ZT
