ATLAS DVR/PVR 5-DEVICE Universal Remote Control User’s Guide
Atlas DVD/PVR Manual 2/14/03 5:00 PM Page 2 TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features And Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Key Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Device Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTRODUCTION The Atlas DVR/PVR 5-Device Universal Remote Control by Universal Electronics is our latest generation universal remote control.

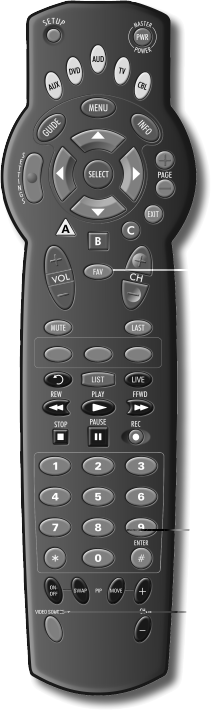

FEATURES AND FUNCTIONS Use the illustration below to locate features on the Atlas DVR/PVR 5-Device Universal Remote Control and then study the Key Charts (on the next three pages) to learn how they function. To find out what type of devices can be controlled by each device key after programming, see the Device Table on page 8.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 5 Key Charts Use SETUP for all programming sequences. Press PWR once to turn on or off a home entertainment device. For MASTER POWER control, see Using The Master Power Key on page 29. Press AUX, DVD, AUD, TV, or CBL once to select a home entertainment device to control.Also see the Device Table on page 8.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 6 FEATURES AND FUNCTIONS Key Charts (continued) Use VOL+ (or VOL-) to raise (or lower) the audio volume. Use FAV to cycle through your favorite channels stored in your cable converter. Use CH+ (or CH-) to select the next higher (or lower) channel. For DVD players, use these keys to skip forward (or reverse) through chapters. For amplifiers/receivers, use these keys to select the next higher (or lower) preset station. Press MUTE once to turn the sound off or on.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 7 Use the keypad numbers (1~ 9, and 0) to directly tune channels (e.g., 09). For amplifiers/receivers, use the keypad numbers to select inputs 1 through 10. In the CBL mode, use ENTER to enter information and to access music channels. In the TV, DVD, or AUX modes for certain devices, press ENTER once after entering a channel number. See your device’s owner’s manual.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 8 FEATURES AND FUNCTIONS (continued) Device Table NOTE: Please refer to the table below when performing the instructions in “Programming Device Control” on page 10 or “Programming TV/ VCR Combo Control” on page 12.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 9 INSTALLING BATTERIES ❶ ❷ ❸ 1. On the back of the remote control, push the tab and lift off the battery cover. 2. Locate the two (2) enclosed AA batteries. Match the + and – marks with those in the battery case, then insert them. 3. Align the cover’s keys with the case’s holes and press the cover back into place. The tab should click when the cover is locked. 4. Test the remote control by pressing any mode key (e.g., TV).
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 10 PROGRAMMING DEVICE CONTROL The Atlas DVR/PVR 5-Device Universal Remote Control is preprogrammed to operate the Scientific Atlanta cable box (converter) provided by your cable system, an RCA TV, a Toshiba DVD player, an RCA VCR (as an AUX device), and a Pioneer audio receiver.
Atlas DVR/PVR Manual 5. 3/20/03 5:00 PM Page 11 Repeat steps 1 through 4 for each device you want the remote control to operate.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 12 PROGRAMMING TV/VCR COMBO CONTROL If you own a TV/VCR Combo, perform the following instructions to control this device: 1. Turn on your TV/VCR Combo and insert a video cassette. 2. On the remote control, press AUX once; it will blink once. Then press and hold SETUP until the AUX key blinks twice, then release SETUP. 3.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 13 MANUFACTURER’S CODES Setup Codes For Audio Amplifiers: Aiwa Bose Carver Curtis Mathes Denon Harman/Kardon JVC Left Coast Linn Magnavox Marantz Optimus Panasonic Parasound Philips Pioneer Polk Audio RCA Sony Soundesign Technics Victor Wards Yamaha 0406 0674 0269 0300 0160 0892 0331 0892 0269 0269 0269, 0892 0300 0308, 0521, 0308 0246 0269, 0892 0013, 0300 0269, 0892 0300 0689 0211 0308, 0521 0331 0013, 0211 0354 Setup Codes For Audio Receivers: ADC Adcom Adm
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 14 MANUFACTURER’S CODES Setup Codes For Audio Receivers (continued): Garrard Hafler Harman/Kardon Hewlett Packard Inkel JBL JVC KLH Kenwood Koss LXI Lexicon Linn Lloyd’s Luxman MCS Magnavox Marantz Modulaire Musicmagic NAD NEC Nakamichi Onkyo Optimus Panasonic Penney Philips Pioneer Polk Audio Proscan Quasar RCA Realistic Samsung Sansui Sanyo Scott Sears Semivox Sharp Sherwood Sonic Sony Soundesign Stereophonics 0463, 0424, 0146, 0281 0146 0110, 0189, 0891 1181
Atlas DVR/PVR Manual Sunfire Sylvania Symphonic Teac Technics Techwood Thorens Venturer Victor Wards Yamaha Yorx Zenith 3/20/03 5:00 PM Page 15 1313, 0313, 0314, 1052 0222 0182 0463, 0163, 0387 1308, 1309, 1518, 0039, 0309, 0208, 0518 0281 1189 1390 0074 0158, 0014, 0189, 0080, 0054 0176, 1176, 0186, 0081, 0082 0195 0857, 0281 Setup Codes For Cable Boxes (Converters): Director General Instrument Jerrold Motorola Pioneer Scientific Atlanta 0476 0476 0476 0476 1877 1877 Setup Codes For DVD Players: Ai
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 16 MANUFACTURER’S CODES Setup Codes For DVD Players (continued): Magnavox Marantz Microsoft Mintek Mitsubishi Nesa Onkyo Oritron Panasonic Philips Pioneer Polk Audio Princeton Proscan RCA Rotel Samsung Sansui Sanyo Sharp Sherwood Shinsonic Sony Sylvania Technics Techwood Theta Digital Thrustmaster Toshiba Tredex Urban Concepts XBox Yamaha Zenith 0503, 0675 0539 0522 0717 0521 0717 0503, 0627 0651 0490, 0632 0503, 0539, 0854 0525, 0571, 0632 0539 0674 0522 0522,
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 17 Setup Codes For TVs: A-Mark AOC Abex Admiral Advent Adventura Aiko Aiwa Akai Alaron Ambassador America Action Ampro Anam Anam National Apex Digital Archer Audiovox Baysonic Belcor Bell & Howell Bradford Brockwood Broksonic CXC Candle Carnivale Carver Celebrity Changhong Cineral Citizen Clairtone Concerto Contec Craig Crosley Crown Curtis Mathes Daewoo Daytron Denon Dumont Dwin Electroband Electrohome Emerson Envision 0003 0030, 0019, 0185, 0003, 0052 0032 00
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 18 MANUFACTURER’S CODES Setup Codes For TVs (continued): Fisher Fujitsu Funai Futuretech GE Gibralter GoldStar Gradiente Grunpy Hallmark Harley Davidson Harman/Kardon Harvard Havermy Hitachi Infinity Inteq JBL JCB JVC Janeil KEC KTV Kaypani Kenwood Kloss Konka LG LXI Logik Luxman MEI MGA MTC Magnavox Majestic Marantz Matsushita Megatron Memorex Midland Minutz Mitsubishi Motorola Multitech NAD NEC 0154, 0159 0179, 0683 0180, 0179, 0171 0180 0047, 0747, 1147, 134
Atlas DVR/PVR Manual NTC Nikko Noshi Onwa Optimus Optonica Orion Panasonic Penney Philco Philips Pilot Pioneer Portland Princeton Prism Proscan Proton Pulsar Quasar RCA RadioShack Realistic Rhapsody Runco SSS Sampo Samsung Samsux Sansei Sansui Sanyo Scimitsu Scotch Scott Sears Semivox Semp Sharp Shogun Signature Simpson Sony Soundesign Spectricon Squareview Starlite Supre-Macy 3/20/03 5:00 PM Page 19 0092 0030, 0178, 0092 0018 0180 0154, 0250, 0166 0093, 0165 0236, 0463, 0179 0051, 0250, 0055 0047, 074
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 20 MANUFACTURER’S CODES Setup Codes For TVs (continued): Supreme Sylvania Symphonic TMK TNCi Tandy Tatung Technics Technol Ace Techwood Teknika 0000 0054, 0030, 0171, 0096, 0020 0180, 0171 0178, 0056, 0177 0017 0093 0055, 0003 0051, 0250 0179 0051, 0056, 0003 0054, 0180, 0150, 0060, 0179, 0056, 0019, 0016, 0092, 0039, 0186 Telefunken 0056, 0702 Toshiba 0154, 0156, 1356, 0060, 1256 Tosonic 0185 Totevision 0039 Vector Research 0030 Victor 0053 Vidikron 0054 Vidte
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 21 MGA Mitsubishi Optimus Orion Panasonic Penney Quasar RCA 0240 0048 (for TV use 0093) 0162 (for TV use 0250), 1162, 1262 0002, 0479 (for TV use 0463) 0035 (for TV use 0051), 0162 (for TV use 0250), 1162 0035 (for TV use 0051), 0037 (for TV use 0056), 0240 0035 (for TV use 0051), 0162 (for TV use 0250) 0035 (for TV use 0051), 0048 (for TV use 0093), 0060 (for TV use 0047), 0240 Sansui 0000, 0479 (for TV use 0463) Sanyo 0240 Sears 0000, 0037 (for TV use 0056) S
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 22 MANUFACTURER’S CODES Setup Codes For VCRs And PVRs (continued): Emerex Emerson Fisher Fuji Funai GE Garrard Go Video GoldStar Gradiente HI-Q Harley Davidson Harman/Kardon Harwood Headquarter Hitachi Hughes Net. Sys.
Atlas DVR/PVR Manual Olympus Optimus Optonica Orion Panasonic Penney Pentax Philco Philips Pilot Pioneer Polk Audio Portland Profitronic Proscan Protec Pulsar Quarter Quartz Quasar RCA RadioShack Radix Randex Realistic ReplayTV Ricoh Runco STS Samsung Samtron Sanky Sansui Sanyo Scott Sears Semp Sharp Shintom Shogun Singer Sonic Blue Sony Sylvania Symphonic TMK Tatung Teac Technics Teknika 3/20/03 5:00 PM Page 23 0035 0037, 0048, 1048, 0162, 1062, 1162, 1262, 0104, 0454, 0432 0062 0184, 1479, 0209, 0002
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 24 MANUFACTURER’S CODES Setup Codes For VCRs And PVRs (continued): Thomas Tivo Toshiba Totevision Unitech Vector Vector Research Video Concepts Videomagic Videosonic Villain Wards 0000 0618, 0636 0045, 0845, 0043 0037, 0240 0240 0045 0038, 0040 0045, 0061, 0040 0037 0240 0000 0035, 0060, 0760, 0048, 0047, 0081, 0000, 0042, 0240, 0072, 0149, 0062 White Westinghouse 1278, 0209, 0072 XR-1000 0035, 0000, 0072 Yamaha 0038 Zenith 0039, 0000, 0033, 1479, 0209, 0479, 0
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 25 5. Press SETUP once to lock in the code. The TV key will blink twice. 6. To search for the codes of your other devices, repeat steps 1 through 5, but substitute the appropriate key (e.g., AUX, DVD, AUD, or CBL) for the device you are searching for.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 26 PROGRAMMING CHANNEL CONTROL LOCK By default, the remote control’s channel-control capabilities are locked to the cable converter. The affected keys* are 0 ~ 9, CH+, CH-, ENTER, and LAST. This will guarantee that you do not inadvertently change a channel on your TV or VCR. However, you can de-activate this feature to allow full access to these keys in the TV and VCR modes. *NOTE: This feature does not affect the AUD mode.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 27 PROGRAMMING ID LOCK The Atlas DVR/PVR 5-Device Universal Remote Control is locked at the factory to operate a Scientific Atlanta cable converter. However, if you have another brand or model of cable converter or satellite service that you would like to control, then you’ll need to perform the following steps to unlock the ID Lock, enter in a new manufacturer’s code, and lock the ID Lock again. 1. Turn on the cable converter. 2.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 28 PROGRAMMING “TUNE-IN” KEYS FOR SPECIFIC CHANNELS (continued) To Program A “Tune-In” Key: 1. On the remote control, press CBL once; it will blink once. Then press and hold SETUP until the CBL key blinks twice, then release SETUP. 2. Enter 9 - 9 - 5. The CBL key will blink twice. Then select a “Tune-In” key and press it once. 3. Press CBL once followed by the channel number to be programmed (e.g., 3 - 9).
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 29 USING THE MASTER POWER KEY The Atlas DVR/PVR 5-Device Universal Remote Control has a unique feature that allows you to sequentially turn on or off up to five of your home entertainment devices with a single key press. To Program The Master Power Key: 1. On the remote control, press and hold SETUP until the last-selected device key blinks twice, then release SETUP. 2. Enter 9 - 9 - 5. The last-selected device key will blink twice. Then press PWR once. 3.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 30 RE-ASSIGNING DEVICE KEYS The Atlas DVR/PVR 5-Device Universal Remote Control can be set up to control a second device. For example, to have the unit control a TV, a Cable Converter, and two DVD Players, you will need to re-assign the unused AUX key to operate the second DVD Player as follows: NOTE: AUX is preset at the factory to control an RCA VCR. Performing the below steps will overwrite those settings. 1.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 31 CHANGING VOLUME LOCK On this remote control, Global Volume Lock is set to TV, so you can control TV volume while in the AUX, DVD, TV or CBL mode. If desired, you can still perform Individual Volume Unlock on a selected device to set its volume control for independent operation. NOTE: The audio mode’s volume controls are active regardless of Volume Lock settings.
CHANGING VOLUME LOCK (continued) To Lock Volume Control To One Mode (Global Volume Lock): NOTE: The audio mode’s volume controls are active regardless of Volume Lock settings. However, if you lock the volume controls to the AUD mode, you will have control of the audio device’s volume in all other modes (i.e., AUX, DVD, TV, and CBL). 1. On the remote control, press and hold SETUP until the last-selected device key blinks twice, then release SETUP. 2. Enter 9 - 9 - 3.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 33 TROUBLESHOOTING PROBLEM: Device key does not blink when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see page 9). PROBLEM: Device key blinks when you press a key, but home entertainment device does not respond. SOLUTION: Make sure you are aiming the remote control at your home entertainment device and that you are within 15 feet of the device you are trying to control.
Atlas DVR/PVR Manual 3/20/03 5:00 PM Page 34 INSTRUCTIONS TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
ADDITIONAL INFORMATION This product does not have any user-serviceable parts.
