Instruction manual

4509/4510/4512

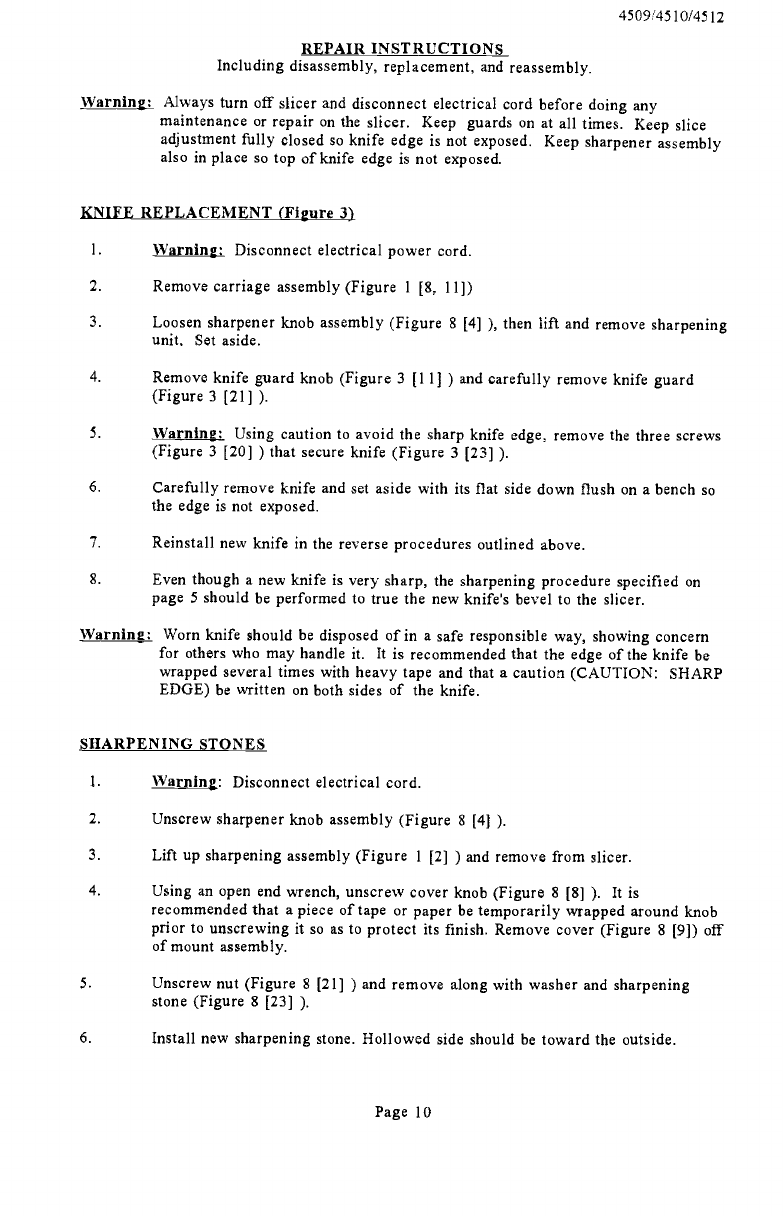

REPAIR INSTRUCTiONS
Including disassembly, replacement, and reassembly.
Warning: Always turn off slicer and disconnect electrical cord before doing any
maintenance or repair on the slicer. Keep guards on at all times. Keep slice
adjustment fully closed so knife edge is not exposed. Keep sharpener assembly
also in place so top of knife edge is not exposed.
KNIFE REPLACEMENT (Figure 3)
Warning: Disconnect electrical power cord.
Remove carriage assembly (Figure 1 [8, 11])
Loosen sharpener knob assembly (Figure 8 [4] ), then lift and remove sharpening
unit.
Set aside.
Remove knife guard knob (Figure 3 [11]) and carefully remove knife guard
(Figure 3 [21] ).
Warning: Using caution to avoid the sharp knife edge, remove the three screws
(Figure 3 [20] ) that secure knife (Figure 3 [23] ).
Carefully remove knife and set aside with its flat side down flush on a bench so
the edge is not exposed.
Reinstall new knife in the reverse procedures outlined above.
Even though a new knife is very sharp, the sharpening procedure specified on
page 5 should be performed to true the new knife's bevel to the slicer.
Warning: Worn knife should be disposed of in a safe responsible way, showing concern
for others who may handle it.
It is recommended that the edge of the knife be
wrapped several times with heavy tape and that a caution (CAUTION: SHARP
EDGE) be written on both sides of the knife.
SHARPENING STONES
Warning: Disconnect electrical cord.
Unscrew sharpener knob assembly (Figure 8 [4] ).
Lift up sharpening assembly (Figure 1 [2] ) and remove from slicer.
Using an open end wrench, unscrew cover knob (Figure 8 [8]).
It is
recommended that a piece of tape or paper be temporarily wrapped around knob
prior to unscrewing it so as to protect its finish. Remove cover (Figure 8 [9]) off
of mount assembly.
Unscrew nut (Figure 8 [21] ) and remove along with washer and sharpening
stone (Figure 8 [23] ).
Install new sharpening stone. Hollowed side should be toward the outside.
Page 10
