Instruction manual

Page 13
4509/4510/4512

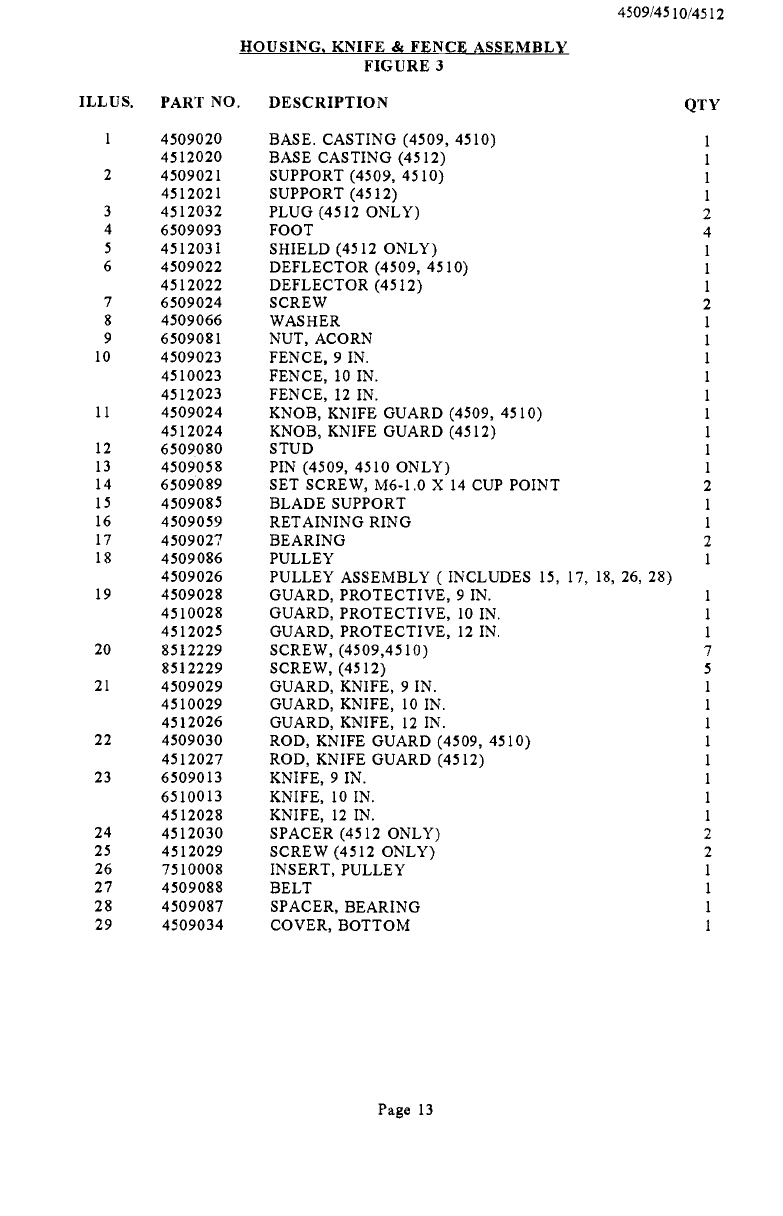

HOUSING. KNIFE & FENCE ASSEMBLY
FIGURE 3
ILLUS.
PART NO.
DESCRIPTION
QTY
1
4509020
BASE. CASTING (4509, 4510)
1
4512020 BASE CASTING (4512)
1
2
4509021
SUPPORT (4509, 4510)
4512021
SUPPORT (4512)
1
3
4512032 PLUG (4512 ONLY)
2
4
6509093
FOOT
4
5
4512031
SHIELD (4512 ONLY)
1
6
4509022
DEFLECTOR (4509, 4510)
1
4512022
DEFLECTOR (4512)
1
7
6509024 SCREW
2
8
4509066
WASHER
1
9
6509081
NUT, ACORN
10
4509023
FENCE, 9 IN.
1
4510023
FENCE, 10 IN.
1
4512023
FENCE, 12 IN.
1
11
4509024
KNOB, KNIFE GUARD (4509, 4510)
1
4512024
KNOB, KNIFE GUARD (4512)
1
12
6509080
STUD
13
4509058
PIN (4509, 4510 ONLY)
14
6509089
SET SCREW, M6-1.0 X 14 CUP POINT
2
15
4509085
BLADE SUPPORT
16
4509059
RETAINING RING
1
17
4509027
BEARING
2
18
4509086
PULLEY
1
4509026
PULLEY ASSEMBLY (INCLUDES 15, 17, 18, 26, 28)
19
4509028
GUARD, PROTECTIVE, 9 IN.
4510028
GUARD, PROTECTIVE, 10 IN.
1
4512025
GUARD, PROTECTIVE, 12 IN.
1
20
8512229
SCREW, (4509,4510)
7
8512229
SCREW, (4512)
5
21
4509029
GUARD, KNIFE, 9 IN.
4510029
GUARD, KNIFE, 10 IN.
1
4512026
GUARD, KNIFE, 12 IN. 1
22
4509030
ROD, KNIFE GUARD (4509, 4510)
1
4512027
ROD, KNIFE GUARD (4512)
1
23
6509013
KNIFE, 9 IN. 1
6510013
KNIFE, IO IN.
1
4512028
KNIFE, 12 IN.
1
24
4512030
SPACER (4512 ONLY)
2
25
4512029
SCREW (4512 ONLY)
2
26 7510008
INSERT, PULLEY 1
27
4509088
BELT
28
4509087
SPACER, BEARING
1
29 4509034
COVER, BOTTOM
