Specifications

Pen-Ray Grid Lamps
UVP ... [phone] | [phone] | [phone] | UVP.com
14
27
UV Meters
Converter

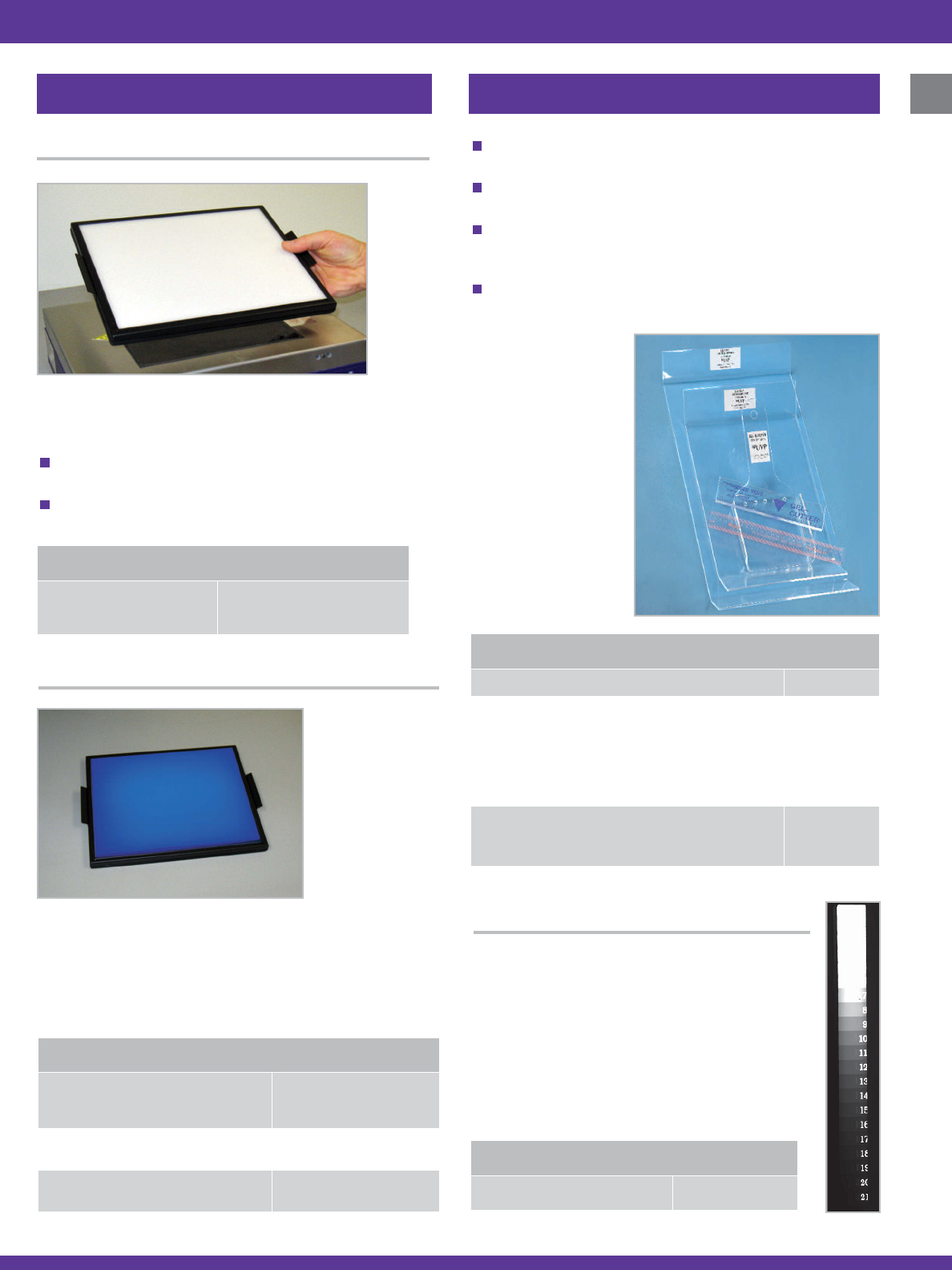

Light Plates and Gel Tools
Gel-Cutter: Edge allows for easy cutting and removal
of gel material
Gel-Scooper: Made of strong acrylic with a beveled
edge designed for transfer of gels
Gel-Trays: UV transmitting trays can be used for
moving gels to the transilluminator. Tray protects the
filter surface from scratches
Gel-Ruler: Centimeter markings fluoresce under 365nm
and 302nm UV wavelengths
Gel-Tools are useful
for researchers
working with
transilluminators as
well as gel imaging
systems.
Photo shows Gel-
Trays, Gel-Scooper,
Gel-Cutter and
Gel-Ruler.
Gel-Tool Kit combines
a Gel-Ruler, Gel-Cutter,
Gel-Tray, Gel-Scooper
plus Faceshield.
Ordering Information
Gel-Tool Kit
98-0109-01
Gel-Trays, Plexiglas
®
10.75W x 9D in. (27 x 23cm)
11.5W x 9D in. (29 x 23cm)
16.5W x 10.5D in. (42 x 27cm)
Gel-Tray, stainless steel/glass
16.5W x 10.5D in. (42 x 27cm)
85-0007-05
85-0007-01
85-0005-01
38-0296-03
Gel-Cutter, 20cm
Gel-Ruler, 25cm
Gel-Scooper,
5W x 12L in.(12.7 x 30.5cm)
85-0002-01
85-0003-01
85-0006-01
Specially designed plate converts the transilluminator’s UV
radiation to white light for viewing protein gels, Coomassie
blue stained or silver stained media.
Uniquely phosphored glass assembly (patented)
converts the UV radiation via a white diffuser
Handles are placed on two sides of the plate for easy
handling
Convert
UV to
White
Light
Ordering Information
UV to White Light
Converter Plates
38-0191-01 21 x 26cm
38-0191-02 20 x 40cm
38-0191-04 25 x 26cm
UV/White Converter Plates
Position the plate on top of a UV transilluminator to convert
the 302nm UV. Visi-Blue Plate converts UV to 460-470nm
blue light for use with various stains including SYBR Green,
SYPRO Orange and GFP.
UV/UV Converter Plate converts 302nm to 365nm UV which
is ideal for preparation and gel excision work.
Visi-Blue
TM
Converter Plate
Scratch resistant
glass surface is
secured to the
metal frame.
Ordering Information
Visi-Blue Converter Plates
(460-470nm)
38-0200-01 21 x 26cm
38-0200-02 20 x 40cm
38-0200-04 25 x 26cm
Visi-Blue Converter Plate with
Amber Cover (460-470nm)
38-0242-01 21 x 26cm
UV/UV Converter Plate
(302 to 365nm)
38-0325-01 25 x 26cm
UV/Blue and UV/UV Plates
Place the non-photobleaching Step Tablet (patent
pending) next to your gel on a FirstLight UV
Illuminator. The Step Tablet has a calibrated
21-step gradation with density from totally clear
(step 1) to totally opaque (step 21). The gradation
allows accurate, consistent comparison of the
bands and spots on acquired images against
one another and the step tablet for variations in
lighting and optical conditions. Allows evaluation
of the image against the grayscale.
Ordering Information
Step Tablet
33-0014-02
Visi-Blue Converter
Plate includes an
amber camera filter
for use in photo-
graphing gels.
Fluorescent Standard Step Tablet
Converter Light Plates Gel Tools
Converter Light Plates and Gel Tools
Pen-Ray Light Sources
Pen-Ray
Ò
Light Sources
Ozone production
Barcode reading
Sterilization
Fluorescent inspections
Photochemical reactions
Interferometry
Chromatography
Photometric and fluorometric instruments
Spectroscopic wavelength calibration
Monochromatic sources for optical systems
Pen-Ray light sources are low-pressure, cold cathode
mercury UV lamps made of double bore quartz tubing.
The lamps are individually created by master craftsmen
to ensure quality and reliability. The lamps supply a high
degree of stable, isolated spectral line accuracy and long
life (3000+ hours). A variety of lighted lengths and wave-
lengths are available. Lamp uses are numerous because
of their convenient small size and positioning of both
electrodes at one end only.
Applications for Pen-Ray Lamps include:
Pen-Ray Lamps are
available with a variety
of lighted lengths and
diameters, wavelengths,
phosphor and handle.
Pen-Ray Lamp Variables. Lamp cord/connectors: 16 in. (406mm) with
standard connector; different cable lengths, handles, connectors available.
Power supplies. Optimum starting and operation of the lamps. Use the
recommended power supplies (ordered separately).
Filter shields. Optional shields direct or modify the emission
output for 11SC-1 series lamps:
Shield A provides a 0.04 in. ID hole
Shield B has 0.31 x 0.63 in. window
Shield C has a 0.19 x 1.5 in. window
Lamp Spectra
The graph illustrates the
relative emission intensities
of mercury Pen-Ray lamps.
Spectral charts and data
can be obtained from UVP.
Pen-Ray Mercury Lamps
Ordering Information and Specifications Lamp Dimensions Recommended Power Supplies/Specifications
Part
Number
Model Description
Peak
Emission
(nm)
Lighted
Length
(mm)
Quartz
Diameter
(mm)
Handle
Diameter
(mm)
Overall
Lamp
Length
(mm)
Cord
Length
(mm)
AC Power
Supply
DC Power
Supply/
Current
Maximum
Nominal
Starting
Voltage
Nominal
Operating
Voltage
90-0001-04 11SC-0.88-AVP302-2 Hg 302 22.3 9.2 11.2 79.5 76.20 PS-1 PS-6/18mA 1000 225
90-0001-05 11SC-2.25-AV-16-800 Hg 254 57.2 9.2 11.2 114.3 406.4 PS-1 PS-6/18mA 800 200
90-0003-01 11SC-2.12-AO-16 Hg 254 53.8 6.5 9.5 117.3 406.4 PS-1 PS-6/18mA 800 400
90-0004-01 3SC-9.00-AO-16S 254 228.6 9.5 12.7 295.1 406.4 PS-4 PS-6/28mA 1500 680
90-0004-07 3SC-6.00-AO-16 Hg 254 152.4 9.5 12.7 218.9 406.4 PS-4 PS-6/28mA 800 480
90-0012-01 11SC-1 2.12-PO-16 Hg 254 53.8 6.5 9.5 117.3 406.4 PS-1 PS-6/18mA 800 400
90-0019-01 11SC-1L 2.25-PB-16 Hg 351 57.1 6.5 9.5 117.3 406.4 PS-1 PS-6/18mA 800 400
90-0019-04 11SC-1 2.25-PB-16-800Hg 351 57.1 6.5 9.5 117.3 406.4 PS-1 PS-6/18mA 800 220
90-0019-06 11SC-1 3.75-PL351-16 Hg* 351 95.3 6.5 9.5 155.4 406.4 PS-1 PS-6/18mA 1000 350
90-0020-01 11SC-2.75-PO-16 Hg 254 19.1 6.5 9.5 82.6 406.4 PS-1 PS-6/18mA 800 220
90-0033-01 11SD-0.94-AV-6T Hg* 254 23.8 9.2 11.2 72.1 152.4 PS-1 PS-6/18mA 800 200
Grid lamps emit a 254nm mercury emission spectra and are
made with standard or ozone free quartz. Grids supply
excellent uniformity over the entire
area. Sizes available from 2 x 2”
to 12 x 12”. Custom reflectors and
configurations are available.
Recommended power supplies
are PS-4 and PS-8.
Contact UVP for specifications or
ordering information.
* Ozone free
