Installation Guide

1. Attach the threaded pipe to the mounting strap, then secure it with a
washer and hex nut.
2. Attach the mounting strap to the outlet box by using two mounting screws.
3. Secure the top loop to the threaded pipe.
4. Adjust the lower arms of the main fixture according to the drawing of the
package.
Important:
a. The arms should be positioned with equal distances between
them.
b. The arms should be fixed securely.
5. Secure the loop onto the stem of the upper fixture, thread fixture wires
through threaded end of loop first.
6. Take an upper arm, attach its one end to lower arm, secure it with a short
bolt nut. See illustration for correct position. (Don’t reverse two ends of upper arm.)
7. Secure upper fixture to main fixture, make sure the hole of upper fixture aligns with the hole of upper arm by screwing loop.
Then secure the other end of upper arm with a long bolt nut. Secure the other upper arms.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0125 / H0126
Upper Fixture
Main Fixture
Stem
Stem
Glass Shade
Socket Ring
Long Bolt Nut
Short Bolt Nut
Lower Arm
Glass Holder
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

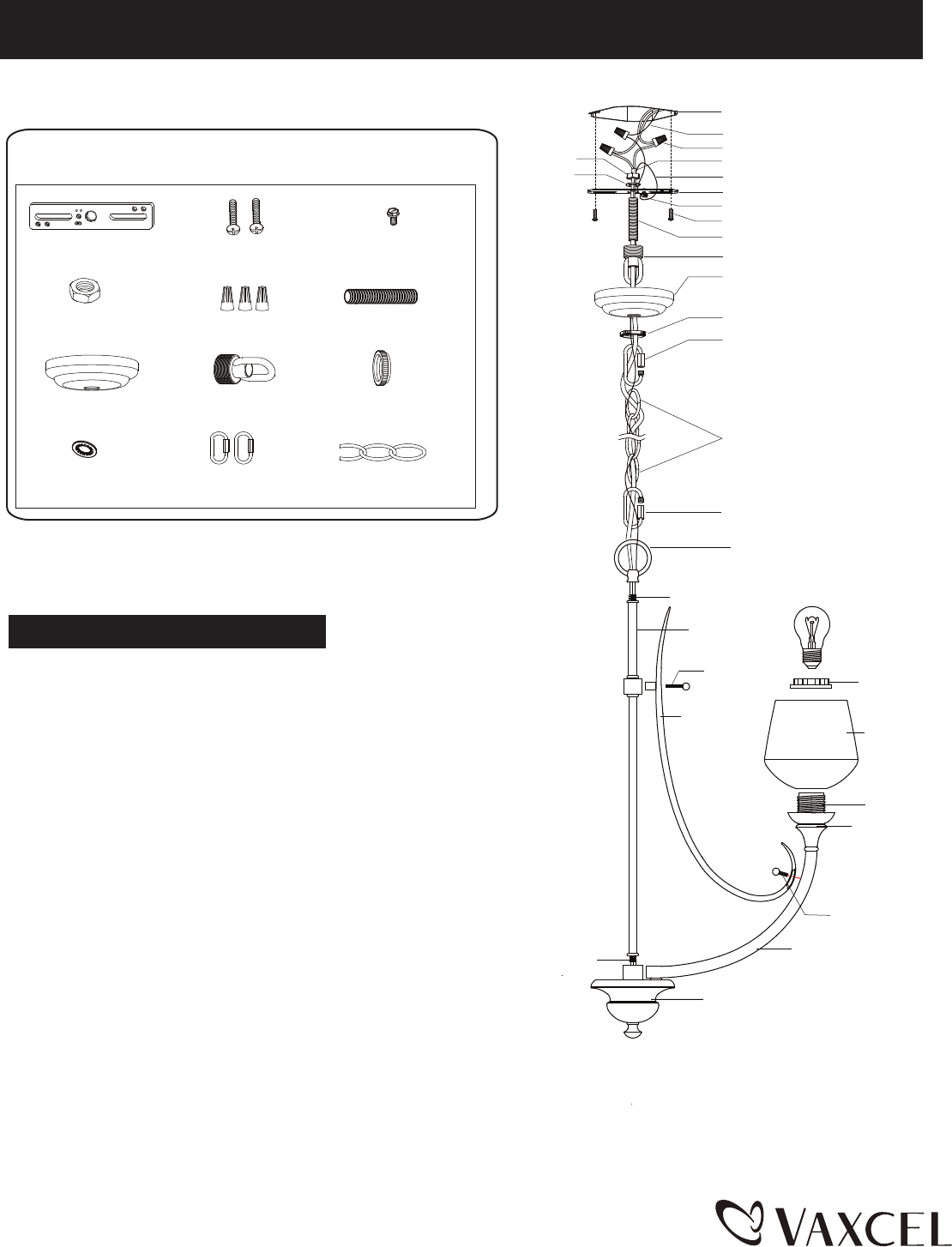

Hardware Package (included):
141127
Upper Arm
Socket
Turn off the power at fuse or circuit box.
Installation Steps
Loop Lock(K)
Loop Lock(K)
Outlet Box
House Grounding Wire
Wire Nut(E)
Fixture Wire
Fixture Grounding Wire
Mounting Strap(A)
Green Grounding Screw(C)
Mounting Screw(B)
Threaded Pipe(F)
Canopy(G)
Hex Nut(D)
Washer(J)
Collar(I)
Chain(L)
Loop
Bulb Type A Max.
100W(not included)
Top Loop(H)
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Hex Nut (D)
Wire Nut (E)
Canopy (G)
Top Loop (H)
Collar (I)
Threaded Pipe (F)
Washer (J)
Loop Lock (K)
Chain (L)
