Installation Guide

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0137
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
141119
Page 1
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Hex Nut (D)
Wire Nut (E)
Canopy (G)
Top Loop (H)
Collar (I)

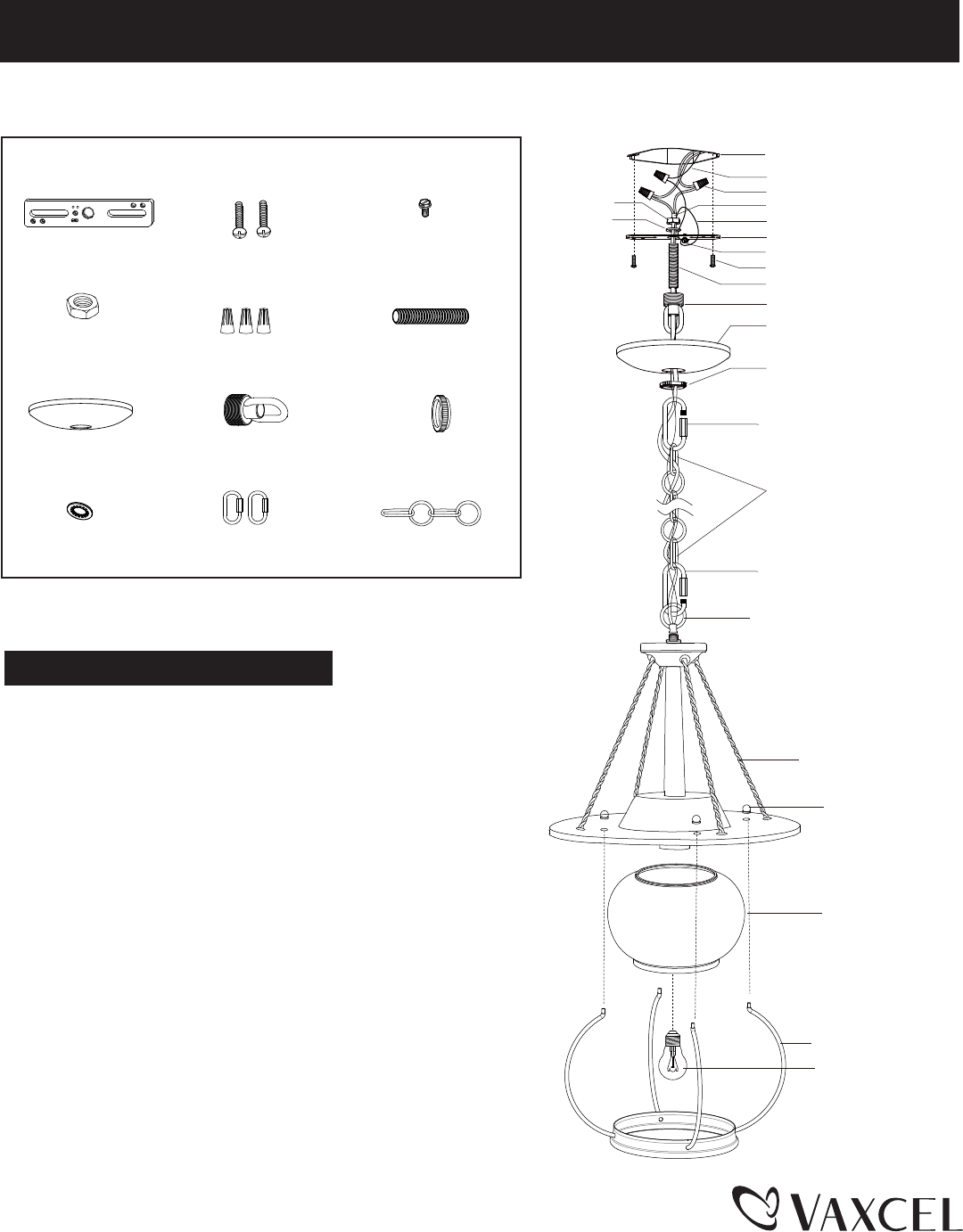

Hardware Package (included):
Assembly Instructions:
Threaded Pipe (F)
Washer (J)
1. Attach the threaded pipe to the mounting strap, then
secure it with a washer and hex nut.
2. Attach the mounting strap to the outlet box by using
two mounting screws.
3. Secure the top loop to the threaded pipe.
4. Thread fixture wires through threaded end of loop,
and then secure the loop to stem of the fixture.
5. Connect the chain:
- Determine length of chain needed to achieve desired
fixture height. (To remove excess chain section, use pliers
to bend link open.)
- Weave the fixture wires through the chain, collar, and canopy.
6. Connect one end of the chain to the loop using a loop lock.
7. Connect the other end of the chain to the top loop using the other loop lock.
Loop
Outlet Box
House Grounding Wire
Wire Nut (E)
Fixture Wire
Fixture Grounding Wire
Mounting Strap (A)
Green Grounding Screw (C)
Mounting Screw (B)
Threaded Pipe (F)
Canopy (G)
Top Loop (H)
Hex Nut (D)
Washer(J)
Collar (I)
Loop Lock (K)
Chain (L)
Fixture
Bulb Type A Max.100W
(not included)
Ball Nut
Glass Shade
Frame
Loop Lock (K)
Chain (L)
Loop Lock (K)
