Installation Guide

1. Thread two headless screws through holes in mounting plate as shown, then secure them with four lock nuts. Adjust the
length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally, to ensure that the fixture will be level.
2. Attach the mounting plate to outlet box using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually bare wire) to the mounting plate with the green grounding screw. Then connect
it to the house grounding wire with a wire nut. If your outlet box does not have a house grounding wire, then wrap the
fixture grounding wire around the green grounding screw.
Carefully tuck the wires back into the outlet box.
Spacer
Back Plate
Glass bracket
Socket Ring
Bulb Type A Max.100W
(not included)
Socket
Mounting Plate (A)
Mounting Screw (B)
Green Grounding
Screw (E)
Lock Nut (D)
Wire Nut (F)
Ball Nut (G)
headless Screw (C)
140904
Page 1
Ball Nut (G)
Glass Shade (H)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0116
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

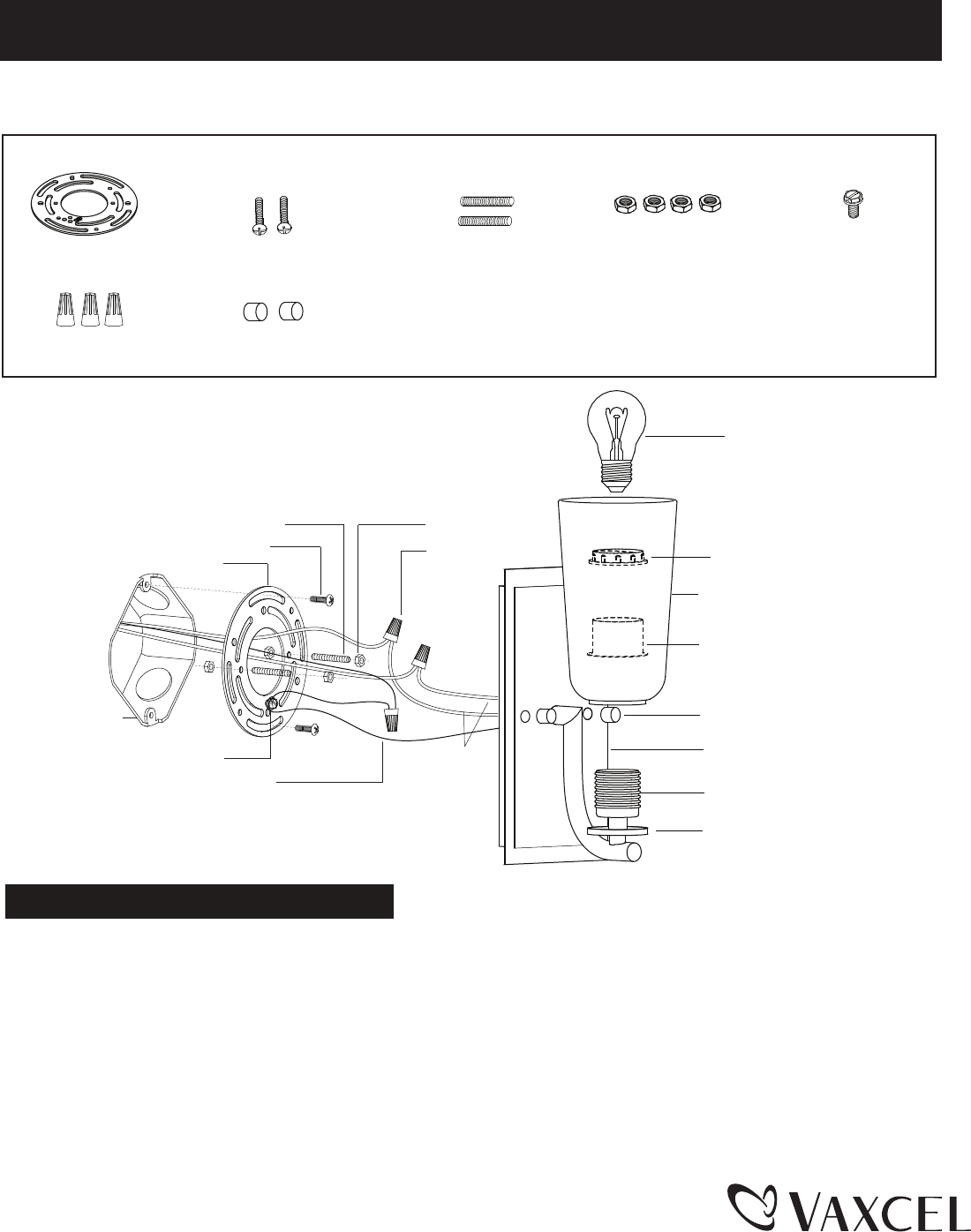

Hardware Package (included):
Assembly Instructions:
Turn off the power at fuse or circuit box.
Green Grounding Screw (E)
Fixture Grounding Wire
Wire Nut (F)
Outlet Box
Fixture Wire
Mounting Screw (B)
Lock Nut (D)
Headless Screw (C)
Mounting Plate (A)
