Manual VN1600 Interface Family

2.5 VN1611

2.5.1 Main Features

VN1611 features

The main features of the VN1611 interface are:

> 1x LIN 7269cap transceiver (capacitively decoupled)

> 1x CAN high-speed 1051cap transceiver (capacitively decoupled)

> Software sync

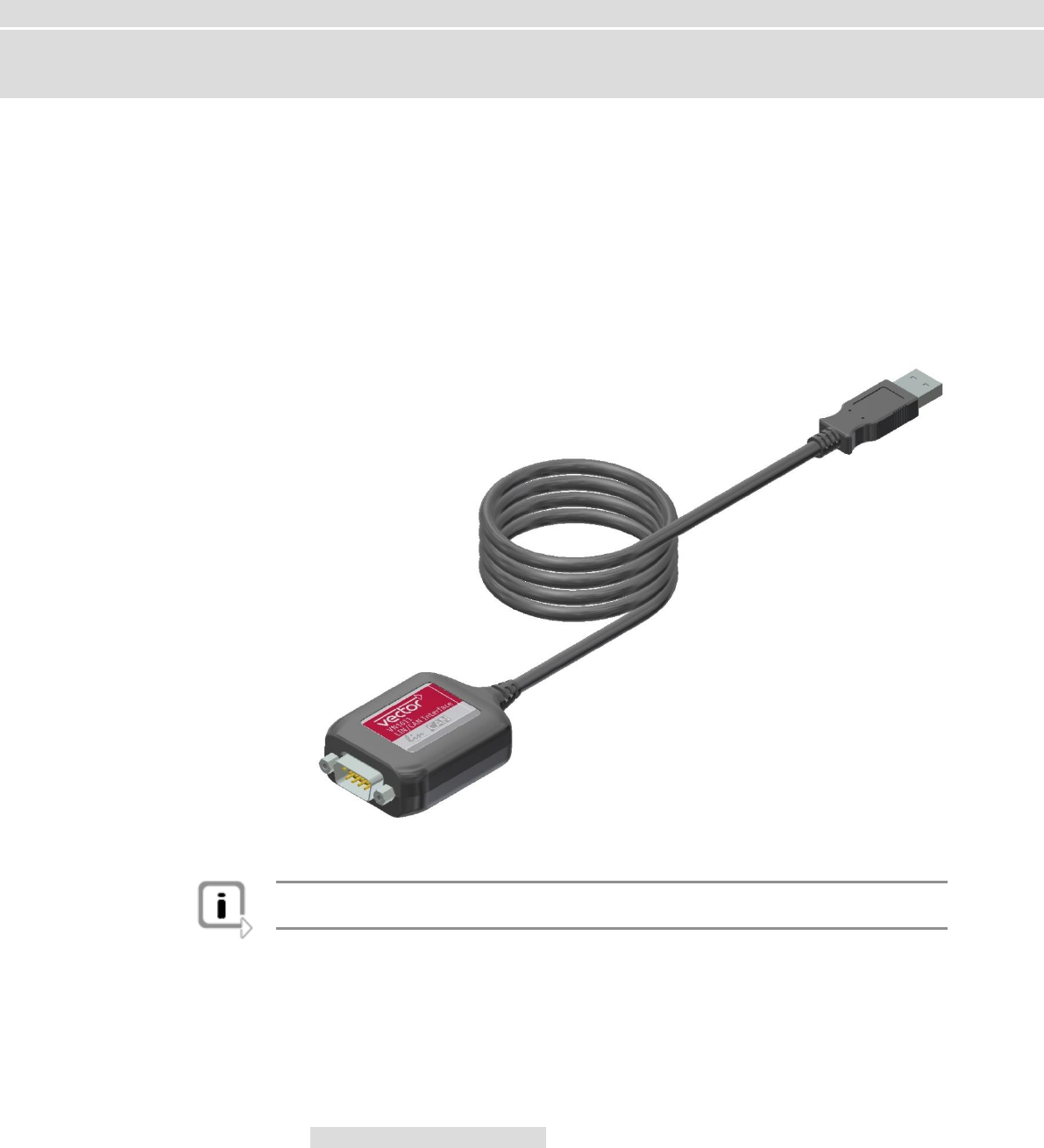

Figure 5: VN1611 LIN/CAN Interface.

Note: The VN1611 does not support LIN2.1 compliance tests. Please use the

VN1630 or the VN1640 for these purposes.

2.5.2 Connectors

> D-SUB9 (CH1/2)

The VN1611 has a D-SUB9 connector with one LIN and one CAN channel.

Further information on the pin assignment for CH1/CH2 can be found in section

Pin Assignment CH1 and CH2 on page 13

> USB

Connect your PC and the VN1611 over USB to install and to use the device with

measurement applications (e. g. CANoe, CANalyzer).
