Manual VN1600 Interface Family

2.5.3 Pin Assignment CH1 and CH2

D-SUB9 connector

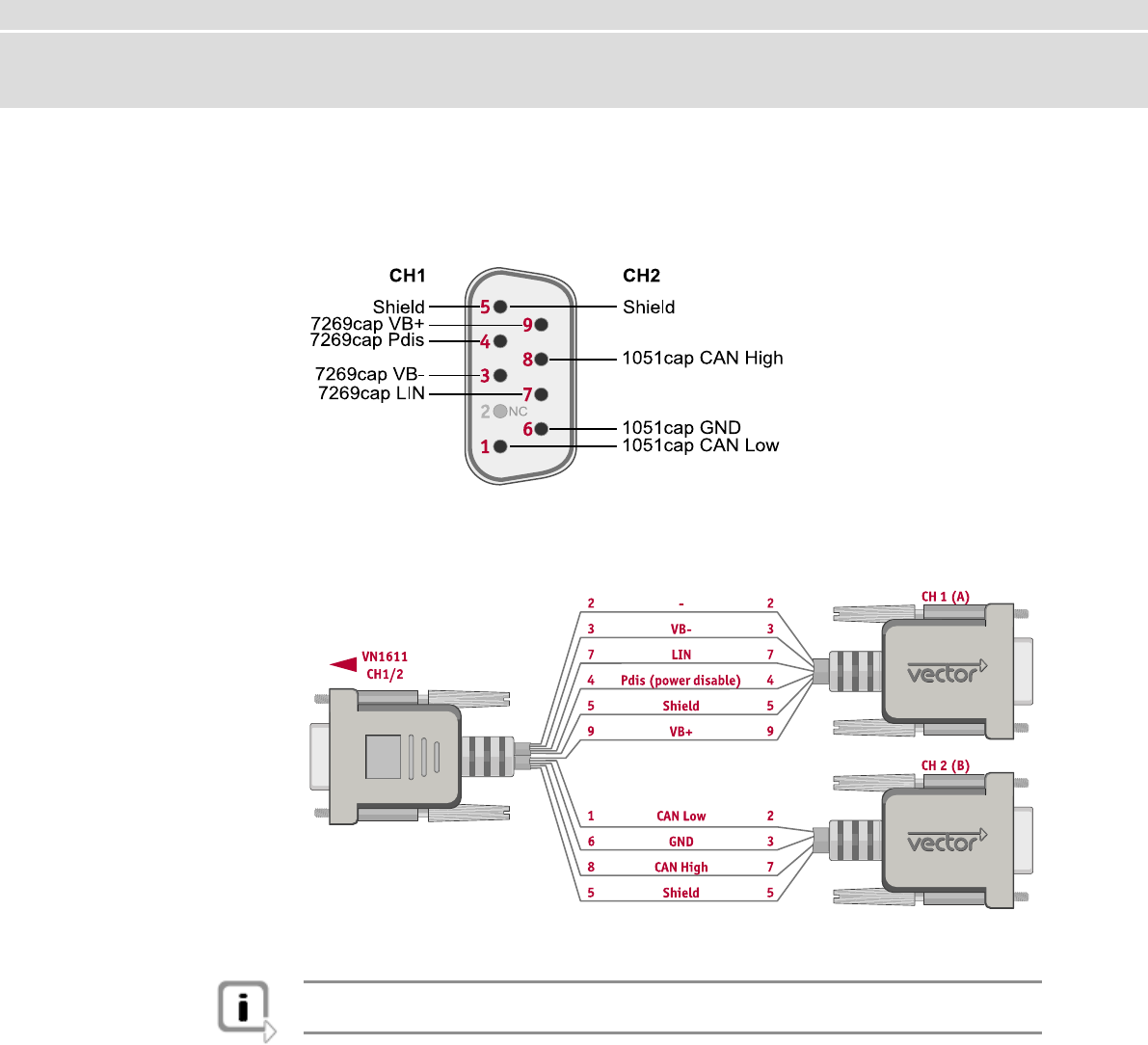

The pin assignment of the D-SUB9 connector (CH1 and CH2) is as follows:

CH1/CH2

Pdis: power disable

CAN/LIN Y cable

Use the CANcable 2Y to access both channels on separate D-SUB9 connectors (see

accessories manual, article number 05075).

Figure 6: CANcable 2Y connected to VN1611.

Note: If pin 4 (Pdis) is connected to pin 3 (VB-), the internal power supply is disabled.

In this case an external power supply is required at pin 9 (VB+).
