2.6 VN1630
2.6.1 Main Features
VN1630 features
The main features of the VN1630 interface are:
> 2x CAN high-speed 1051cap transceivers (capacitively decoupled)
> 2x additional plug-in locations for CAN/LINpiggies
> Fifth channel for dedicated digital-analog input/output tasks
> Software sync
> Hardware sync (via SYNCcableXL)

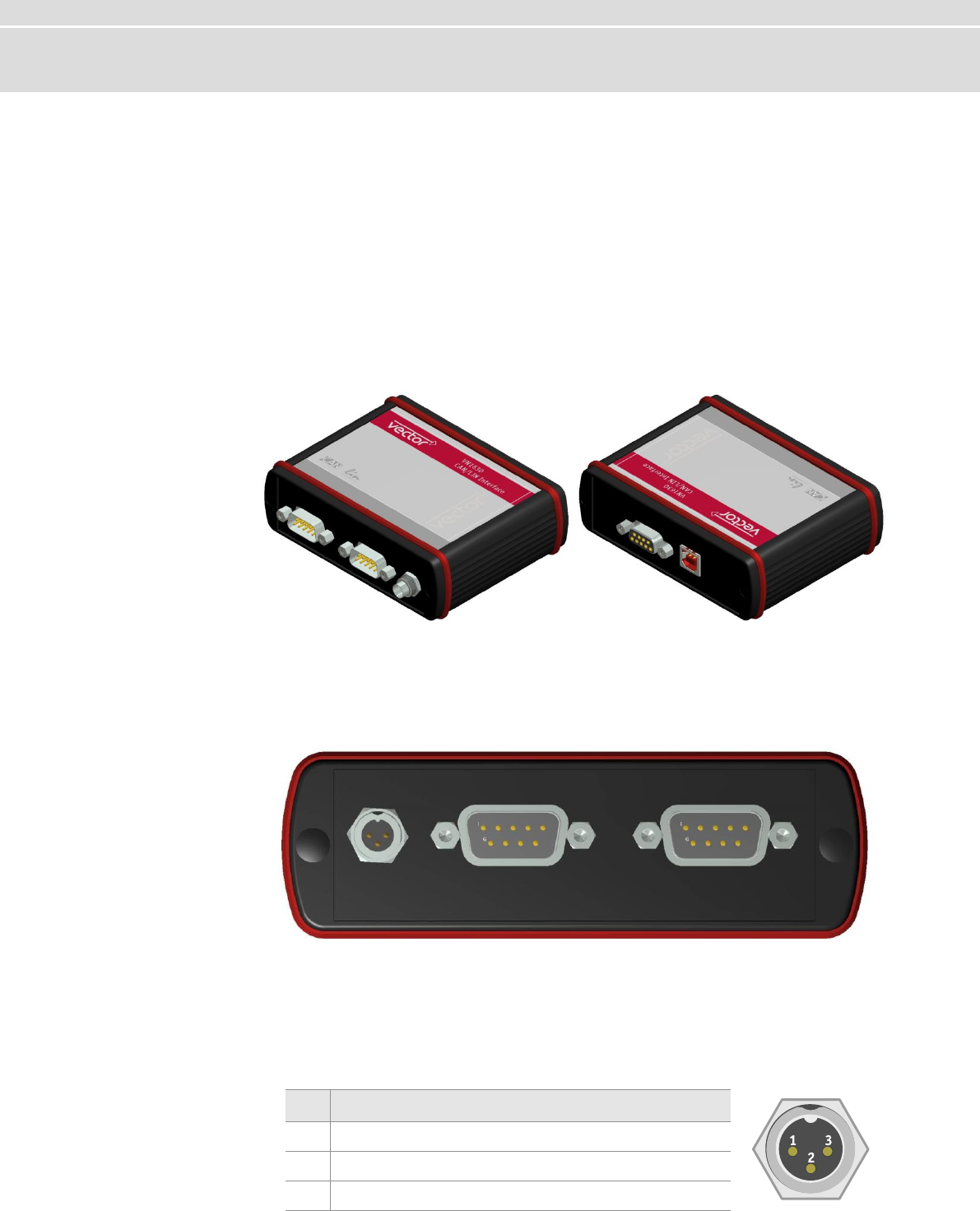

Figure 7: VN1630 CAN/LIN Interface.
2.6.2 Connectors Bus Side
Device connectors
Figure 8: VN1630 with 1x Sync and 2x D-SUB9.
> Binder connector (Sync)
This connector (Binder type 711) can be used for time synchronization of different
Vector devices. The sync connector is not intended to connect a power
supply.
Pin
Assignment
1
Not connected
2
Synchronization line
3
Ground
