Manual VN1600 Interface Family

CAN/LIN Y cable

Use the CANcable 2Y to access both channels on separate D-SUB9 connectors (see

accessories manual, article number 05075). The pin assignments of the D-SUB9

connectors depend on the used bus transceiver configuration inside the VN1630. A

list of available Piggybacks and their D-SUB9 pin assignments is included in the

accessories manual.

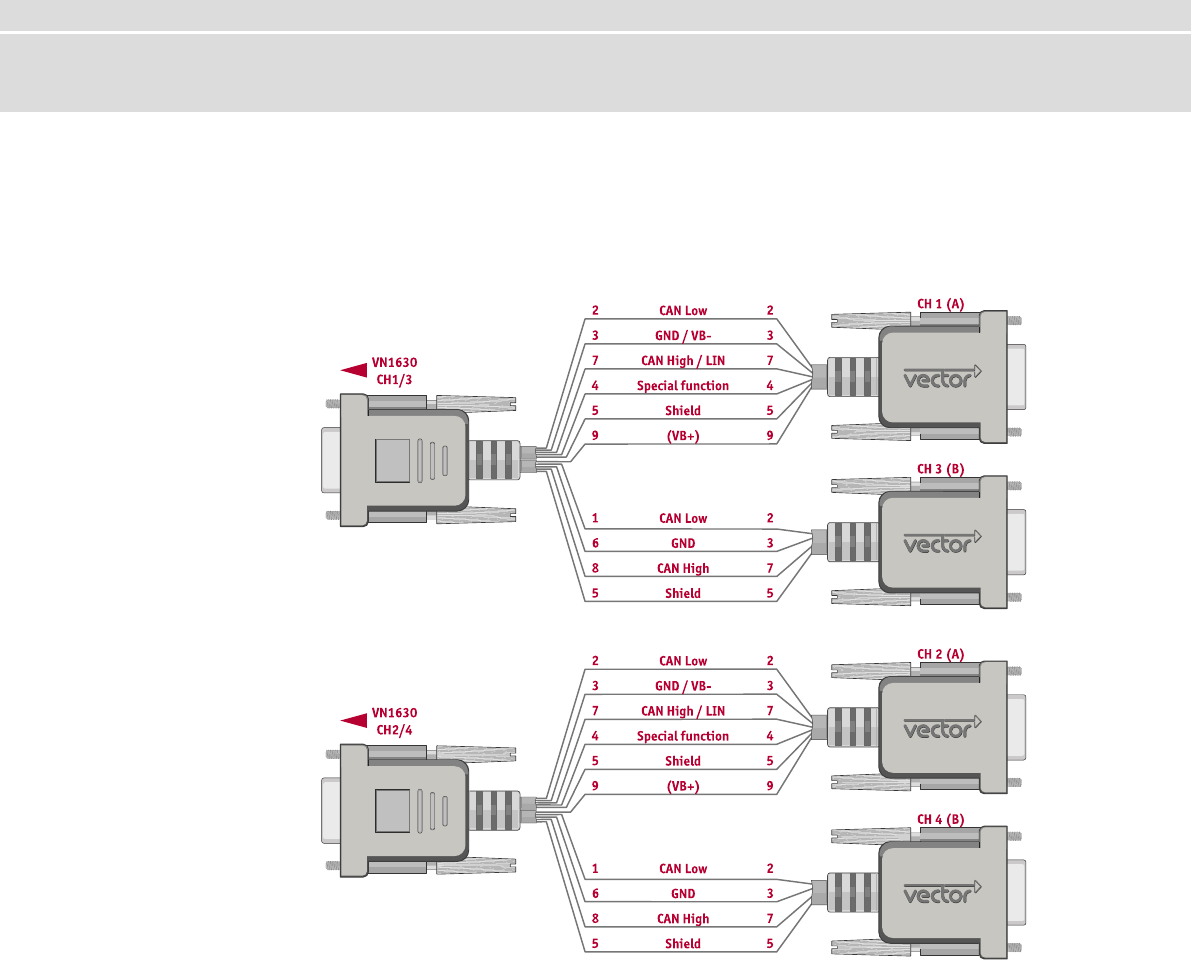

Figure 14: 2x CANcable 2Y connected to VN1630.
