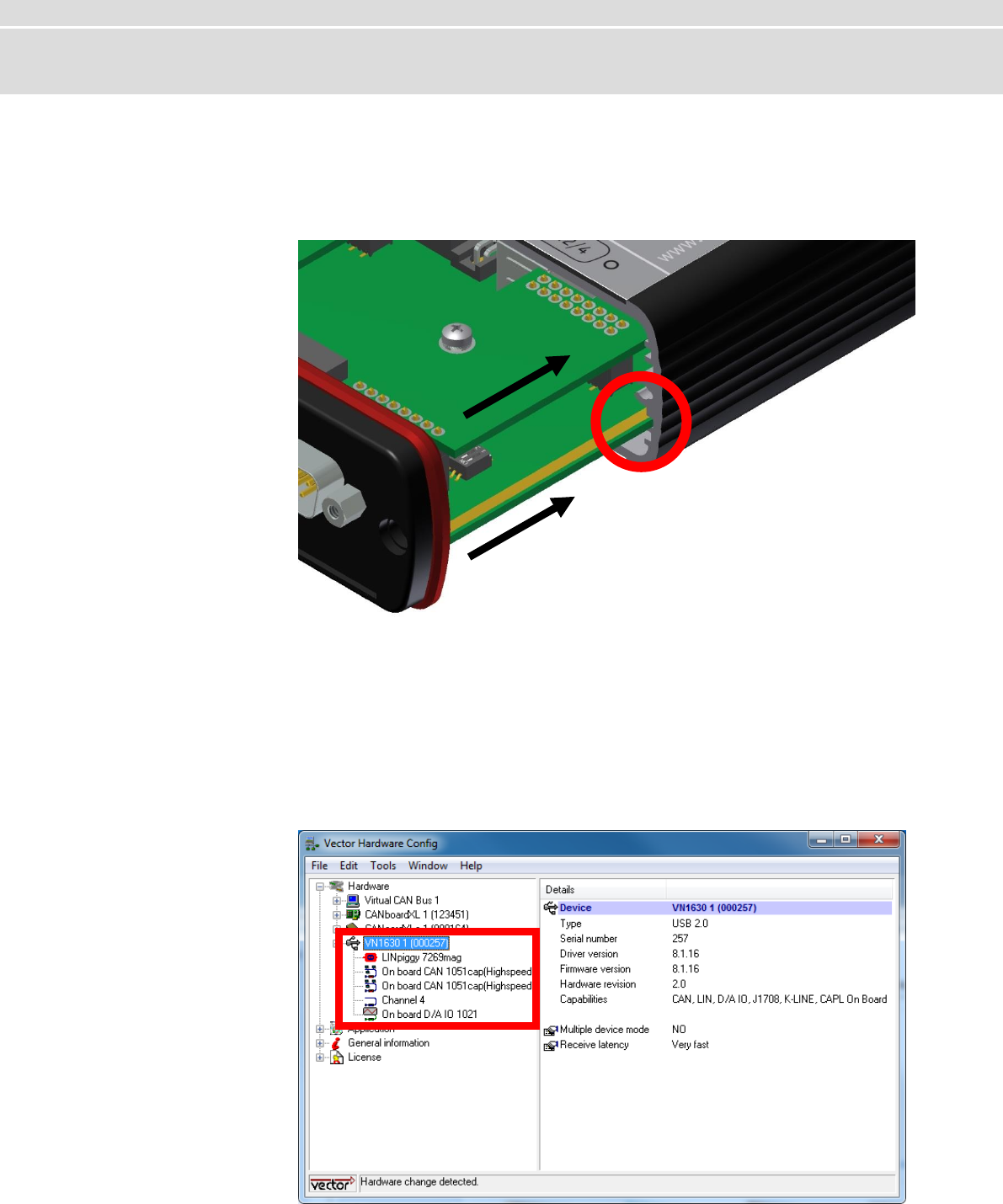

7. Place the VN1630 main board back in the housing. This operation involves

placing the housing on a table with its back side (side with the bar code) facing

upward. Then the main board with the Piggybacks facing upward is inserted into

the second guide rails.

Figure 21: Second guide rails.

8. It should be possible to slide the main board in the housing up to a few milli-

meters from the end without forcing it in. Close the housing by applying light

pressure and then secure it with the appropriate screw fasteners. The screws

should be secure but not excessively tight.

9. Please also attach the two black decorative caps.

10. Connect the VN1630 and the PC with the USB cable and check the bus

configuration in Vector Hardware Config.

Figure 22: Check inserted Piggybacks.
