2.8 VN1640

2.8.1 Main Features

VN1640 features

The main features of the VN1640 interface are:

> 4x plug-in locations for CAN/LINpiggies

> Fifth channel for dedicated digital-analog input/output tasks

> 5x D-SUB9 connectors

> Software sync

> Hardware sync (via SYNCcableXL)

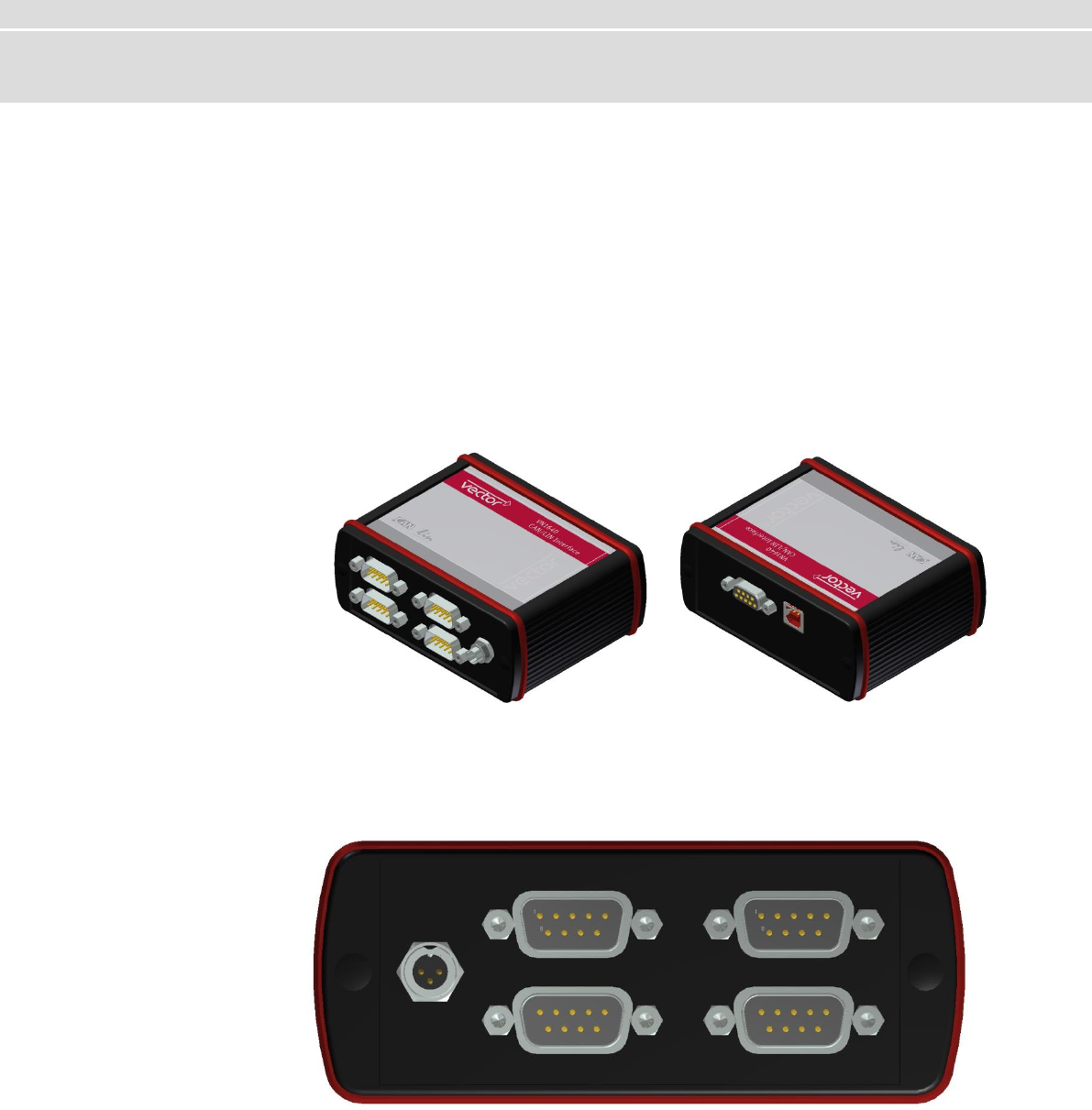

Figure 25: VN1640 CAN/LIN Interface.

2.8.2 Connectors Bus Side

Device connectors

Figure 26: VN1640 with 1x Sync and 4x D-SUB9.

> Binder connector (Sync)

This connector (Binder type 711) can be used for time synchronization of different

Vector devices. The sync connector is not intended to connect a power

supply.
