Pin
Assignment
1
Not connected
2
Synchronization line
3
Ground
> D-SUB9 (CH1…CH4)
The VN1640 has four D-SUB9 connectors, each assigned to a dedicated
Piggyback plug-in location. Further information on the pin assignment can be
found in section Pin Assignment CH1…CH4 on page 31.
2.8.3 Connectors USB Side
Device connectors

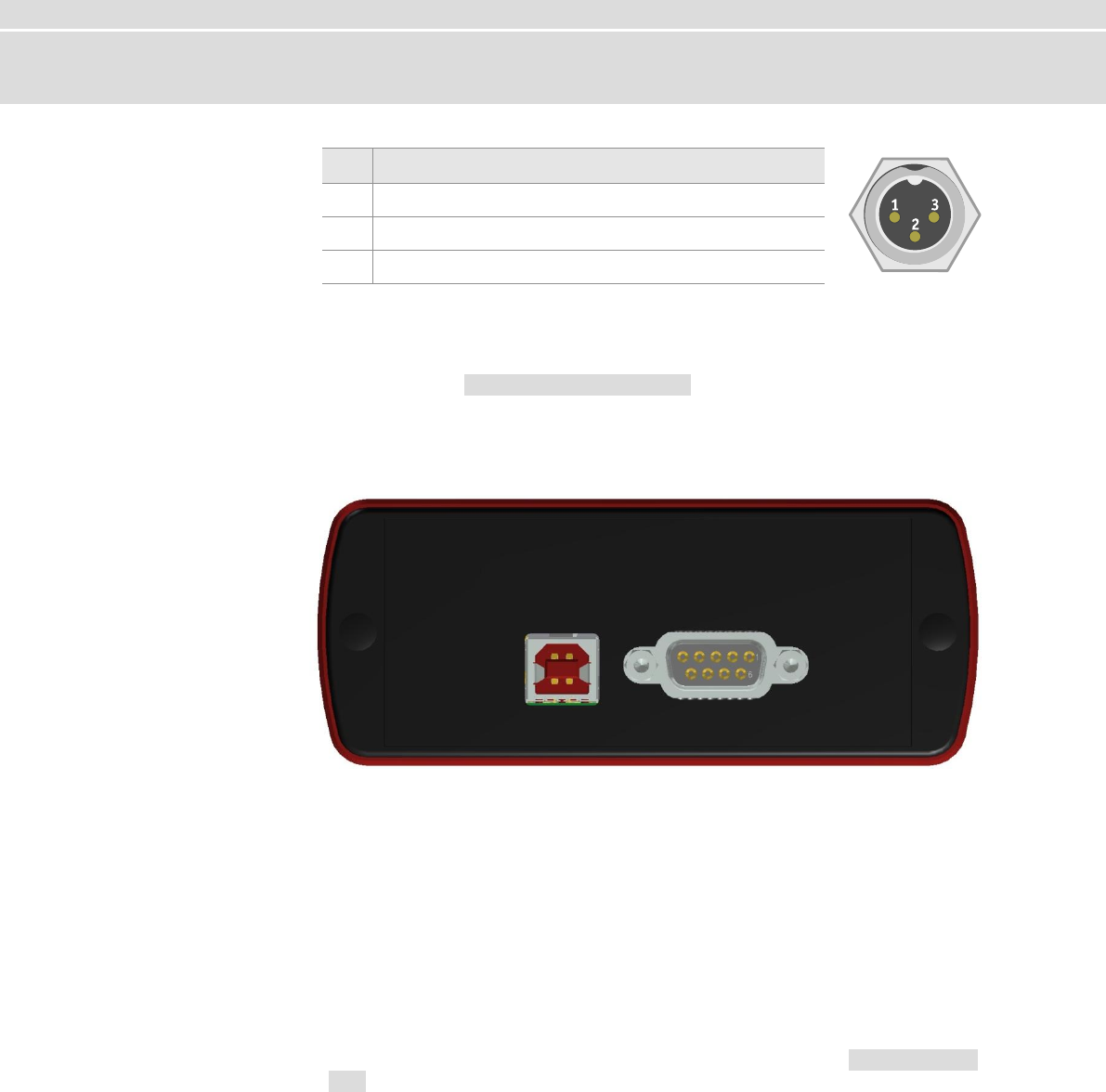

Figure 27: VN1640 with 1x USB and 1x D-SUB9.
> USB
Connect your PC and the VN1640 over USB to install and to use the device with
measurement applications (CANoe, CANalyzer). Use the USB2.0 compliant cable
found in the delivery (USB extension cables may generate faults between the PC
and the device). Connect the device directly to USB at your PC or use a USB hub
with its own power supply (self-powered). Depending on the used Piggyback, the
VN1640 requires the entire USB current (500 mA) which cannot be provided by a
bus-powered USB hub.
> D-SUB9 (CH5)
The VN1640 has a D-SUB9 connector (CH5) for dedicated digital-analog
input/output tasks. The pin assignment can be found in section Pin Assignment
CH5 on page 32.
