Further examples
The following tables show examples of other combinations:
1x CAN
CH1
CH2
CH3
CH4
CAN
-
-
-
1x LIN
CH1
CH2
CH3
CH4
LIN
-
-
-
1x LIN
1x CAN
CH1
CH2
CH3
CH4
LIN
CAN
-
-
1x LIN
1x CAN
CH1
CH2
CH3
CH4
-
LIN
-
CAN
2x LIN
1x CAN
CH1
CH2
CH3
CH4
LIN
LIN
CAN
-
2.8.5 Pin Assignment CH1…CH4
Assignment of the
D-SUB9 connectors
The pin assignments depend on the inserted Piggybacks. A list of available
Piggybacks and their D-SUB9 pin assignments can be found in the separate
accessories manual on the driver CD in \Documentation\Accessories
Example: CANpiggy 1041mag

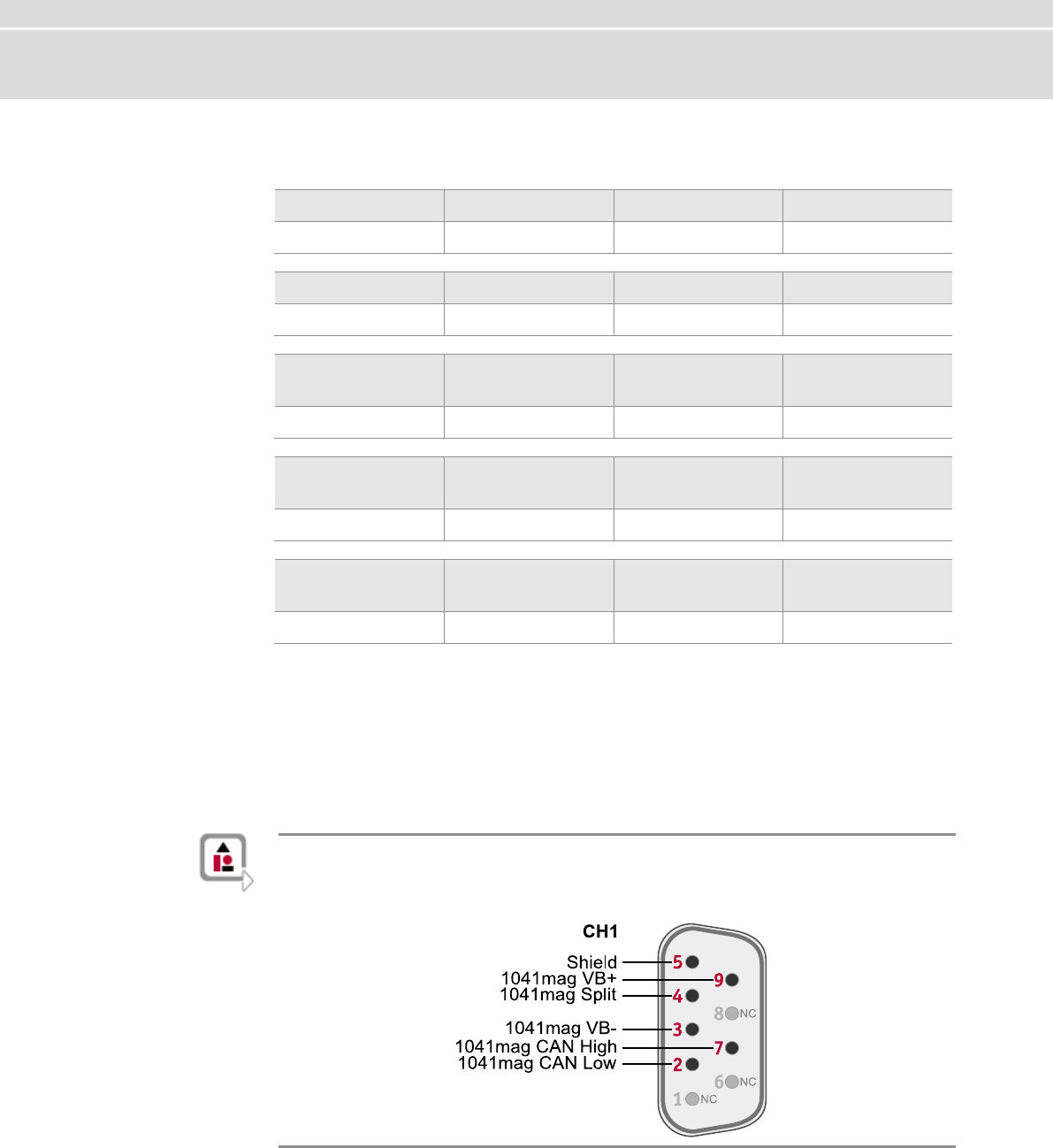

The following example shows the pin assignment of CH1 if a CANpiggy 1041mag is
inserted in the plug-in location 1:
