Manual VN1600 Interface Family
© Vector Informatik GmbH Version 2.0 - 32 -

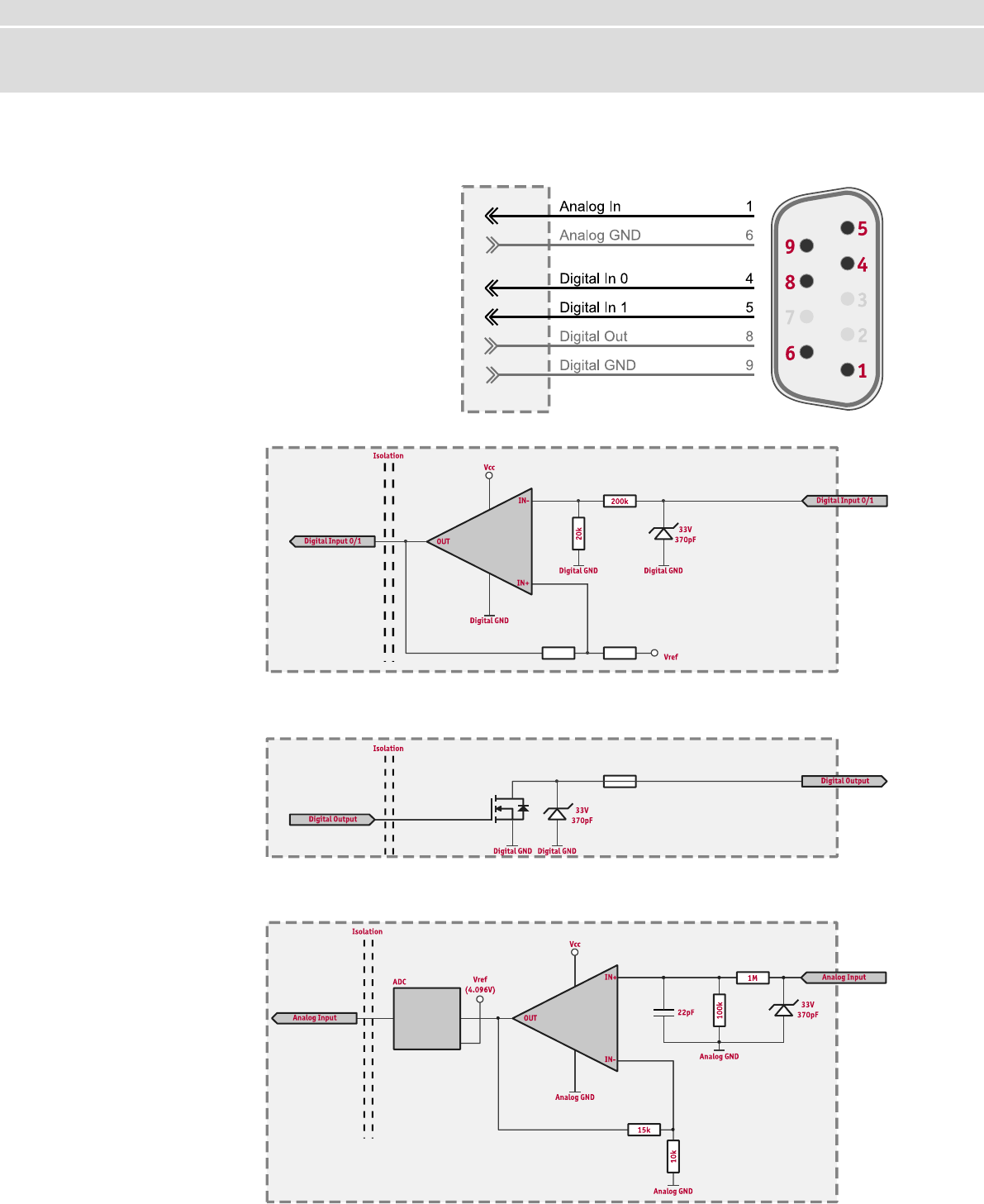

2.8.6 Pin Assignment CH5
Digital/analog IO
The pin assignment for
CH5 is as follows:
(1) Analog input
(2) -
(3) -
(4) Digital input 0
(5) Digital input 1
(6) Analog GND
(7) -
(8) Digital output
(9) Digital GND
Internal
interconnection of
digital input 0/1
Figure 29: Digital input 0/1.
Internal
interconnection of
digital output
Figure 30: Digital output.
Internal
interconnection of
analog input
Figure 31: Analog input.
