User Manual

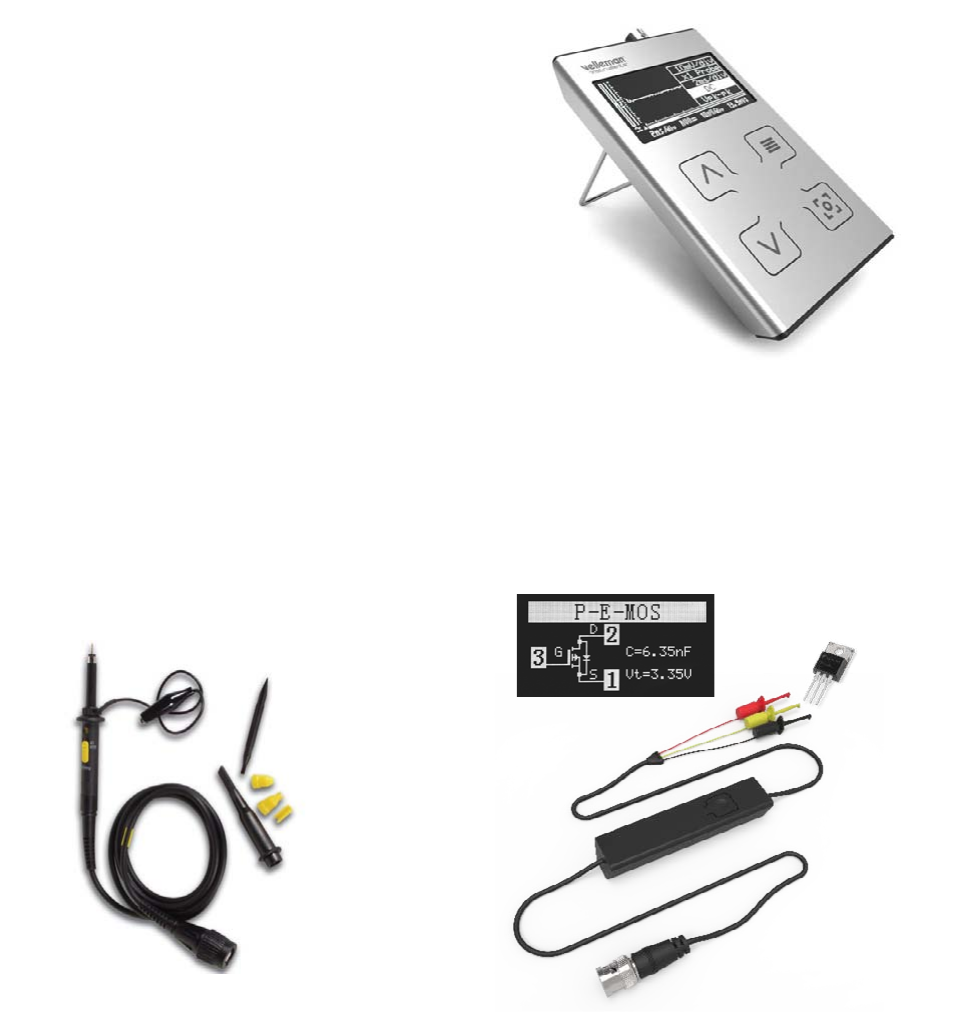

4HPS140MK2USER MANUAL
• 40 Mega samples/sec in real time
• bandwidth up to 10MHz
• full auto range option
• sensitivity down to 0.1mV
• signal markers for amplitude and time
• memory hold function
• optional:
- HPS141: component tester for pocket scope HPS140MK2
- HPSPR1: X10 measuring probe
- HPSP1: Velleman Instruments pouch
FEATURES
SPECIFICATIONS
• input range: 1mV to 20V / division in 14 steps
• input coupling: DC, AC and GND
• time base: 250ns to 1h per division
• readouts: DC, AC + DC,True RMS, dBm, Vpp, Min-Max. (±2.5%)
• white OLED display
• power supply: 4 x 1.5V AAA batteries (not incl.)
• operating time: up to 8 hours (on Alkaline batteries)
COMPONENT TESTER
HPS141
MEASURING PROBE FOR
VELLEMAN INSTRUMENTS
HPSPR1
