User Manual

5HPS140MK2USER MANUAL
FRONTPANEL
QUICK USE OF THE OSCILLOSCOPE
After turning ON, a start-up screen appears, also indicating the rmware build version. During this time,
some calibrations are performed, so it can take a few seconds before the oscilloscope is ready to use.
The scope always starts in full auto set-up mode. This mode can be used for most (repetitive) signals. Set
the input coupling to “DC” if very low frequencies or DC voltages are measured (see further).

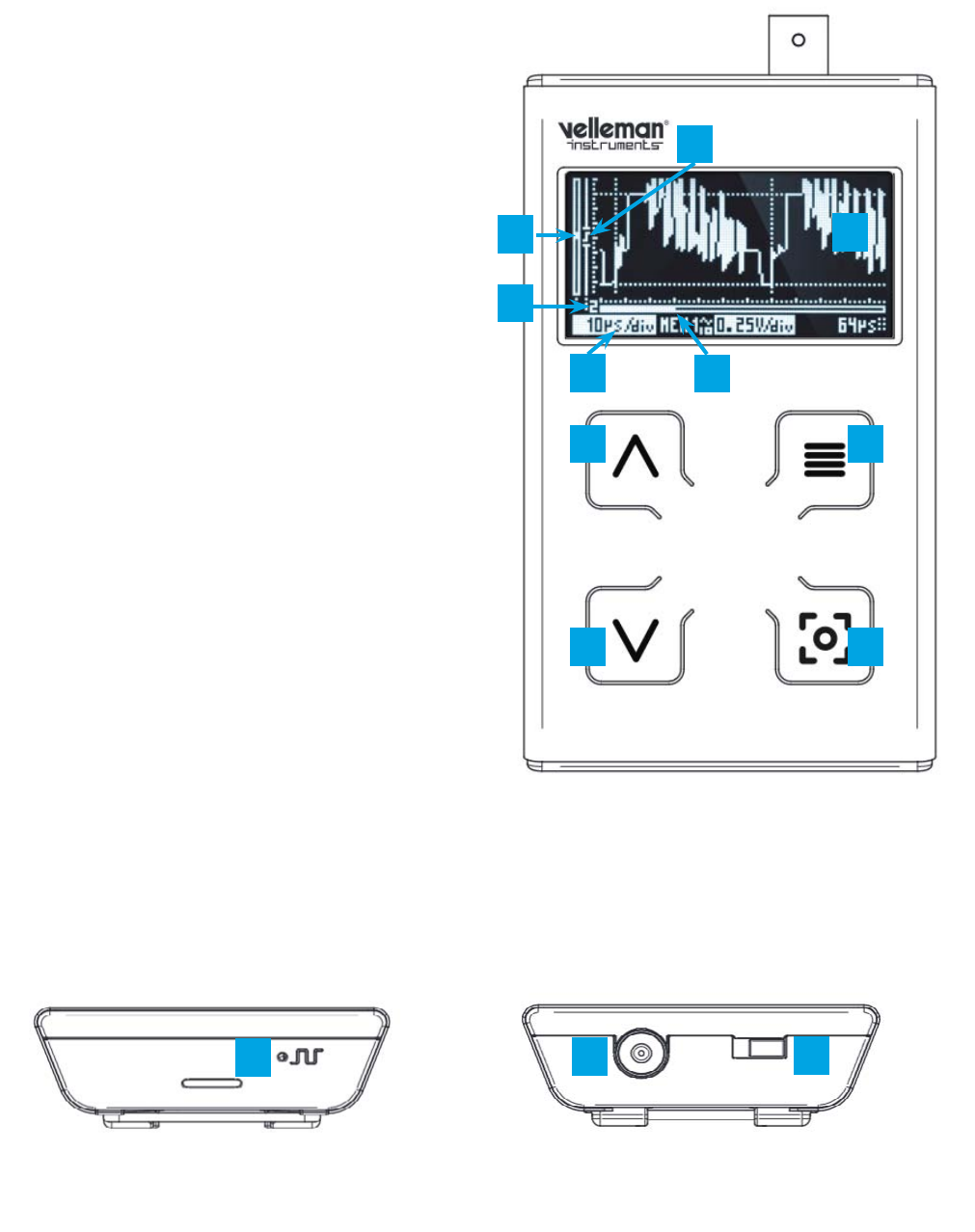

1. signal and menu display
2. menu button / menu selection up
3. up and down set buttons
4. hold button / menu selection down
5. parameter indicators
6. signal position indicators (X and Y scroll bar)
7. trigger level and slope indicators
8. last selected function indicator
1
2
3 4
5
6
7
8
9
10
3
6
11
9. on/off switch
10. BNC input connector: maximum input 100Vp!
11. X10 probe test signal
TOP AND BOTTOM
