User Manual

7HPS140MK2USER MANUAL

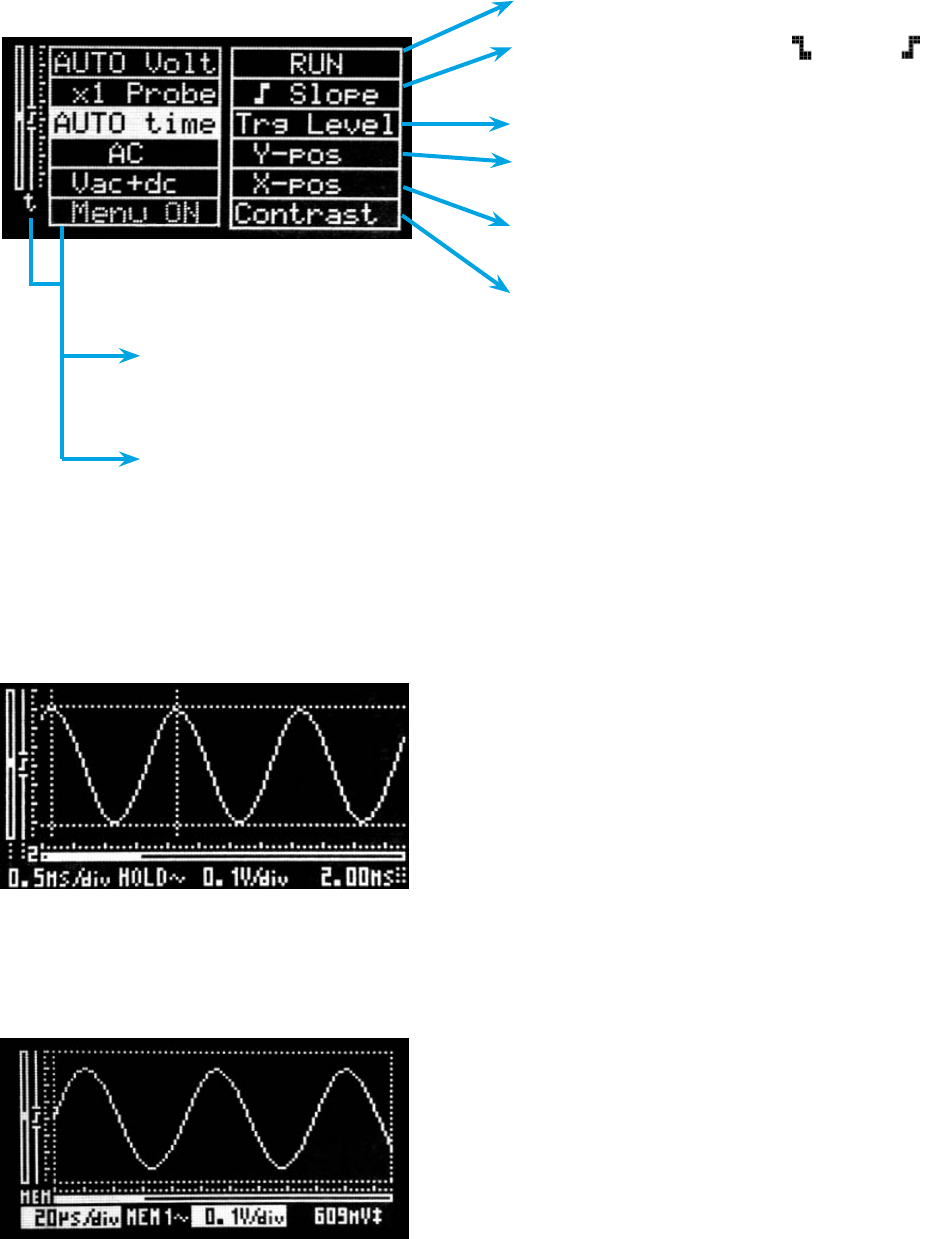

EXTENDED MENU
> Access by keeping the menu button pressed.
> Scroll in the menu by using the menu or hold button.
> Modify a selection by using the up and down buttons.
Select the desired trigger mode (run, normal).
Select the triggering at a falling or rising
edge of the input signal.
Adjust the trigger level.
Move the signal horizontally over the display
(X scroll bar).
*If MENU OFF is selected, then the short menu will be replaced with a fast selection:
pressing the menu button briey will switch between Volt (V) / Time (t) and Input coupling
selection
Move the signal vertically over the display
(Y scroll bar).
Increase or decrease the contrast until the desired
contrast is reached
*Select COMPONENT TESTER to use the component tester (HPS141). See p. 8 for a full
manual on this.
‘HOLD’ FUNCTION
The scope has two memories and one hold screen. The two memories are stored even after
power off. Press the ‘hold’-button briey to freeze the screen.
To store:
1. Press and keep the ‘hold’-button to store the frozen screen until MEM1 appears.
2. Your signal is stored in MEM1, if a signal was previous stored, this signal is moved to MEM2.
3. Press the ‘hold’-button briey to release the screen for measurements.
