USE THE MARKERS AND RECALL THE MEMORY

Press the ‘hold’-button briey.

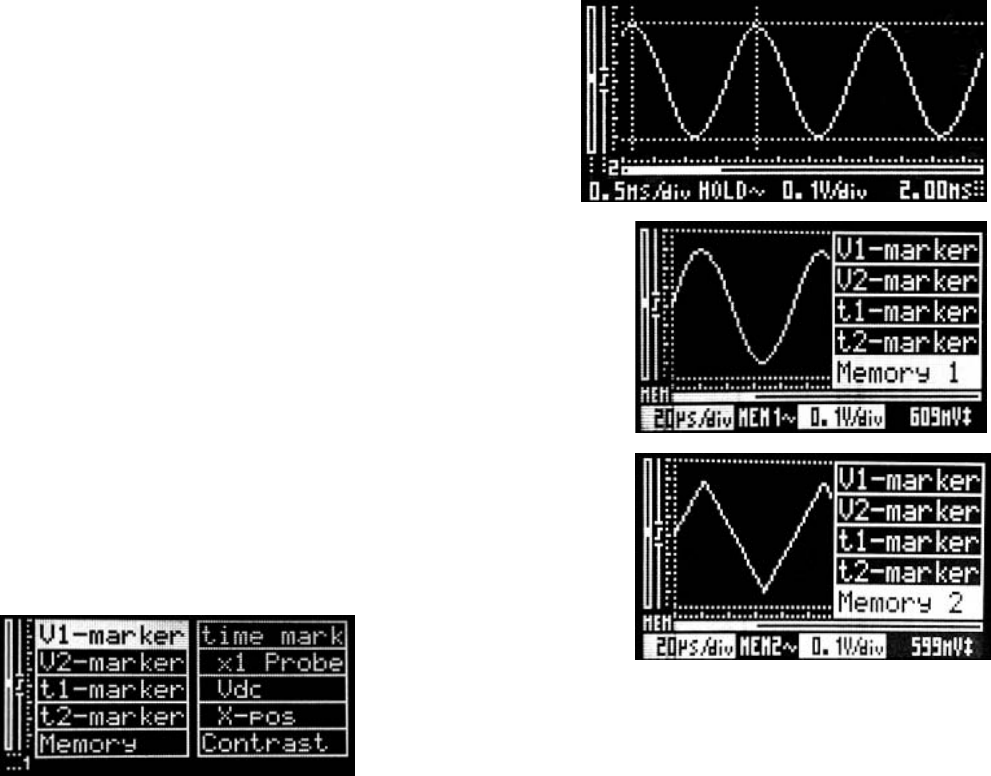

Now two menu screens can be recalled, one is short and the other is extended.

Note: If MENU OFF is selected, then the short menu is

replaced by quick switching between the markers, V1–

V2, t1—t2

1. Press the menu button briey to call the short menu.

2. Keep the menu button pressed to call the extended menu.

3. Press the menu or hold buttons briey to scroll in the menu.

4. Use the up or down buttons to change or selected an item.

Using the short menu you can move the signal markers for volt-

age and time. To recall a memory (if used) select “memory”, then

press up or down to switch between:

Memory 1 > Memory 2 > Current Frozen screen…

Using the extended menu you can additionally:

• change the ‘time’ marker readout setting (time or frequency)

• set the “x10” probe readout

• select the desired voltage readout

• move the signal in X position

• change the display contrast
