The code can be set for a transmitter/receiver combination. There is a row of 9
coding islands for setting the code. The closest is near the IC legs. The code can
be set by connecting one or more of these coding islands to a neighbouring -
island or a neighbouring + island using a jumper, or by not connecting them at all
(leaving open).
 Note: certain points cannot be connected to ‘+’

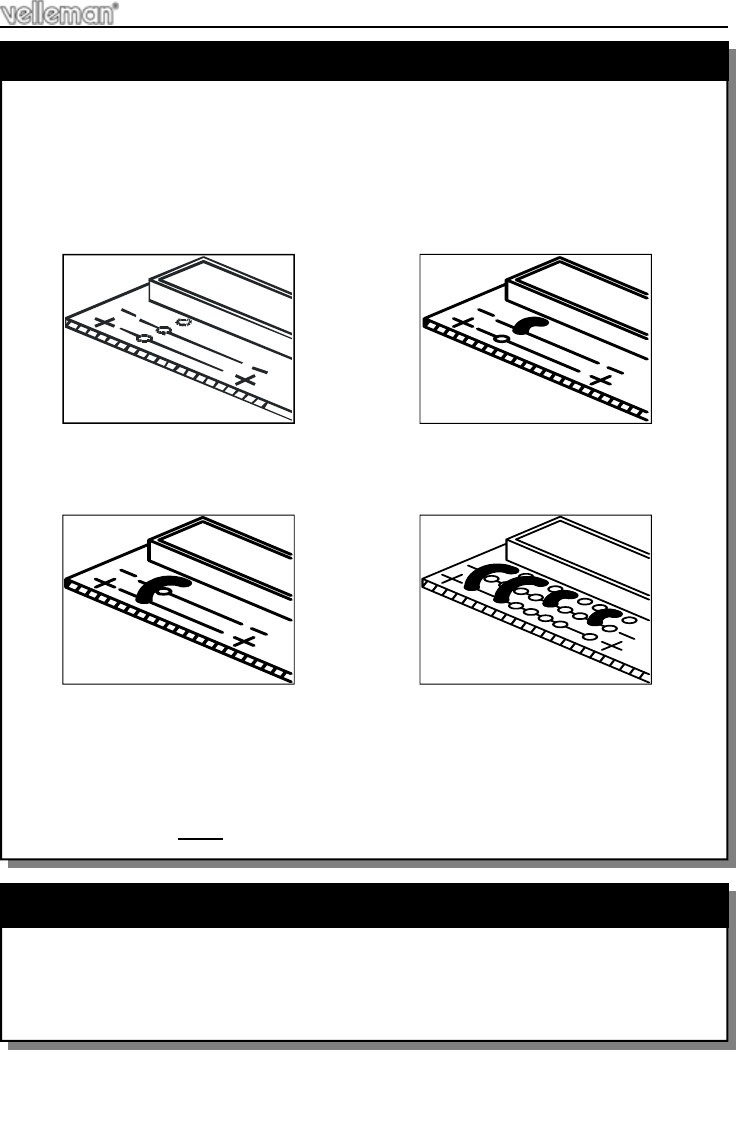

15. Create your code
No connection Code connection to ‘-’
Code connection to ‘+’ Example of a possible code
Place the PCB in its housing, check for the position of the battery lips. The cover
may only be fitted after mounting and adjustment.
Place the 12V battery (type V23GA) in the housing (check the polarity).
16. Final assembly
Construction
